ForteMAXDispensingSystemAddendum Safety 8 © 2023 Nordson Corpo ration 2.9.2 Emergency Shutdown Situations As a minimum, ac tivate the EMO in the following situations: WARNING! In an emergency, failure to completely s…
ForteMAXDispensingSystemAddendum Safety
© 2023 Nordson Corporation 7
2.9 Emergency Shutdown
To shutdown the forte max in an emergency:
In the event of an emergency or malfunction, press the EMO button. The Forte MAX has two EMO
buttons. The EMO buttons are the large red buttons located on the front panel and the rear of the
dispensing system (Figure 2-1). Activating the EMO vents all pressure in the pneumatic system and cuts
power to all components except the computer, camera, interior light, and light beacon. Refer to the Forte
Dispensing System Installation, Operations, and Maintenance Manual if necessary.
TIP
If the operator or technician is unable to reach the EMO button, the main circuit
breaker (Figure 2-1), which is located on the back of the system, can be used for
emergency shutdown.
Front Vi
ew
Rear V
iew
Item Description
1 Front EMO Button
2 EMO Guard
3 Rear EMO Button and Guard
4 Main Circuit Breaker (Rear)

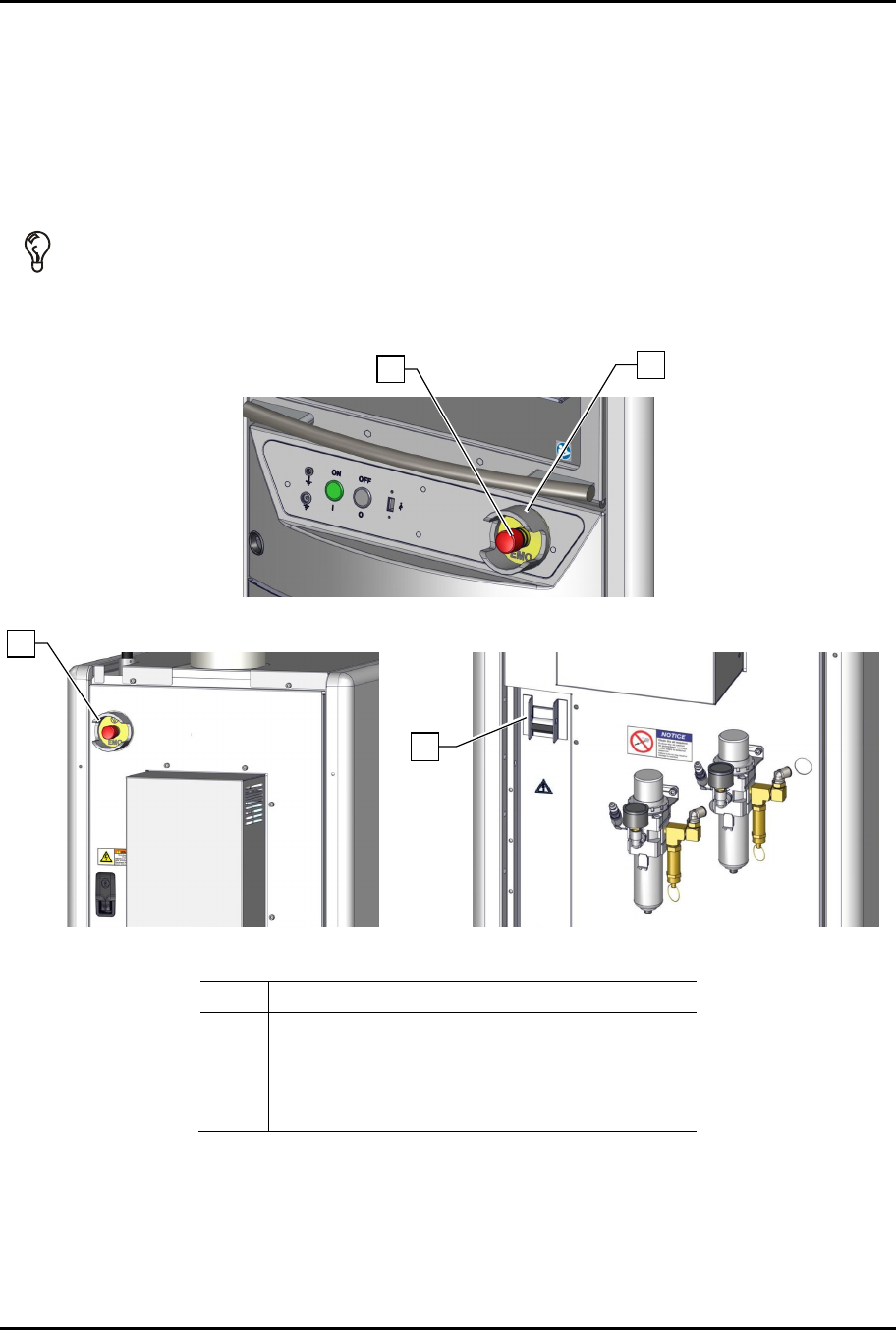

Figure 2-1 EMO/Main Circuit Breaker Locations
3
4
1
2
ForteMAXDispensingSystemAddendum Safety
8 © 2023 Nordson Corporation
2.9.2 Emergency Shutdown Situations
As a minimum, activate the EMO in the following situations:
WARNING!
In an emergency, failure to completely shut down power to the dispensing system
with the EMO can cause serious injury to the user and/or damage to the
dispensing system.
• If anyone is in immediate danger of being injured by moving parts, hazardous materials, or
electrical shock.
• If valuable dispensing system components or the workpieces are in danger of
being damaged.
2.9.3 Emergency Shutdown Recovery
WARNING!
Do not restart the dispensing operation until the condition that caused the
emergency shutdown has been corrected. Failure to comply could cause serious
injury to the user and/or serious damage to the dispensing system.
?
NOTE
If the main circuit breaker has been tripped, you will need to restart the dispensing
system. Refer to the Forte Dispensing System Installation, Operations, and Maintenance
Manual for powering on the dispensing system.
To recover after an emergency shutdown:
1. Locate and remedy the cause of the emergency shutdown. Refer to the Forte Dispensing
System Installation, Operations, and Maintenance Manual for troubleshooting.
2. If applicable, close the dispensing area hatch.
3. Turn the EMO knob clockwise until it pops back into position.
4. Press the ON (I) button on the front panel.
5. Restart the dispensing program.
2.10 Interlock
Refer to the Forte Dispensing System Installation, Operations, and Maintenance Manual for interlock
functionality.
ForteMAXDispensingSystemAddendum Safety
© 2023 Nordson Corporation 9
2.11 Service Shutdown
Before performing service or parts replacement, shutdown the dispensing system for service as follows:
1. Perform a service shutdown for the Forte Dispensing System. Refer to the Forte Dispensing
System Installation, Operations, and Maintenance Manual.
WARNING!
Before performing any servicing or parts replacement, the system must be
shutdown for service. Failure to do so could cause serious injury to the user
and/or serious damage to the dispensing system.
2. Perform a “Lockout/Tagout of Electrical and Pneumatic Energy” for the Forte Dispensing
System, see 2.12 Lockout/Tagout of Electrical and Pneumatic Energy.
2.12 Lockout/Tagout of Electrical and Pneumatic Energy
Refer to the Forte Dispensing System Installation, Operations, and Maintenance Manual for
Lockout/Tagout (LOTO) of electrical and pneumatic procedures for the Forte Dispensing System.
