ForteMAXDispensingSystemAddendum Recipe Creation 44 © 2023 Nordson Corpo ration 7. Click on Done when finished. 8. The line instruction will appear in the recipe tree (Figure 4-39). > The Properties Panel on the r…
ForteMAXDispensingSystemAddendum Recipe Creation
© 2023 Nordson Corporation 43
4.5.1.2 Adding Dispense Instructions
In this example, we will define five (5) line nodes to surround one box and nine dots inside the box. We
will also add pass blocks.
To add the line:
1. Make sure the pattern you created is selected in the Recipe Tree.
2. Select Line from the Instruction Panel.
> The Line Instruction Wizard opens (Figure 4-37).
3. Jog the camera crosshairs to the first line point and click Add.
4. Repeat Step 3 until all the nodes have been defined.
5. Click on Next.
> You will be prompted to set the line properties.

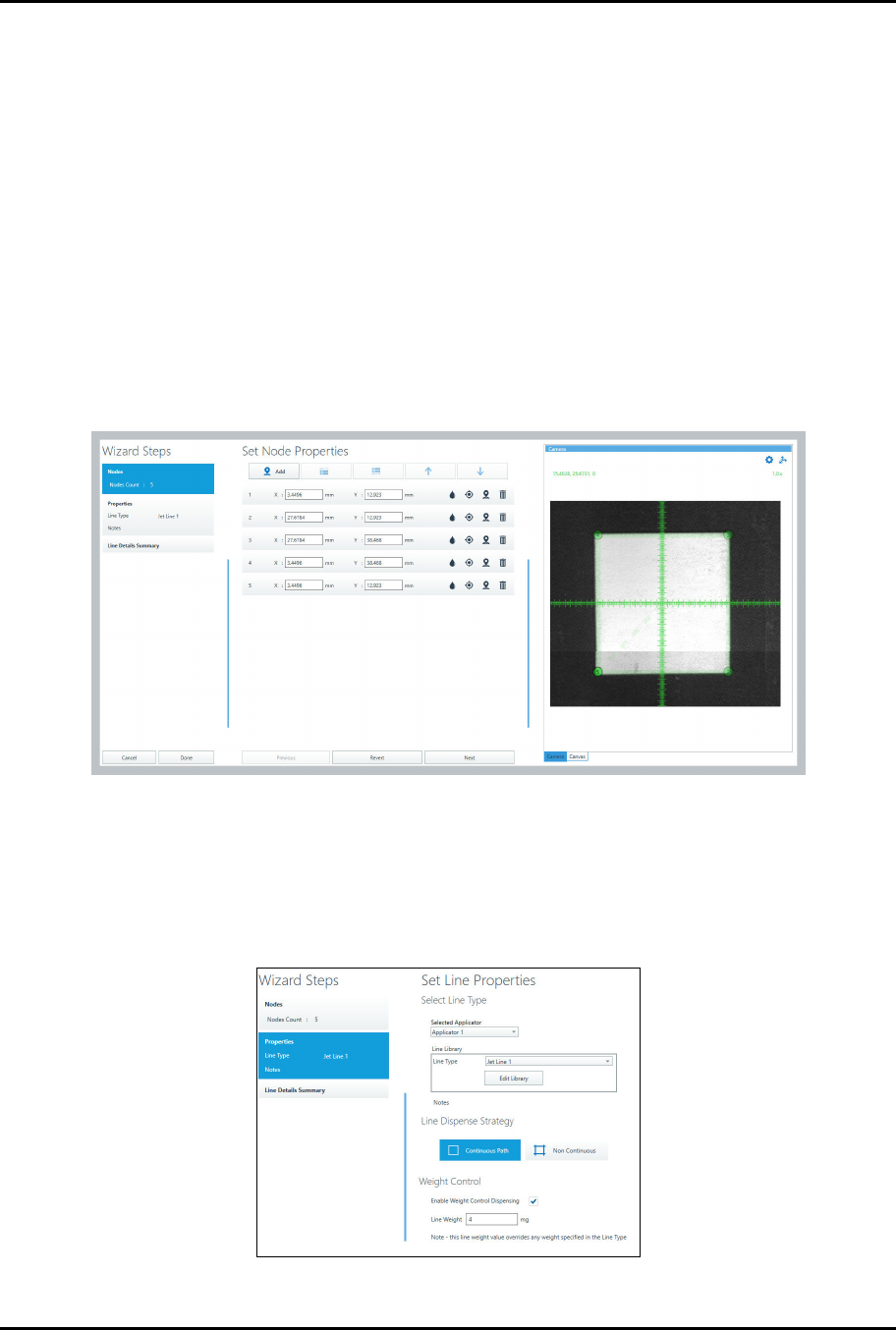

Figure 4-37 Line Instruction Wizard – Set Node Properties
6. Select the Applicator, Line Type, Dispense Strategy and Weight Control (Figure 4-38).
> Refer to the Canvas Dispensing Software User Guide if necessary.
?
NOTE
You must select which applicator will dispense. In this case, Applicator 1 will
dispense the lines.
Figure 4-38 Line Instruction Wizard – Set Line Properties
ForteMAXDispensingSystemAddendum Recipe Creation
44 © 2023 Nordson Corporation
7. Click on Done when finished.
8. The line instruction will appear in the recipe tree (Figure 4-39).

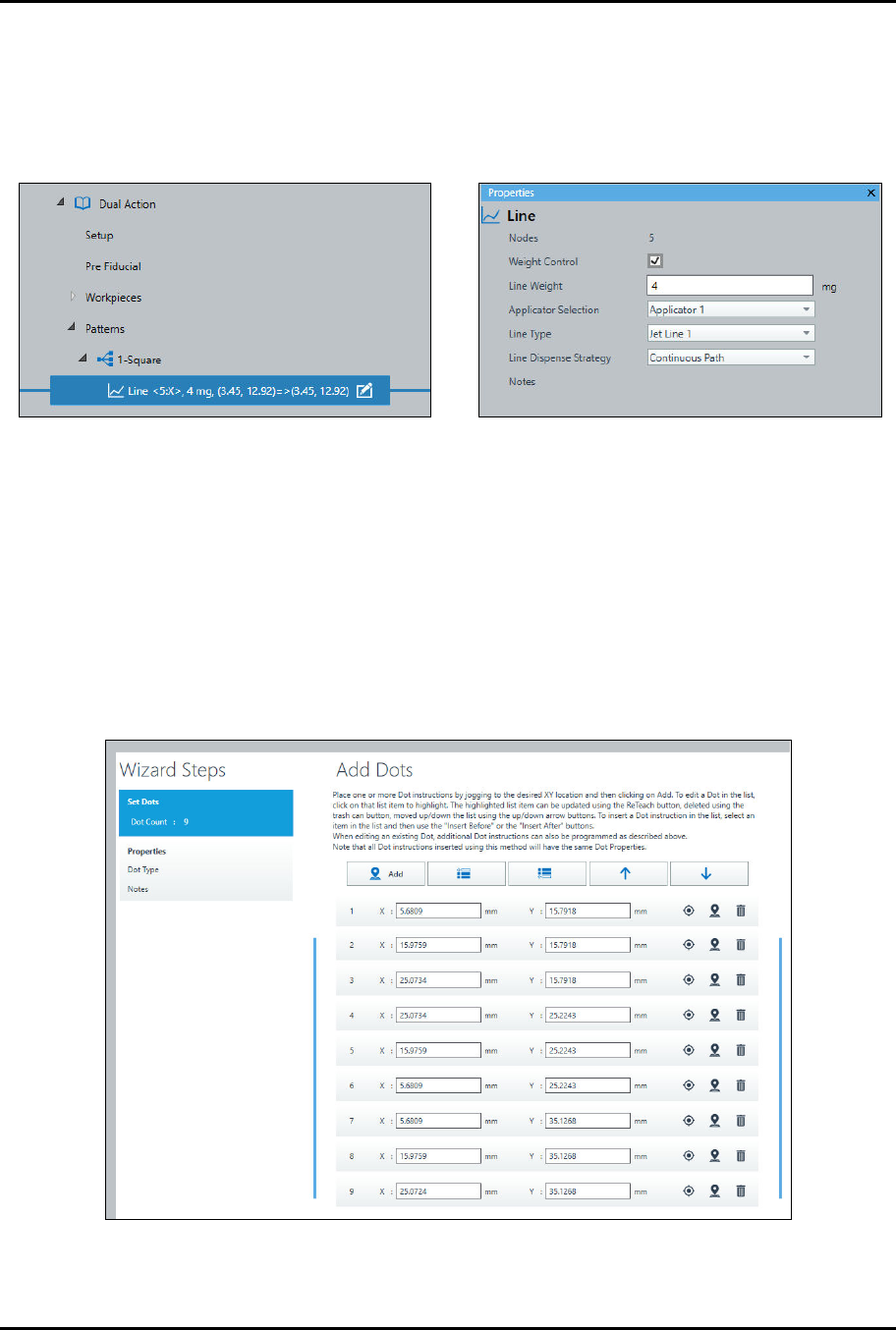

> The Properties Panel on the right of the screen will display the line properties when the
line is selected in the Recipe Tree. Note that the line weight, selected applicator, line
type, and dispense strategy is displayed in the Properties Panel (Figure 4-40).
Figur
e
4
-
39
R
e
c
i
p
e
T
r
e
e
Figur
e
4
-
40
L
i
n
e
P
r
o
p
e
r
t
i
e
s
To add the dots:
1. Select Dot from the Instruction Panel.
> The Dot Instruction Wizard opens (Figure 4-41).
2. Jog the camera crosshairs to the first dot location and click Add.
3. Repeat Step 2 for the remaining dots.
4. When all dots have been added, click on Next.
> You will be prompted to set the dot properties.
Figure 4-41 Dot Instruction Wizard – Add Dots
ForteMAXDispensingSystemAddendum Recipe Creation
© 2023 Nordson Corporation 45
5. Select Applicator 2 and the dot type (Figure 4-42).
> In this example, we are not using weight control dots.
Figure 4-42 Dot Instruction Wizard – Set Dot Properties
6. Select Done when finished.
?
NOTE
Adding pass blocks eliminate the repetitive switching between Valve 1 and Valve 2
dispensing. All IntelliJet dispensing (lines) will dispense on Pass 1. All DV-8000 (dots)
dispensing will dispense on Pass 2.
To add pass blocks:
1. Select the pattern name in the Recipe Tree and click on Pass Block.
> A Pass Block 1 instruction will be added to the recipe (Figure 4-43).
> When an instruction is added, the instruction is inserted below the selected item.
2. Select the line instruction in the Recipe Tree and click on Pass Block.
> A Pass Block 2 instruction will be added to the recipe.
Figure 4-43 Recipe Tree – Pass Blocks
