ForteMAXDispensingSystemAddendum Installation and Setup
18 © 2023 Nordson Corporation
11. Install the slide bracket in the desired position and loosely tighten the screws (Figure 3-11).
> The standard slide bracket will be installed in Position 0 because the valve pitch is
50 mm (Table 3-1).

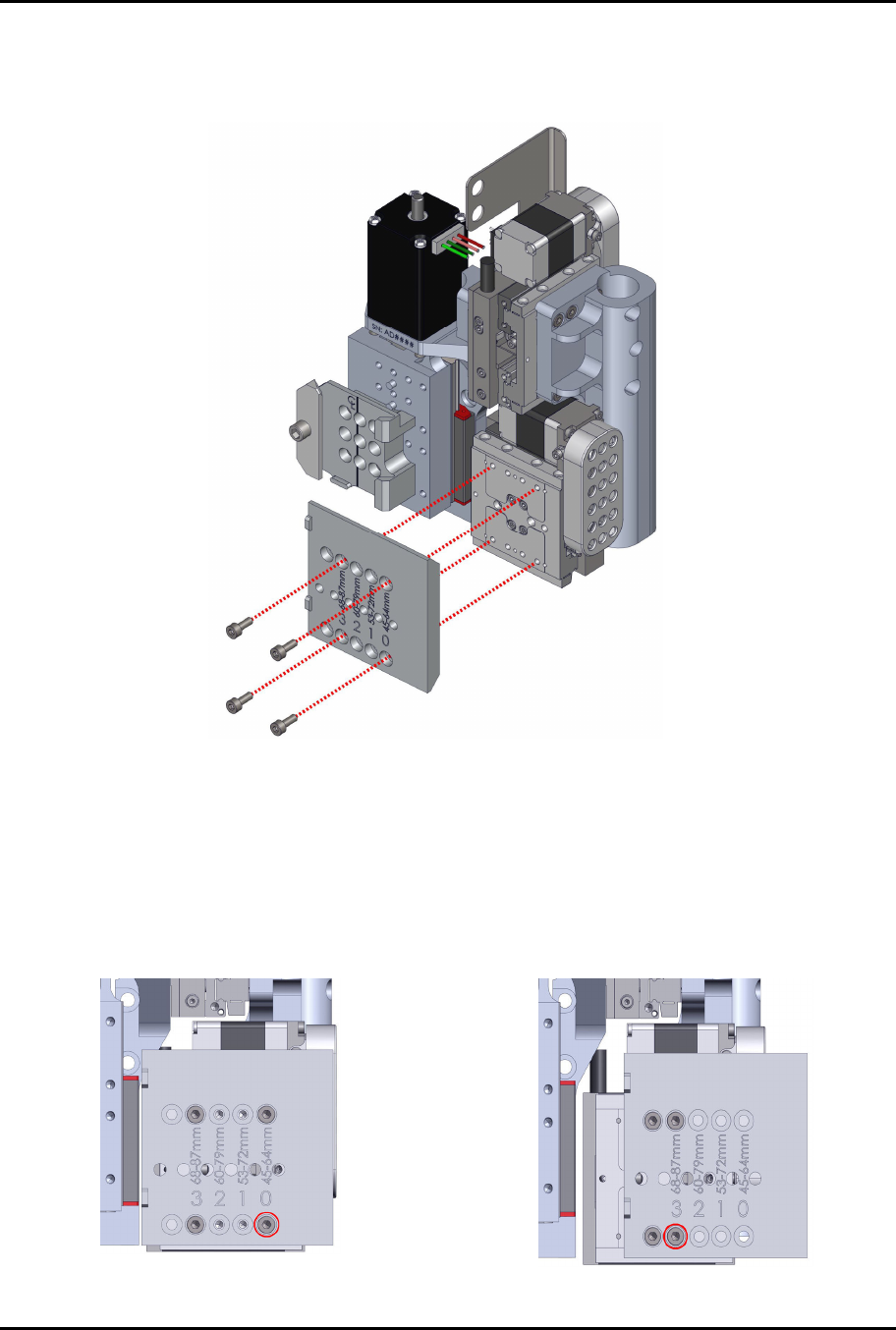

Figure 3-11 Installing the Slide Bracket
12. While applying a slight downward pressure on the slide bracket so that it is resting, and in
alignment with the alignment length in the back, torque the four (4) screws to 1.3 Nm
(12 in-lbs).
> Figure 3-12 and Figure 3-13 show the slide bracket in Position 0 and Position 3.
> As stated in 3.5 Slide Bracket Positions, the slide bracket position depends on the valve
pitch range (
Figure 3-3 and Figure 3-4).
Figure
3
-
12
S
l
i
d
e
B
r
a
c
k
e
t
i
n
P
o
s
i
t
i
o
n
0
Fi
g
ure
3
-
13
S
l
i
d
e
B
r
a
c
k
e
t
i
n
P
o
s
i
t
i
o
n
3
ForteMAXDispensingSystemAddendum Installation and Setup
© 2023 Nordson Corporation 19
13. Replace the right dovetail assembly and loosely tighten the dovetail mounting screw
(Figure 3-14).
> Do not tighten the dovetail mounting screw all the way. The mounting screw will be
tightened after both valves have been installed and the distance between the valves
has been verified.
Item Description
1 Dovetail Mounting Screw
2 Dovetail Side Screw
3 Right Dovetail Assembly
4 Standard Slide Bracket
Figure 3-14 Installing the Right Dovetail Assembly
14. Adjust the conveyor width to accommodate the board size.
15. Adjust the lift tables and clamps so that the board does not move during programming.
16. Go to Step 8 to Home the Forte MAX bracket.
17. Install Valve 1 into the Valve 1 dovetail bracket.
18. Install Valve 2 into the Valve 2 dovetail bracket and tighten the dovetail side screw to
secure the valve (Figure 3-14).
> The dovetail mounting screw (top screw) should be loose so the dovetail can be moved
for final pitch adjustment.
4
3
1
2
ForteMAXDispensingSystemAddendum Installation and Setup
20 © 2023 Nordson Corporation

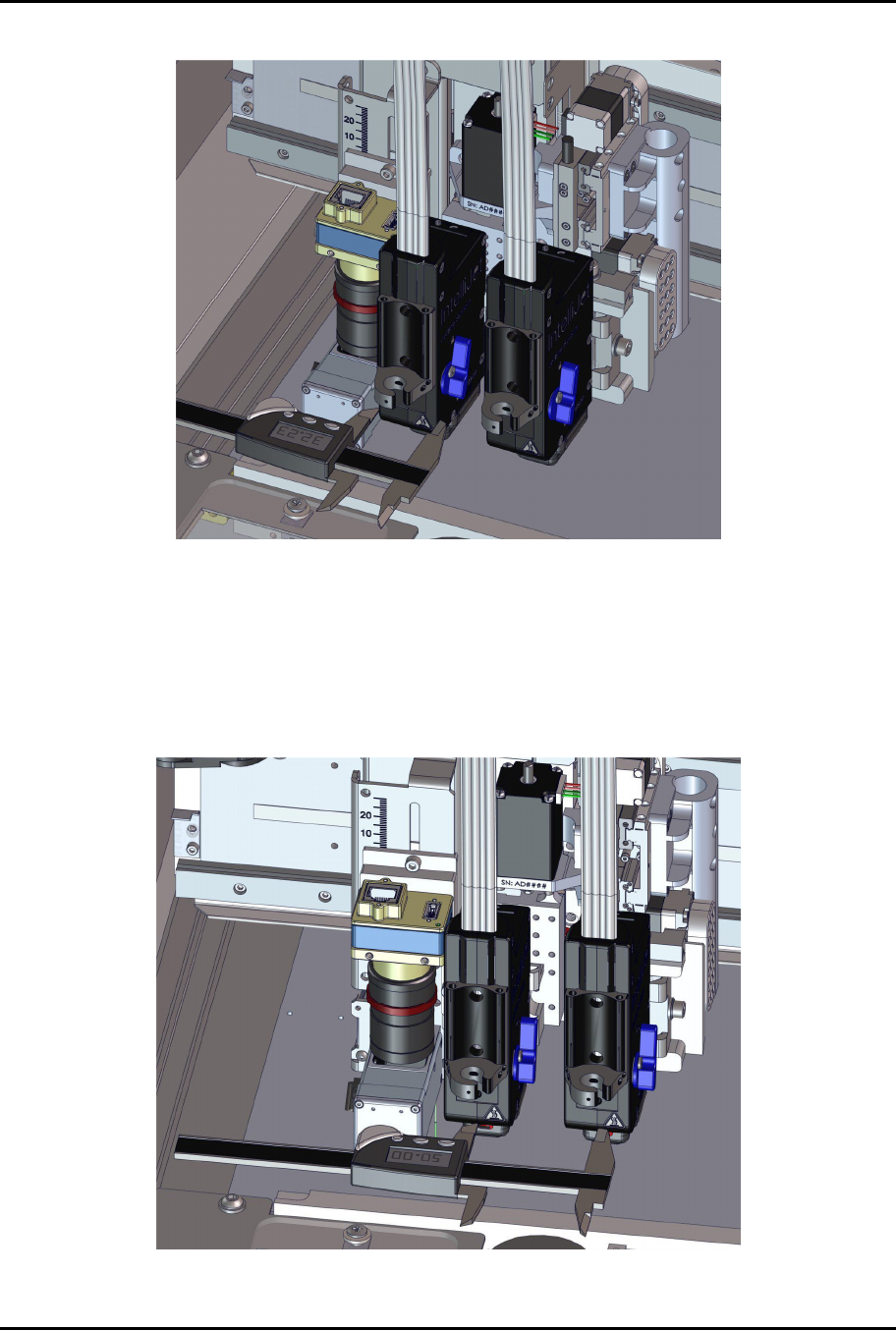

19. Using a digital caliper, measure the width of Valve 1 (Figure 3-15).
Figure 3-15 Measure Width of Valve 1
20. Zero the caliper and set the caliper to the intended pitch.
> In this example, the intended pitch is 50 mm.
> The caliper is now set to include Valve 1 and the pitch between Valve 1 and Valve 2.
21. Move Valve 2 dovetail bracket until distance between the Valve 1 and Valve 2 center lines
match the pitch on the caliper (Figure 3-16).
Figure 3-16 Set Caliper to Intended Pitch
