ForteMAXDispensingSystemAddendum Maintenance © 2023 Nordson Corporation 61 19. Grease the four (4) Y linear bearing by angli ng the syringe into the bore and injecting MICROLUBE GL 262 gre ase in to the opening on t …
ForteMAXDispensingSystemAddendum Maintenance
60 © 2023 Nordson Corporation
17. Grease the X radial bearing by inserting the syringe through the hole and injecting a small
amount of MICROLUBE GL 262 grease (Figure 5-10).
Figure 5-10 X Radial Bearing Grease Location
18. Grease the Y radial bearing by inserting the syringe through the hole and injecting a small
amount of MICROLUBE GL 262 grease (Figure 5-11).
> The syringe should be level.
Figure 5-11 Greasing the Y Radial Bearing
ForteMAXDispensingSystemAddendum Maintenance
© 2023 Nordson Corporation 61
19. Grease the four (4) Y linear bearing by angling the syringe into the bore and injecting
MICROLUBE GL 262 grease into the opening on the side of the bore while moving the axis
full travel (Figure 5-12).
> Clean off excess grease.
Figure 5-12 Y Linear Bearing Grease Locations
20. Grease the four (4) X linear bearings by angling the syringe into the hole and injecting
MICROLUBE GL 262 grease into the opening on the side of the bore while moving the axis
full travel (Figure 5-13).
> The upper locations are accessed through the holes in the cover.
Figure 5-13 X Linear Bearing Grease Locations
ForteMAXDispensingSystemAddendum Maintenance
62 © 2023 Nordson Corporation
21. Loosely install the slide bracket in the position noted during removal.
> The four (4) screws should be loose.
22. While applying a slight downward pressure on the slide bracket so that it is resting, and in
alignment with the alignment length in the back, torque the four (4) screws to
1.3 Nm (12 in-lbs).
23. Power on the dispensing system. Refer to the Forte Dispensing System Installation,
Operations, and Maintenance Manual if necessary.
24. Start the Canvas dispensing software. Refer to the Canvas Dispensing Software User
Guide if necessary.
25. After the machine has homed, open the dispensing system hatch and lightly grease the top
half of the Z-axis lead screw with the Super Lube Synthetic Grease (Figure 5-14).
Item Description

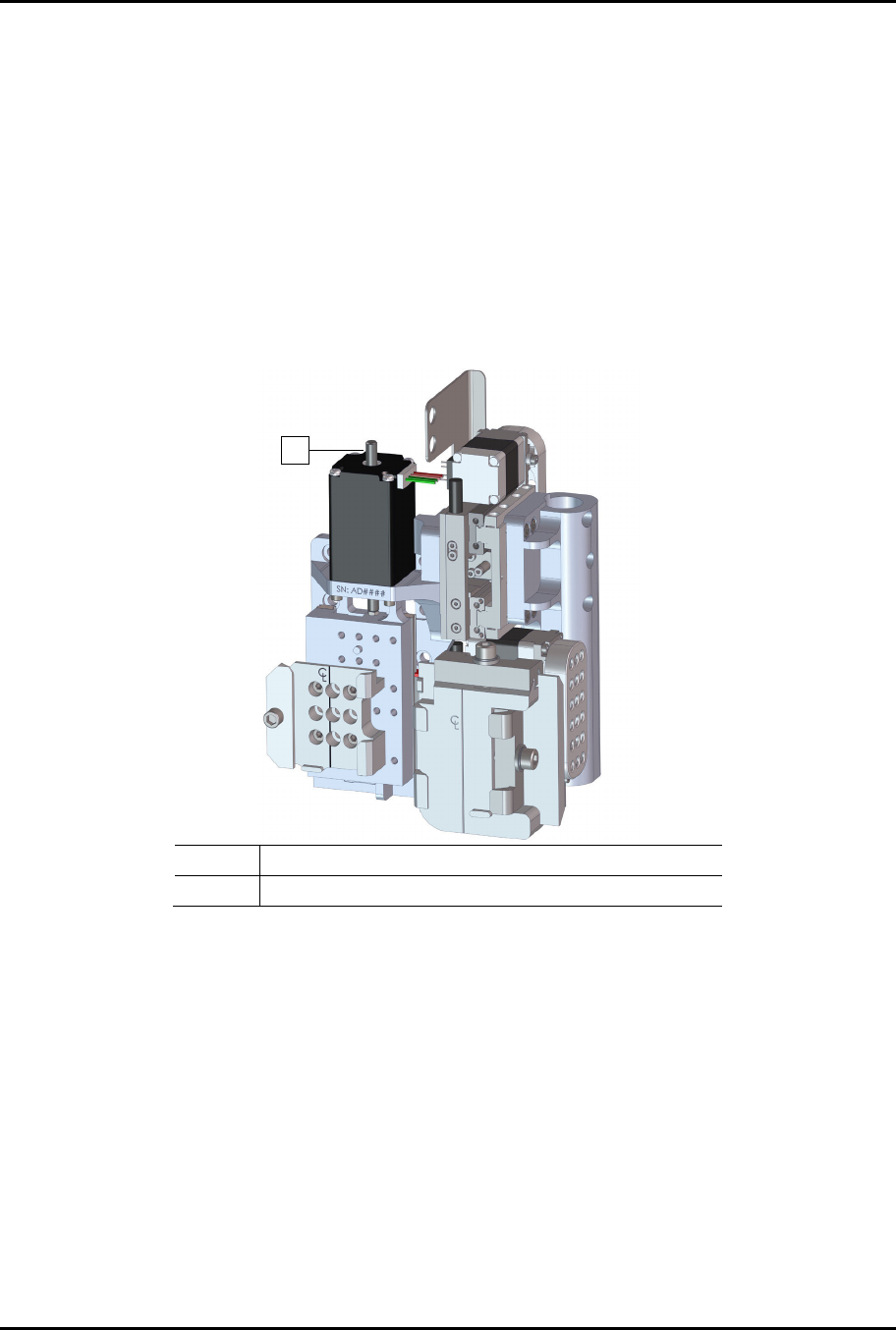

1 Z-Axis Lead Screw
Figure 5-14 Lubricating the Z-Axis Lead Screw
26. Reinstall both valves. Refer to the applicable valve manual for installation procedures.
27. Perform a valve offsets procedure. Refer to the Canvas Dispensing Software User Guide if
necessary.
1
