ForteMAXDispensingSystemAddendum Maintenance
© 2023 Nordson Corporation 59
16. Grease the four (4) Delta Z linear bearings by inserting the syringe into the small holes and
injecting a small amount of MICROLUBE GL 262 grease into each hole (Figure 5-9).
Figure 5-9 Delta Z Linear Bearing Grease Locations
ForteMAXDispensingSystemAddendum Maintenance
60 © 2023 Nordson Corporation

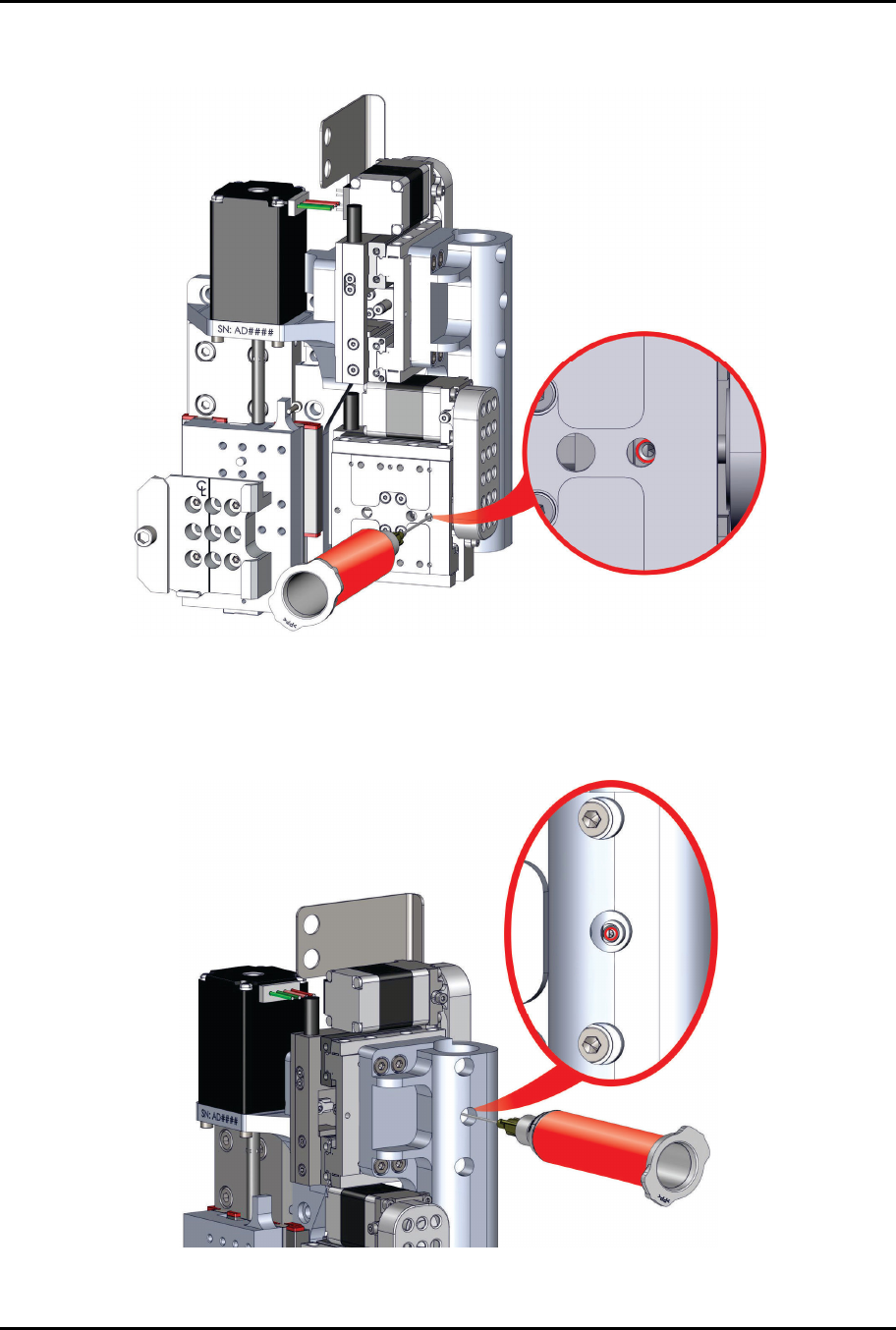

17. Grease the X radial bearing by inserting the syringe through the hole and injecting a small
amount of MICROLUBE GL 262 grease (Figure 5-10).
Figure 5-10 X Radial Bearing Grease Location
18. Grease the Y radial bearing by inserting the syringe through the hole and injecting a small
amount of MICROLUBE GL 262 grease (Figure 5-11).
> The syringe should be level.
Figure 5-11 Greasing the Y Radial Bearing
ForteMAXDispensingSystemAddendum Maintenance
© 2023 Nordson Corporation 61

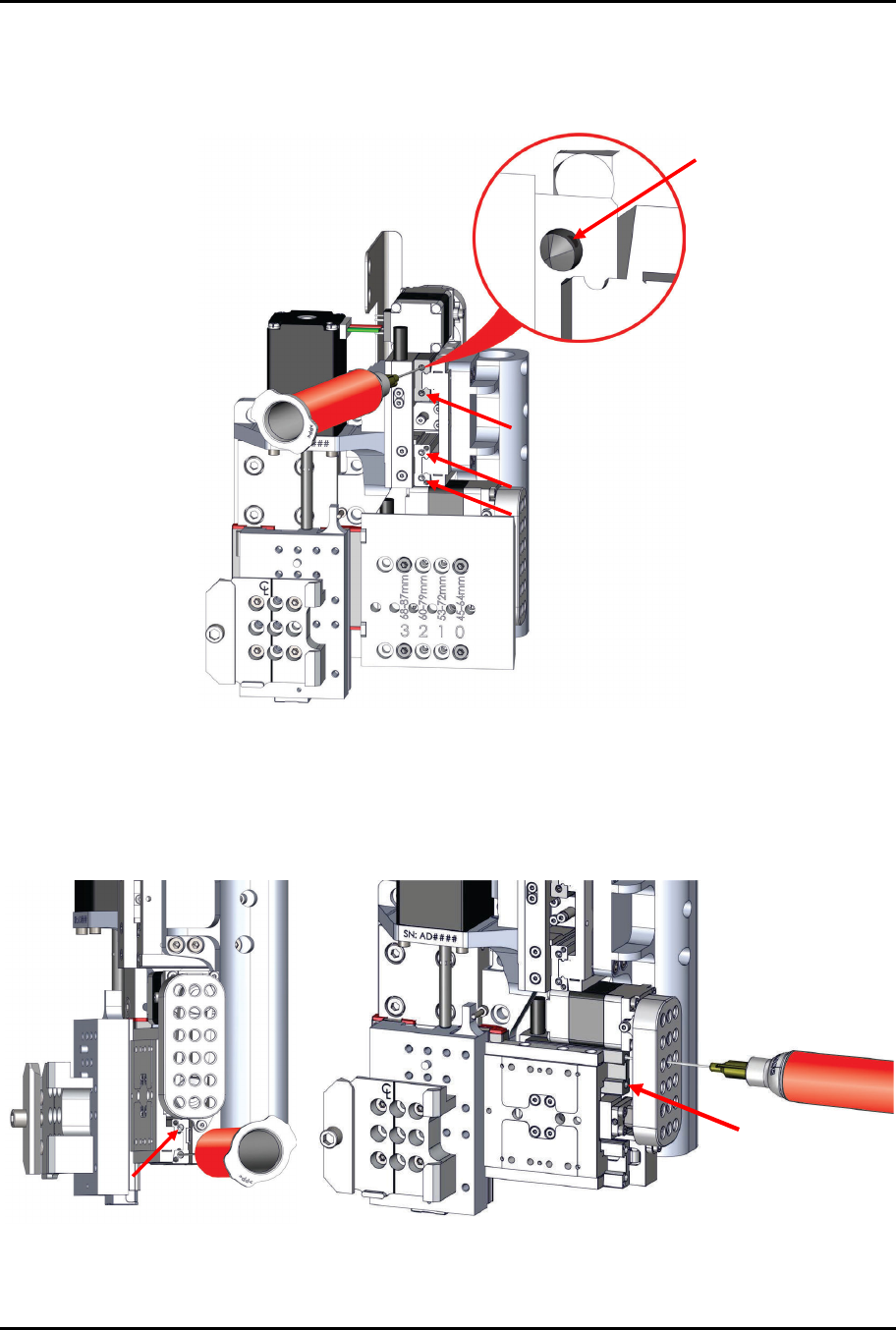

19. Grease the four (4) Y linear bearing by angling the syringe into the bore and injecting
MICROLUBE GL 262 grease into the opening on the side of the bore while moving the axis
full travel (Figure 5-12).
> Clean off excess grease.
Figure 5-12 Y Linear Bearing Grease Locations
20. Grease the four (4) X linear bearings by angling the syringe into the hole and injecting
MICROLUBE GL 262 grease into the opening on the side of the bore while moving the axis
full travel (Figure 5-13).
> The upper locations are accessed through the holes in the cover.
Figure 5-13 X Linear Bearing Grease Locations
