ForteMAXDispensingSystemAddendum Maintenance
© 2023 Nordson Corporation 57
13. Manually move the Delta XY motors for Valve 2 back and to the right (Figure 5-6).
Item Description
1 Valve 2 Delta XY Motors
Figure 5-6 Move Valve 2 Delta XY Motors Back and to the Right
14. Grease the left X ball screw by inserting the syringe through the hole and injecting a small
amount of ISOFLEX TOPAS NCA-52 grease (Figure 5-7).
> The X ball screw is shown in blue.
Figure 5-7 Left X Ball Screw Grease Location
1
ForteMAXDispensingSystemAddendum Maintenance
58 © 2023 Nordson Corporation

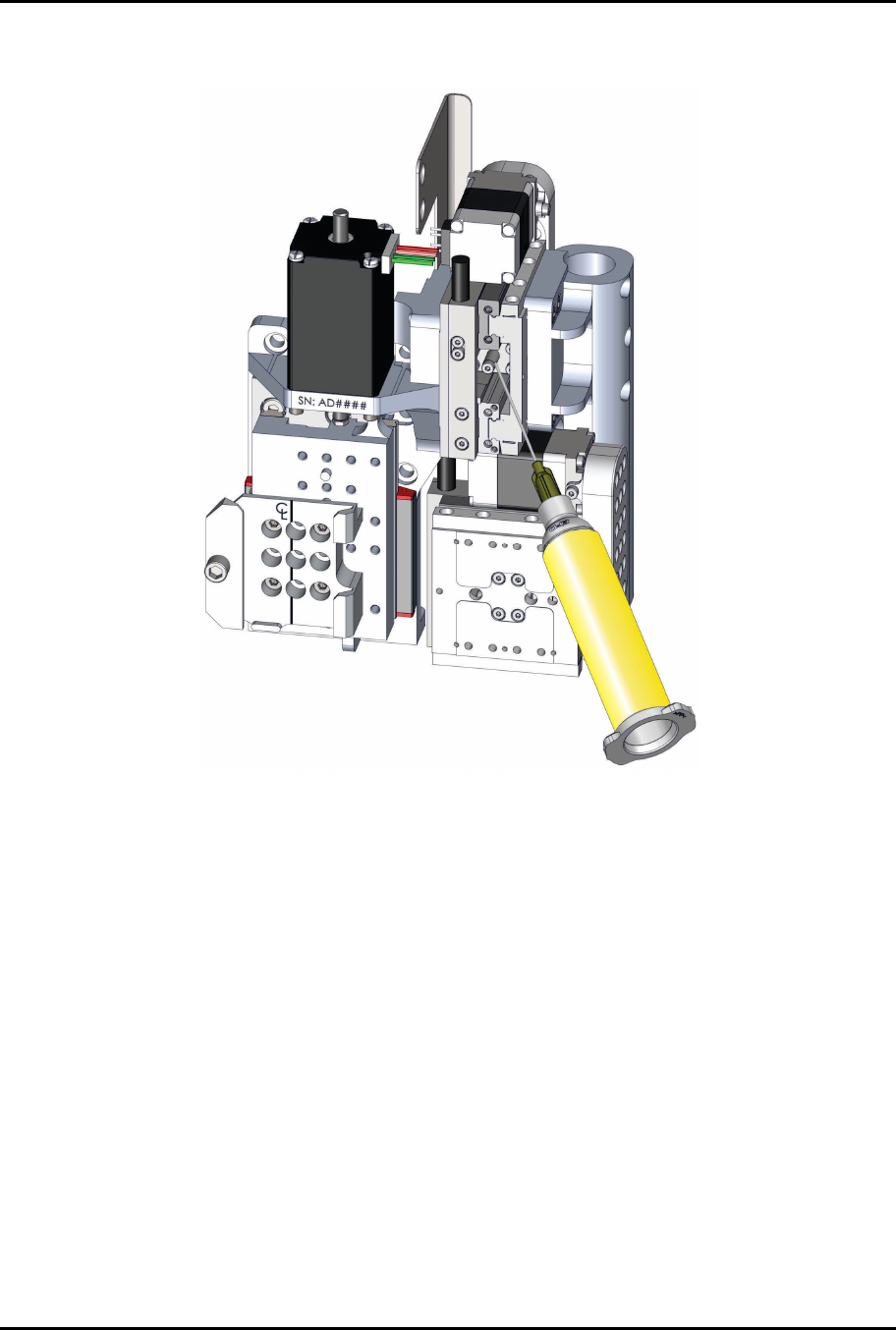

15. Grease the upper X ball screw by applying a small amount of ISOFLEX TOPAS NCA-52
grease (Figure 5-8).
Figure 5-8 Upper X Ball Screw Grease Location
ForteMAXDispensingSystemAddendum Maintenance
© 2023 Nordson Corporation 59

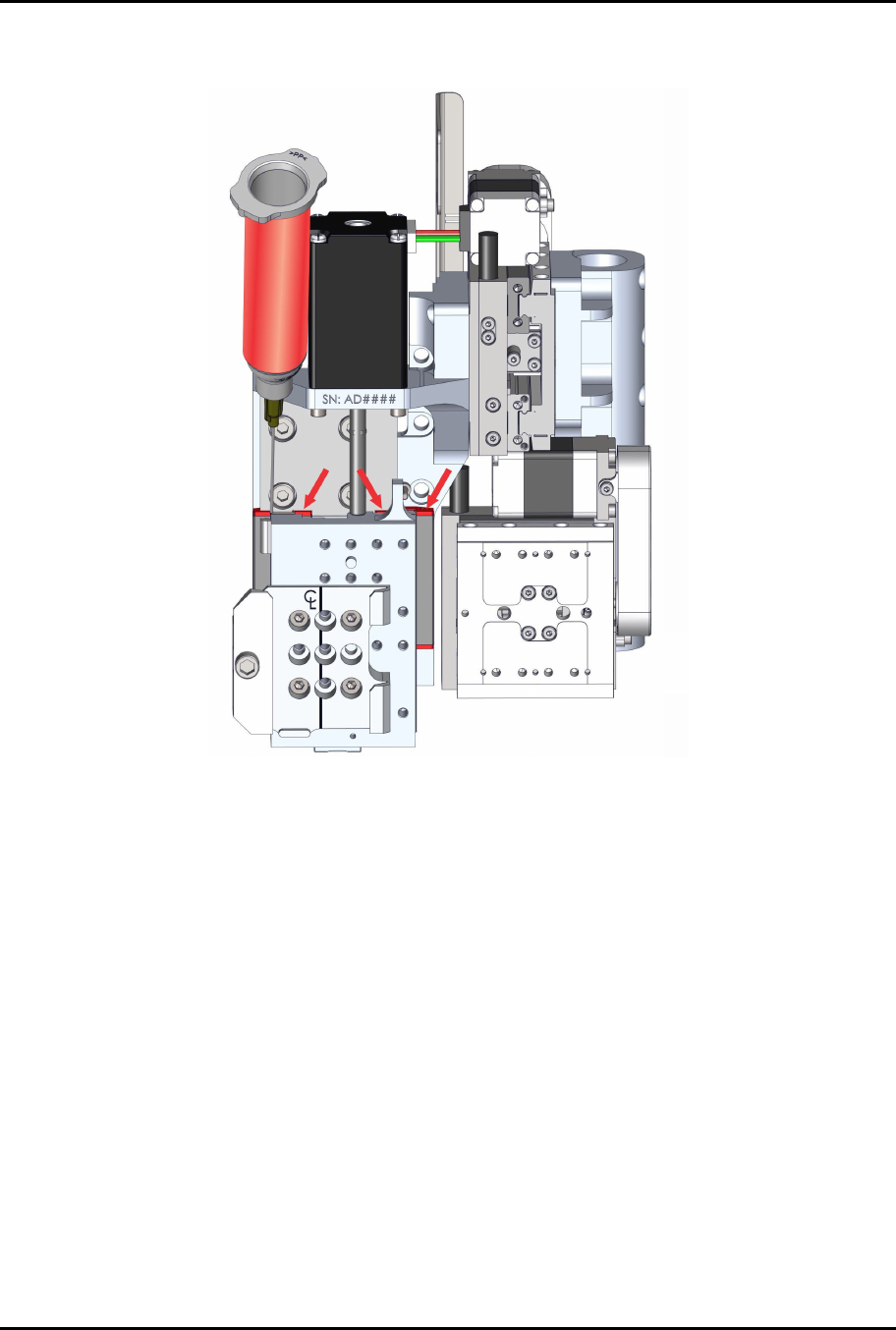

16. Grease the four (4) Delta Z linear bearings by inserting the syringe into the small holes and
injecting a small amount of MICROLUBE GL 262 grease into each hole (Figure 5-9).
Figure 5-9 Delta Z Linear Bearing Grease Locations
