ForteMAXDispensingSystemAddendum Maintenance 54 © 2023 Nordson Corpo ration 5.3 Lubricating the Forte MAX Bracket The Forte MAX bracket should be lubricated every six (6) months. Tools and Materials Nee de d: • Forte…

5 Maintenance

5.1 Overview

Following a routine maintenance schedule and procedures can prevent part degradation and ensure high

quality performance for every production run.

NOTE

This section applies to the Forte Max Dispensing System only. Refer to the Forte

Dispensing System Installation, Operations, and Maintenance Manual for complete

system maintenance instructions.

This section covers the following topics:

• Lubricating the Forte MAX Bracket

5.2 Safety First

Operation of the dispensing system involves heat, air pressure, electrical power, mechanical devices, and

the use of hazardous materials. It is essential that every person servicing or operating the dispensing

system fully understands all hazards, risks, and safety precautions. Refer to Section 2 – Safety in this

manual and to the Forte Dispensing System Installation, Operations, and Maintenance Manual for

important safety information.

ForteMAXDispensingSystemAddendum Maintenance

5.3 Lubricating the Forte MAX Bracket

The Forte MAX bracket should be lubricated every six (6) months.

Tools and Materials Needed:

• Forte MAX Grease Kit (Item 181)*

• Torque Wrench 1.3 Nm (12 in-lbs) (Customer Supplied)

*The Forte Max Grease Kit contains the following grease: ISOFLEX, TOPAS NCA 52, MICROLUBE GL 262, and Super Lube

Synthetic Grease with PTFE

WARNING!

Refer to the applicable SDS for important safety information pertaining to the

greases used in this procedure.

To lubricate the Forte MAX bracket:

1. Lower the Delta Z all the way down in the Canvas dispensing software.

2. Close the Canvas dispensing software.

3. Perform a service shutdown, see 2.11 Service Shutdown.

WARNING!

Failure to shut down the power and pneumatic pressure can result in severe injury

to personnel or damage to the dispensing system.

4. Open the dispensing system hatch and remove both valves. Refer to the applicable valve

manual for removal.

5. Loosen the dovetail mounting screw (Figure 5-1).

6. Remove the right dovetail assembly by sliding it to the right.

Item

Desc

riptio

1 Dovetail Mounting Screw

2 Right Dovetail Assembly

3 Standard Slide Bracket

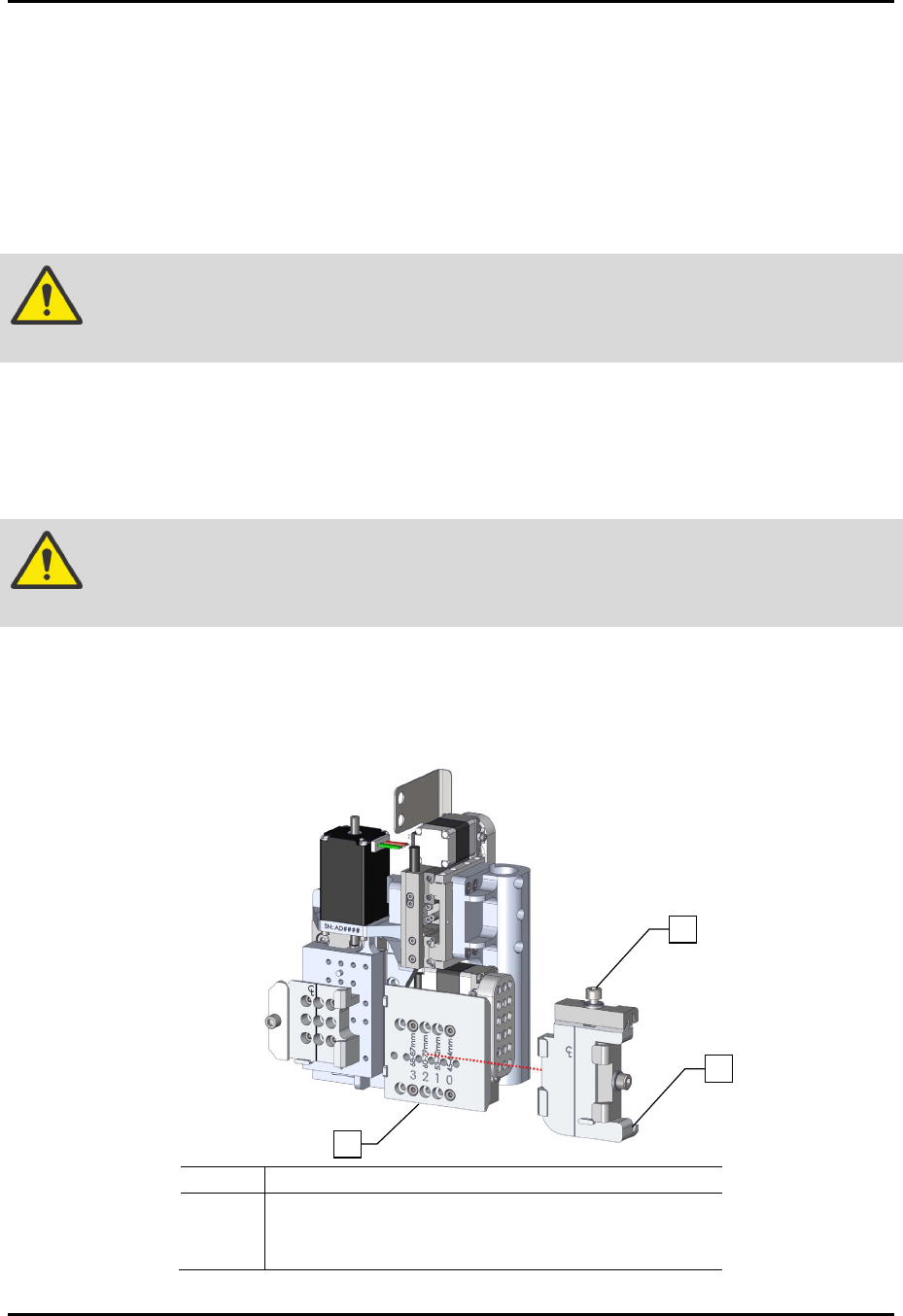

Figure 5-1 Removing the Right Dovetail

ForteMAXDispensingSystemAddendum Maintenance

7. Note the slide bracket position.

8. Remove the four (4) screws securing the slide bracket to the dispense head (Figure 5-2).

9. Remove the slide bracket.

Item Description

1 Screws

2 Slide Bracket

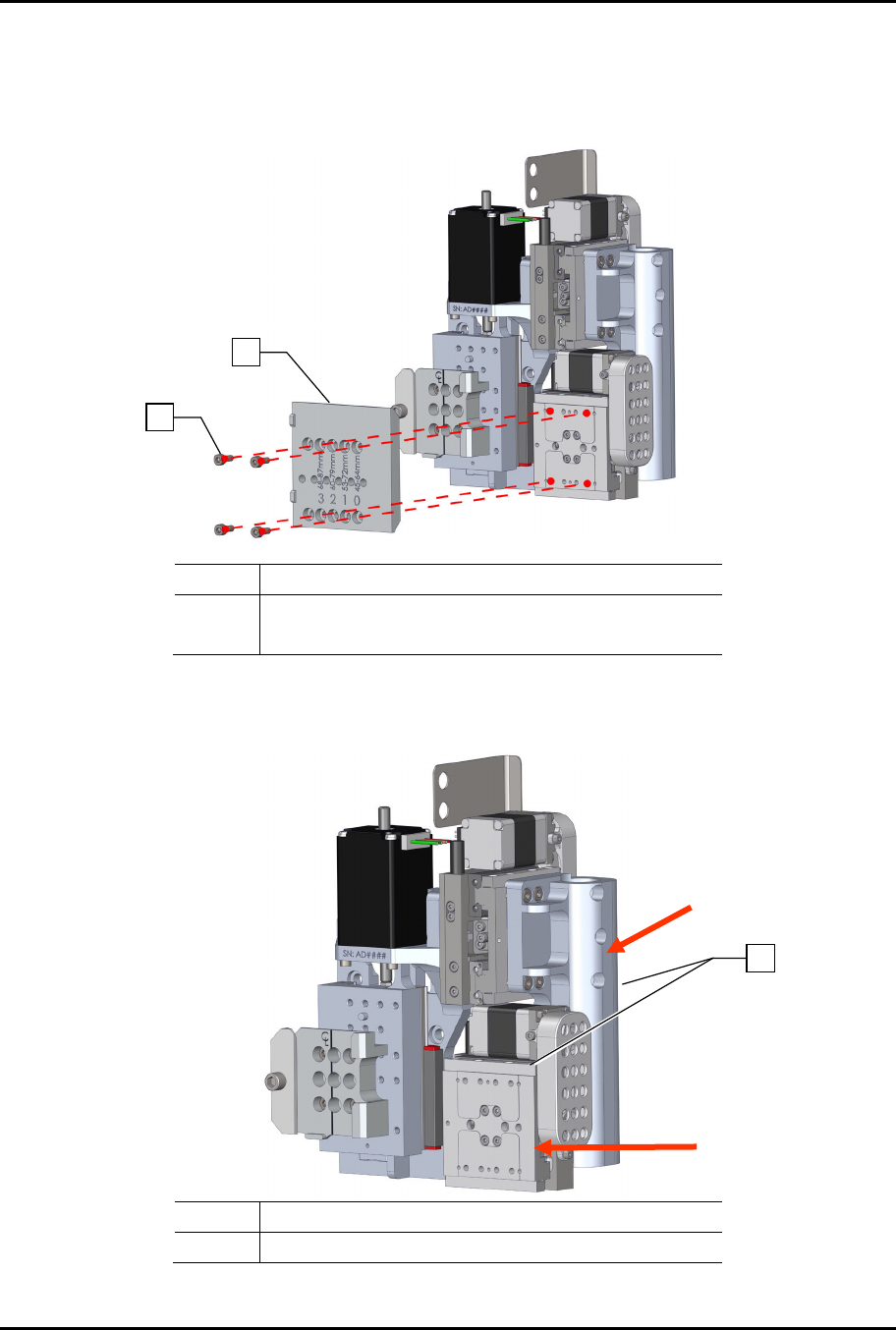

Figure 5-2 Removing the Slide Bracket

10. Manually move the Delta XY motors for Valve 2 forward and to the left (Figure 5-3).

Item Description

1 Valve 2 Delta XY Motors

Figure 5-3 Move Valve 2 Delta XY Motors Forward and to the Left
