32 Figure 2-27 . Scan/Pack age menus Press the MENU front p anel button three times to return to the power-up menu. CONTROL – S WITC H Control s The CONTROL – SW I TC H menu controls the function of the optional footswit…
31
SCAN – PACKAGE Controls (Tracker 2800S)
When scanning with a Tracker 2800S, it is possible to configure the pin counting order used on the
front panel cable connections. Depending on the type of component that is connected to during
scanning, the package type and number of pins will need to be configured.
To configure the scan package type press the Menu front panel button to display the Main menu (first
image in figure 2-27). Select SCAN from the touch screen Main menu to display the SCAN menu
(second image in figure 2-27). Select PACKAGE from the SCAN menu to display the PACKAGE
menu (third image in figure 2-27). Select PACKAGE to display the PACKAGE select menu (middle
right image in figure 2-26). Use the and buttons to step up or down through the package choices of
DIP, SIP, BOTH or FRONT (see figure 2-26).
Press the PACKAGE button to return to the Package menu. Press the PINS button to display the PIN
select menu (top right image in figure 2-27). Use the and buttons to increase or decrease the
numbers of pins to be scanned. Press the PINS button to return to the PACKAGE menu.
You can also configure how the scan is executed when the SCAN button is pressed. Press the SINGLE
button to toggle (bottom right image in figure 2-27) between SINGLE (single pass then stop), LOOP
(continuous scan) or STOP (stop on failure).
Figure 2-26 Scan package types
32

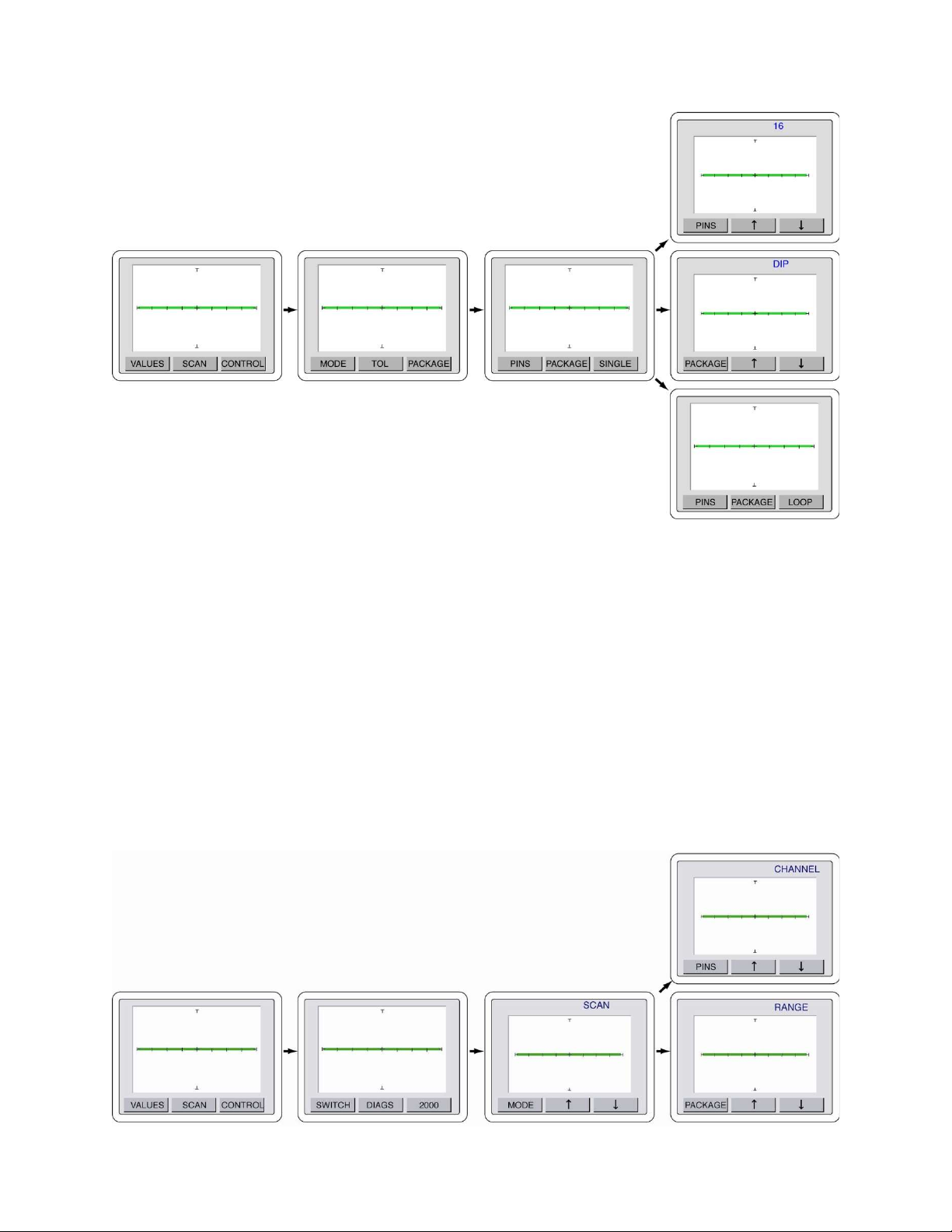

Figure 2-27. Scan/Package menus
Press the MENU front panel button three times to return to the power-up menu.
CONTROL – SWITCH Controls
The CONTROL – SWITCH menu controls the function of the optional footswitch when used with the
Tracker 2800.
To configure the footswitch control press the front panel MENU button to display the Main menu on
the LCD (left image in figure 2-28). Press the CONTROL button on the LCD to display the Control
menu (image second from left in figure 2-28). Press the SWITCH button on the LCD to display the
Switch menu (image third from left in figure 2-28). Use the and arrow buttons to select the
footswitch control between SCAN (image third from left in figure 2-28), CHANNEL (middle image
on right in figure 2-28) and RANGE (bottom image on right in figure 2-28).
33
Figure 2-28 Tracker 2800 Footswitch Control Menus
The footswitch controls work as follows:
SCAN mode: Pressing the footswitch will start and stop the SCAN mode (same as manually
pressing the front panel SCAN button).
CHANNEL mode: Pressing the footswitch will change the channel from A to B or vice versa.
RANGE mode: Pressing the footswitch will change to the range set when the mode is selected
(i.e., set the range to 3V, 10K, 200Hz, select footswitch RANGE mode; pressing the
footswitch will automatically change the Tracker to this range). This is useful for changing to a
favorite range by simply pressing the footswitch.
Press the MODE button to return to the Control menu or press the front panel MENU three times to
return to the power-up menu.
CONTROL – DIAGS Controls
The Tracker 2800/2800S has built-in diagnostics to ensure that the unit is functioning properly. The
diagnostics can be accessed through the touch screen menus.
To access the diagnostics menus, press the MENU front panel button to display the Main menu. Press
the CONTROL button (left image in figure 2-29) to display the Control menu. Press the DIAGS
button (center image in figure 2-29) to display the Diagnostics menu (right image in figure 2-29).

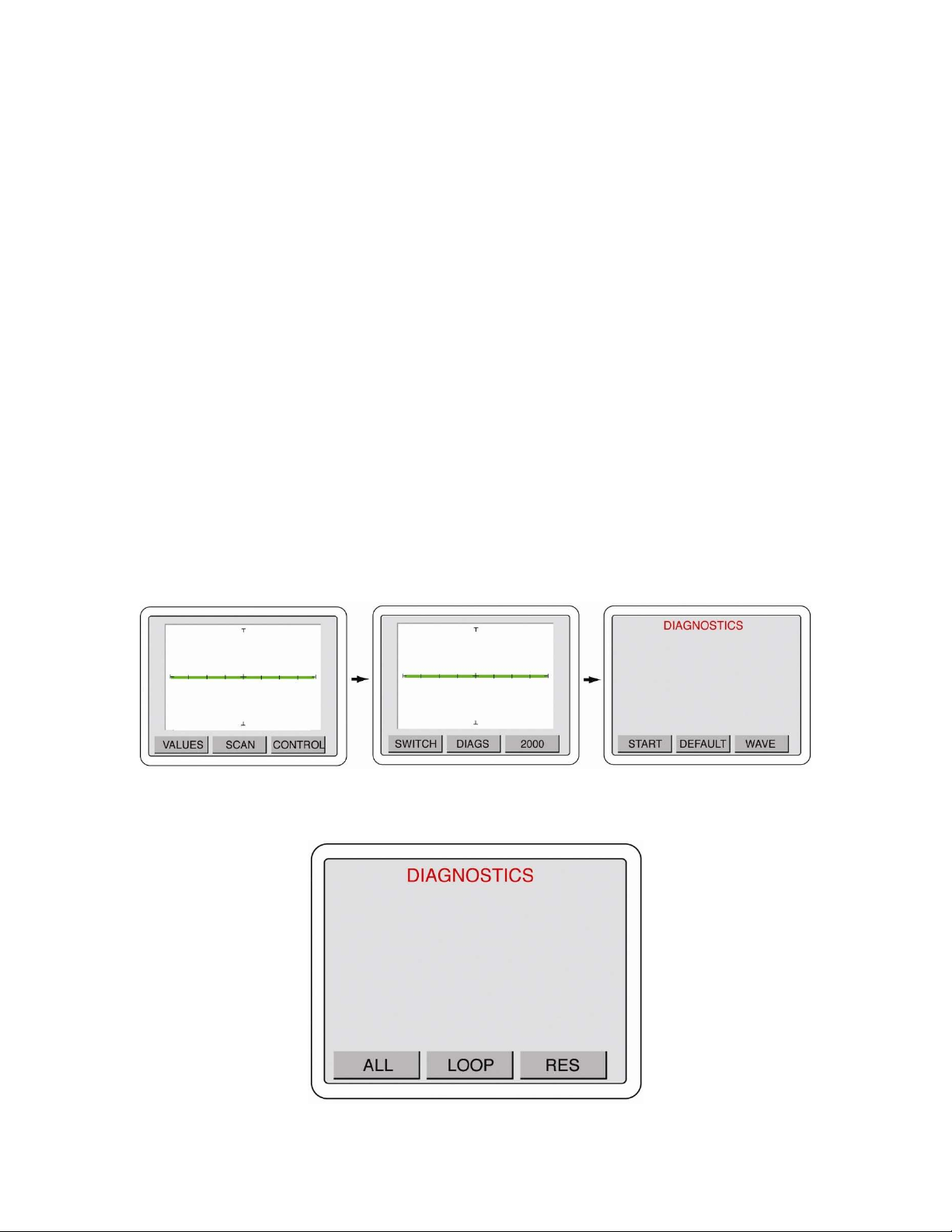

Figure 2-29 Control – Diags menus
Press the START button to display a diagnostics selection menu (shown in figure 2-30).
Figure 2-30 Diagnostics selections
