4022 593 51431 选件手册
07.01 供料器服务店 2-19
工具、部件和元件
2.6.8.2 TTF 调整工具
修理和调整 TTF 供料器时，还需使用这些工具。

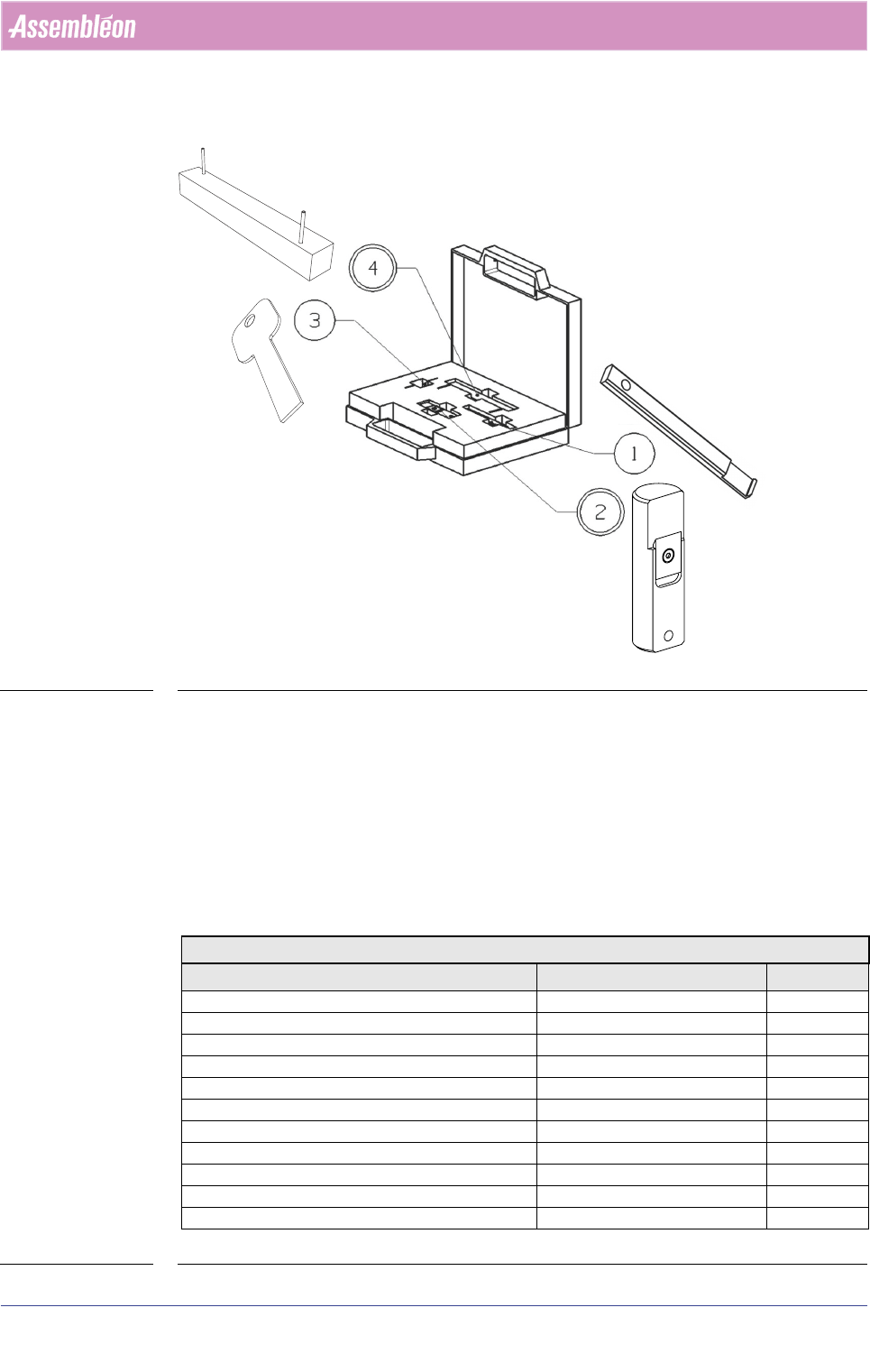

图 2-7
1. 链轮马达提升器 (9498 396 01384)
2. 侧板开启工具 (9498 396 00524)
3. 调整扳手 Ncul (9498 396 00525)
4. 拆卸工具 Ncul (9498 396 00526)
2.6.8.3 适用于 TTF 的一般小部件
一个箱子，装有适用于 TTF R1.0 供料器的螺丝。
表 2-12
螺丝
说明 服务号 数量
螺丝 PT 30X14
9498 396 00246 20
螺丝 PT 30X10
9498 396 00245 10
螺丝 PT 30X10.9
9498 396 00248 5
螺丝 PT 30X8
94983 960 0244 10
螺丝 PT 20X10
9498 396 00247 10
螺丝 PT 20X6
9498 396 00242 10
螺丝 PT 20X4
9498 396 00243 10
SET SCR ST ZN M2X4 9498-396-01383 1
CH SCR ST ZN M2X5 9498 396 00199 5
CSK SCR STL ST M3X5 9498-396-00180 20
12 抽屉箱 295x175x42
1
选件手册 4022 593 51431
2-20 供料器服务店 07.01
工具、部件和元件
2.7 渐进支持 (PA 3230/13)
这是一个 2 天的现场支持，目的是为了使客户或在客户处尽快开始运行供料器服
务店，内容包括：
] 工具安装
] 介绍供料器维修流程 / 可能性
] 执行流程 （演示 -> 辅导 -> 纠正，直至修理工程师达到 99.9% 的信心）
] 一个月后，通过一次半天回访进行评估
唯一的要求是有一个工作间和一个工作台，以便放置工具和执行修理操作，从而
对当地修理工程师进行培训。
4022 593 51431 Option Manual
07.01 Feeder Service Shop 3-1
Spare Parts ITF & TTF Feeders
CHAPTER 3 Spare Parts ITF & TTF Feeders
3.1 Module Overview Spare Parts ITF
The spare parts detailed in CHAPTER 3.3 are divided into the following modules:
Module 1: Control Unit
Module 2-22: Reel Holder Assembly
Module 3-15: Topfoil Peel-off Assembly
Module 4: Clamping Lever Assembly
Module 5: Sprocket Wheel Drive Assembly
Module 6: Mounting Plate Assembly
3.2 Repair
Local Repair:
For approximately 90% of the parts it is possible to repair the feeder locally without
the need of special equipment. However, not all parts are mentioned in the
following pages. The parts mentioned here are the parts likely to get damaged or
lost during production or repair actions.
Central Repair:
a) Assembléon offers central repair if local repair is not possible.
b) Central repair comes with the following conditions:
• Feeder must be packed properly. Damage caused by transport will not be
repaired
• Feeders must be complete. No parts should be missing.
Customized Repair:
With customized repair, the feeder will be returned to the originator with the
shortest possible repair time. The feeder will be functionally repaired and all
customer improvements, identifications will remain untouched (unless it is noticed
that this has negative influence on the feeder performance). Customized repair is
cheaper than Swap Repair.
Swap Repair:
This is refurbished repair. Within the delivery agreements of the regions, a defective
feeder is replaced by a refurbished feeder. All customized improvements, identifi-
cations are removed from these feeders. The feeders represent a correct functioning
feeder of the same level as the corresponding PA#. The contents of these feeders is
exactly as the contents of the PA#.
Feeders returned for Customized and Swap repair can be returned via regular
channels.
