4022 593 51431 Option Manual 07.01 Feeder Service Shop 3-33 Modul e Number: 2 Modul e Name: R eel Hol der A ssembly Item No. Part of Item No. Ordering Code Description Qty/ Mod P1 Repair Item Service Instruction Remarks …
Spare parts lists TTF 3-32
Module Number: 1 Module Name: Control Unit
Item
No.
Part of
Item No.
Ordering Code Description
Qty/
Mod
P1
Repair
Item
Service
Instruction
Remarks
1 1 9498 396 00202 HUMAN INTERFACE 1 Y
3 9498 396 00227 CONTROLLER COVER 1
4 9498 396 01381 SEAL 1
1
2
4
OFF
2mm
2mm
3
2
1
ON
4
mm
4
mm
Re
m
ote
2
1
3
4
4022 593 51431 Option Manual
07.01 Feeder Service Shop 3-33

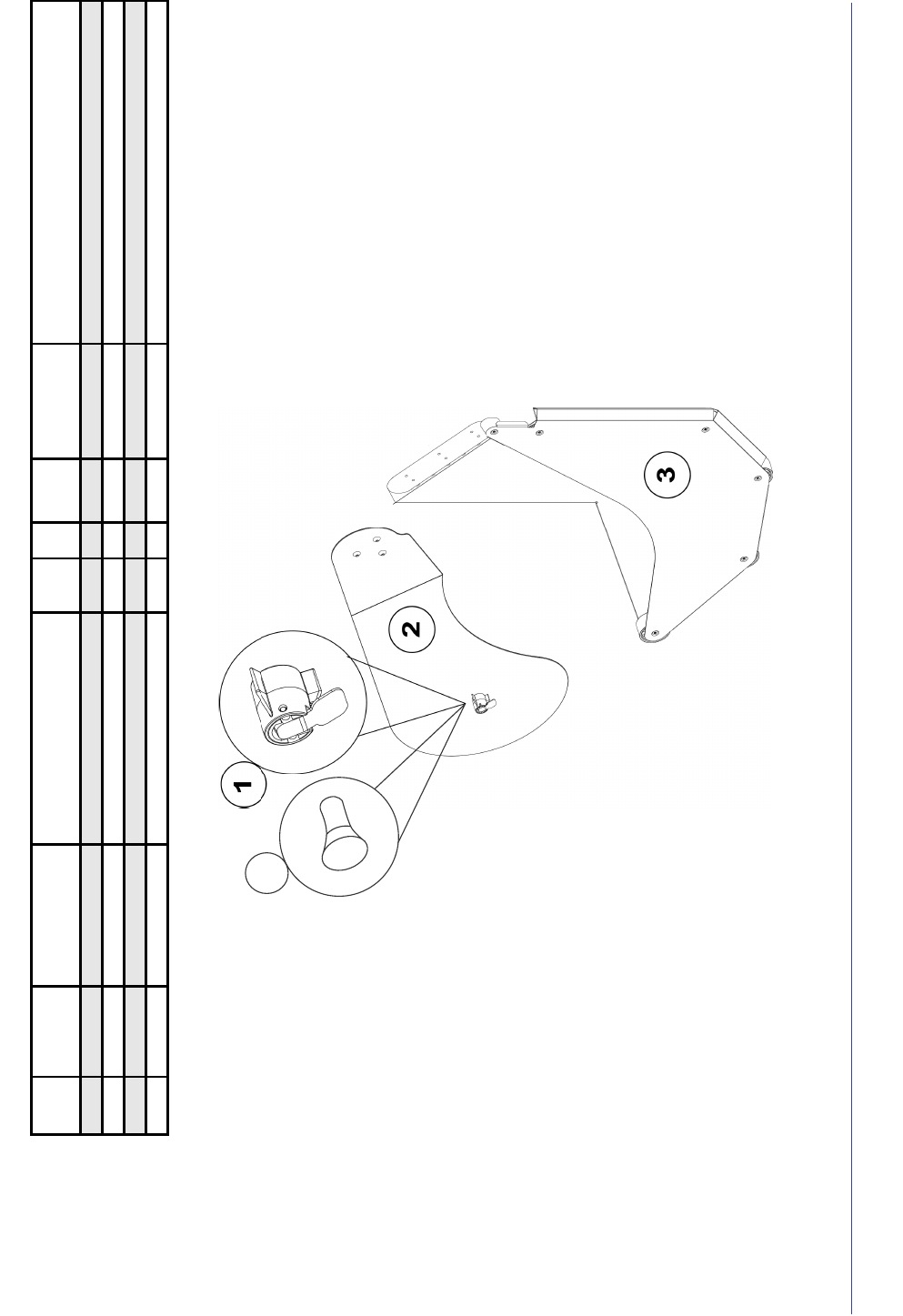

Module Number: 2 Module Name: Reel Holder Assembly
Item
No.
Part of
Item No.
Ordering Code Description
Qty/
Mod
P1
Repair
Item
Service
Instruction
Remarks
1 9498 396 00173 REEL CLAMP 1 Y
2 9498 396 00249 REEL HOLDER UL 1 Y
3 9498 396 00175 REEL HOLDER LL 1 Y
4 9498 396 01422 REEL CLAMP (improved) 1
4
Spare parts lists TTF 3-34

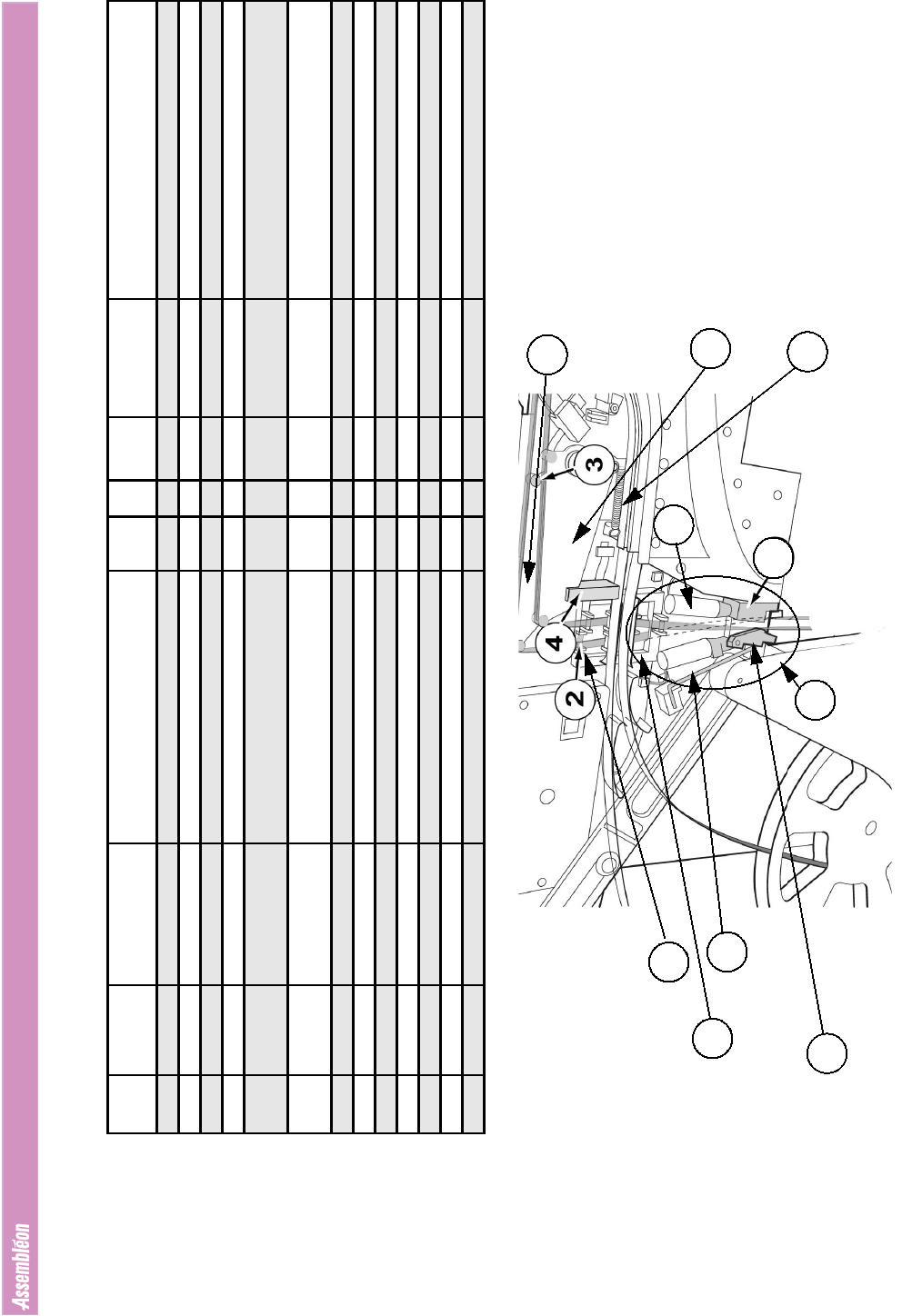

Module Number: 3 Module Name: Topfoil Peel-off Assembly
Item
No.
Part of
Item No.
Ordering Code Description
Qty/
Mod
P1
Repair
Item
Service
Instruction
Remarks
1 9498 396 00196 PEEL OFF MOTOR UNIT COMPLETE 1 Y Y
2 9498 396 00213 TOP FOIL GUIDING ROLLERS 6 Y Standard package 25
3 9498 396 00191 LEVER ROLLERS 4 Y Standard package 10
4 9498 396 00203 BUFFER SENSORS 1 Y
5 1 9498 396 00197 PEEL OFF MOTOR 2 Y Only possible from feeder nr. TTF 1003000
onwards
6 1 9498 396 00198 PEEL OFF MODULE 1 Y Only possible from feeder nr. TTF 1003000
onwards
7 9498 396 00190 LEVER UL ASSY 1 Y
8 9498 396 00192 LEVER LL ASSY 1 Y
9 9498 396 00195 WIRE SPRING 2
10 9498 396 00214 DOWEL FOR GUIDING ROLLERS 6
11 9498 396 01379 BUFFER TENSION SPRING 2
12 9498 396 00212 TOP FOIL UNIT 1
13 9498 396 00720 PEEL OFF HANDLE ASSY 2
1
6
8
7
9
5
10
11
12
13
