4022 593 51431 Option Manual 07.01 Feeder Service Shop 3-5 Mod ule N umber: In telligen t T ape F eeder Compl ete M odul e Nam e: New an d repair ed complete feed er s Quantity per module 8 12 16 24 32 44 56 Feeder width…
Spare Parts Lists ITF 3-4

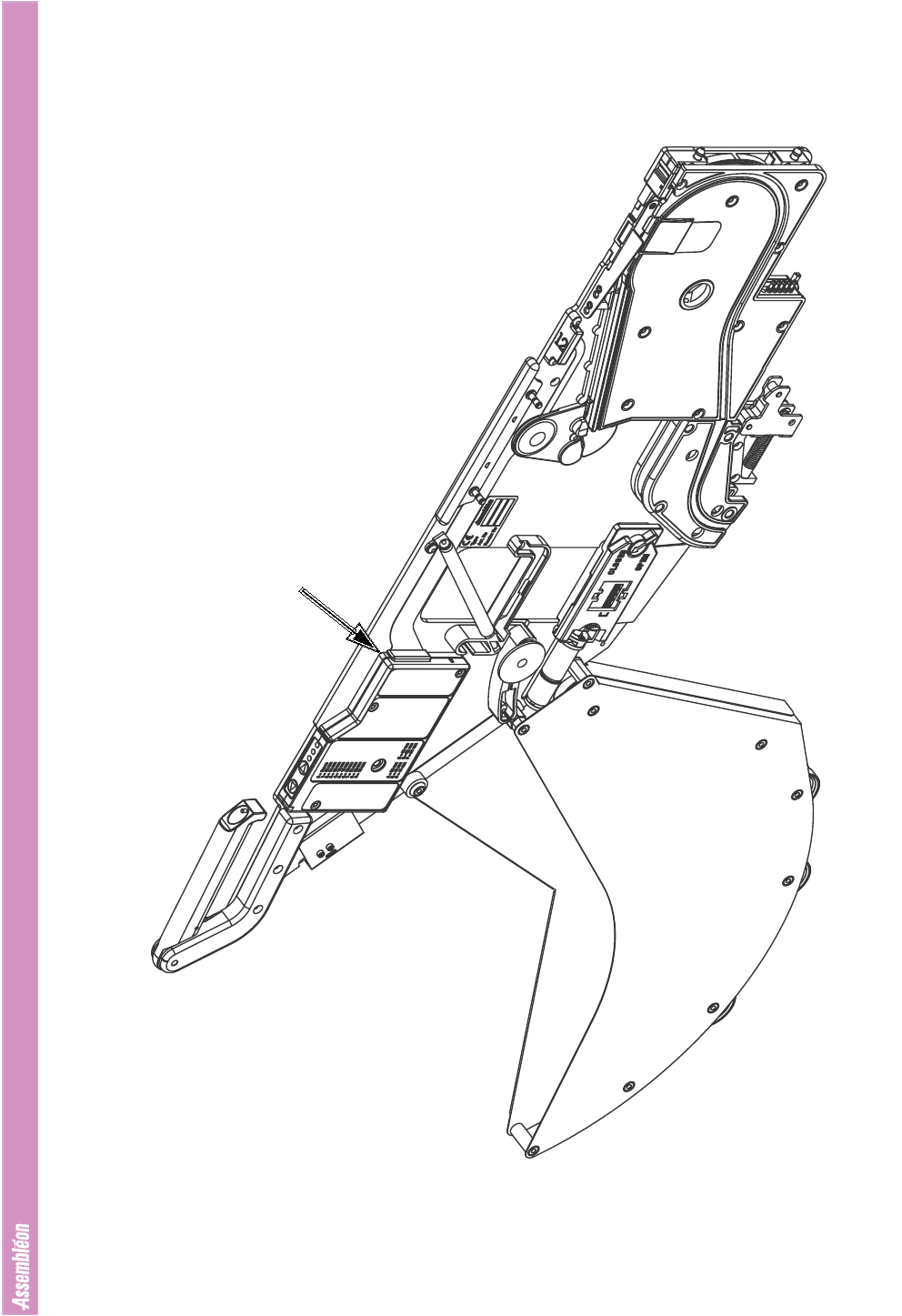

Module Number: Intelligent Tape Feeder Complete Module Name: New and repaired complete feeders
1
4022 593 51431 Option Manual
07.01 Feeder Service Shop 3-5
Module Number: Intelligent Tape Feeder Complete Module Name: New and repaired complete feeders
Quantity per module
8 12 16 24 32 44 56 Feeder width (mm)
Item No.
Part of
item No. Ordering code
Description
PA2654/0y
PA2645/1y
PA2654/2y
PA2654/3y
PA2654/4y
PA2654/5y
PA2654/6y
PA number of feeder width
Complete Feeder Module Name: Complete Feeder Remarks
Tape feeder 8mm, release 4 1
PA2654/x7: new feeder
9498 396 01278 Tape feeder 24mm, release 4 1
PA2654/x7: new feeder, standard delivered with 13" reel holder assembly
9498 396 01279 Tape feeder 32mm, release 4 1
PA2654/x7: new feeder
9498 396 01280 Tape feeder 44mm, release 4 1
PA2654/x7: new feeder
9498 396 01281 Tape feeder 56mm, release 4 1
PA2654/x7: new feeder
Tape feeder 8mm, release 4
1 PA2654/x7: customized repaired feeder
9498 398 01278 Tape feeder 24mm, release 4 1
PA2654/x7: customized repaired feeder
9498 398 01279 Tape feeder 32mm, release 4 1
PA2654/x7: customized repaired feeder
9498 398 01280 Tape feeder 44mm, release 4 1
PA2654/x7: customized repaired feeder
9498 398 01281 Tape feeder 56mm, release 4 1
PA2654/x7: customized repaired feeder
9498 397 00283
Tape feeder 8mm, release 2 and 3
1
PA2654/x5 and PA2654/x6: swap repaired feeder
9498 397 00284 Tape feeder 12mm, release 2 and 3 1
PA2654/x5 and PA2654/x6: swap repaired feeder
9498 397 00285 Tape feeder 16mm, release 2 and 3 1
PA2654/x5 and PA2654/x6: swap repaired feeder
9498 397 00286 Tape feeder 24mm, release 2 and 3 1
PA2654/x5 and PA2654/x6: swap repaired feeder
9498 397 00287 Tape feeder 32mm, release 2 and 3 1
PA2654/x5 and PA2654/x6: swap repaired feeder
9498 397 00288 Tape feeder 44mm, release 2 and 3 1
PA2654/x5 and PA2654/x6: swap repaired feeder
9498 397 00289 Tape feeder 56mm, release 2 and 3 1
PA2654/x5 and PA2654/x6: swap repaired feeder
9498 398 00283
Tape feeder 8mm, release 2 and 3
1
PA2654/x5 and PA2654/x6: customized repaired feeder
9498 398 00284 Tape feeder 12mm, release 2 and 3 1
PA2654/x5 and PA2654/x6: customized repaired feeder
9498 398 00285 Tape feeder 16mm, release 2 and 3 1
PA2654/x5 and PA2654/x6: customized repaired feeder
9498 398 00286 Tape feeder 24mm, release 2 and 3 1
PA2654/x5 and PA2654/x6: customized repaired feeder
9498 398 00287 Tape feeder 32mm, release 2 and 3 1
PA2654/x5 and PA2654/x6: customized repaired feeder
9498 398 00288 Tape feeder 44mm, release 2 and 3 1
PA2654/x5 and PA2654/x6: customized repaired feeder
9498 398 00289 Tape feeder 56mm, release 2 and 3 1
PA2654/x5 and PA2654/x6: customized repaired feeder
Spare Parts Lists ITF 3-6
Module Number: Intelligent Tape Feeder Complete (continued) Module Name: New and repaired complete feeders
1
