4022 593 51431 Option Manual 07.01 Feeder Service Shop 3-15 Modul e Number: 4 Modul e Na me: Clamping Le ver Assembly Quantity per module 8 12 16 24 32 44 56 Feeder width (mm) Item No. Part of item No. Ordering code Desc…
Spare Parts Lists ITF 3-14

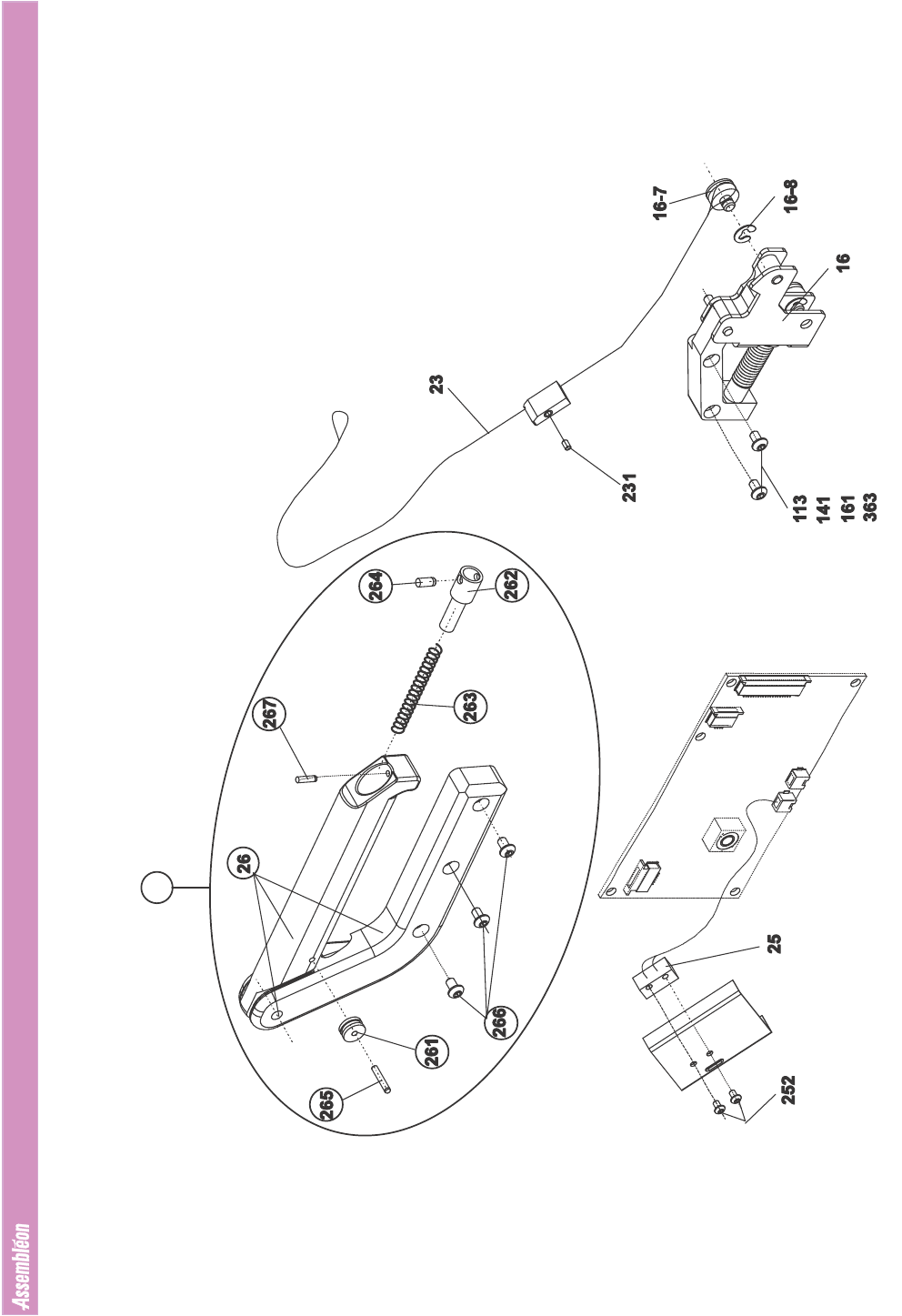

Module Number: 4 Module Name: Clamping Lever Assembly
27
4022 593 51431 Option Manual
07.01 Feeder Service Shop 3-15
Module Number: 4 Module Name: Clamping Lever Assembly
Quantity per module
8 12 16 24 32 44 56 Feeder width (mm)
Item No.
Part of
item No. Ordering code
Description
PA2654/0y
PA2645/1y
PA2654/2y
PA2654/3y
PA2654/4y
PA2654/5y
PA2654/6y
PA number of feeder width
Module Number: 4 Module Name: Clamping Lever Assembly Remarks
16
4
5322 401 11769 Clamping unit assy. (8 mm) 1 1
Including items 16-7 and 16-8
16
4
5322 401 11771 Clamping unit assy. (12mm) 1
Including items 16-7 and 16-8
16
4
5322 401 11772 Clamping unit assy. (16mm) 1
Including items 16-7 and 16-8
16
4
5322 401 11773 Clamping unit assy. (32mm) 1
Including items 16-7 and 16-8
16
4
5322 401 11774 Clamping unit assy. (44mm) 1
Including items 16-7 and 16-8
16
4
5322 401 11775 Clamping unit assy.(56 mm 1
Including items 16-7 and 16-8
16-7
16
5322 256 10546 Cable holder (8&24mm) 1 1
16-7
16
5322 256 10569 Cable holder (12mm) 1
16-7
16
5322 256 10568 Cable holder (16mm) 1
16-7
16
5322 256 10567 Cable holder (32mm) 1
16-7
16
5322 256 10566 Cable holder (44mm) 1
16-7
16
5322 256 10571 Cable holder (56mm) 1
16-8
16
4822 530 70123 Retain ring for cable holder 1111111
Standard packing unit: 10
113
4
5322 502 21213 Pan schr St Zn M3x12 2
Standard packing unit: 25
141
4
5322 502 14155 Pan schr St Zn M3x16 2
Standard packing unit: 10
161
4
5322 502 14405 Pan schr St Zn M3x8 2 2 2
Standard packing unit: 25
363
4
5322 502 21212 Pan schr St Zn M3x10 2 2
Standard packing unit: 25
23
4
5322 320 12489 Cable assembly 1111111
231
23
4822 502 10004 Set screw M2x4 1111111
Standard packing unit: 10
25
4
5322 277 11816 Microswitch assembly 1111111
252
4
5322 502 21322 Pan schr St Zn M2x8 2222222
Standard packing unit: 10
26
4
5322 402 11168 Handle assembly 1111111
Excluding items 261/262/263/264/265/266/267
261
4
5322 528 11281 Roller 1111111
262
4
5322 256 10545 Spring bolt 1111111
263
4
5322 492 11729 Spring handle 0.4x36.6 1111111
Standard packing unit: 10
264
4
5322 529 10416 Dowel Ø3h6x8 1111111
Standard packing unit:
265
4
5322 529 10415 Dowel Ø2h6x12 1111111
Standard packing unit:
266 4 5322 502 21212 Pan schr St Zn M3x10 1111111For PA2654/x6 and older quantity per module is 3, standard packing unit: 25
267
4
5322 529 10417 Dowel Ø2h6x8 1111111
Standard packing unit:
27
4
9498 396 00877 Handle assembly 1111111
