4022 593 51431 Option Manual 07.01 Feeder Service Shop 3-13 Mod u le N u mb e r : 3 - 15 Mod u le Na me : Topfoi l Peel - of f As s em b l y REMARK: The complete topfoil peel-off assembly will be delivered without rotati…
Spare Parts Lists ITF 3-12

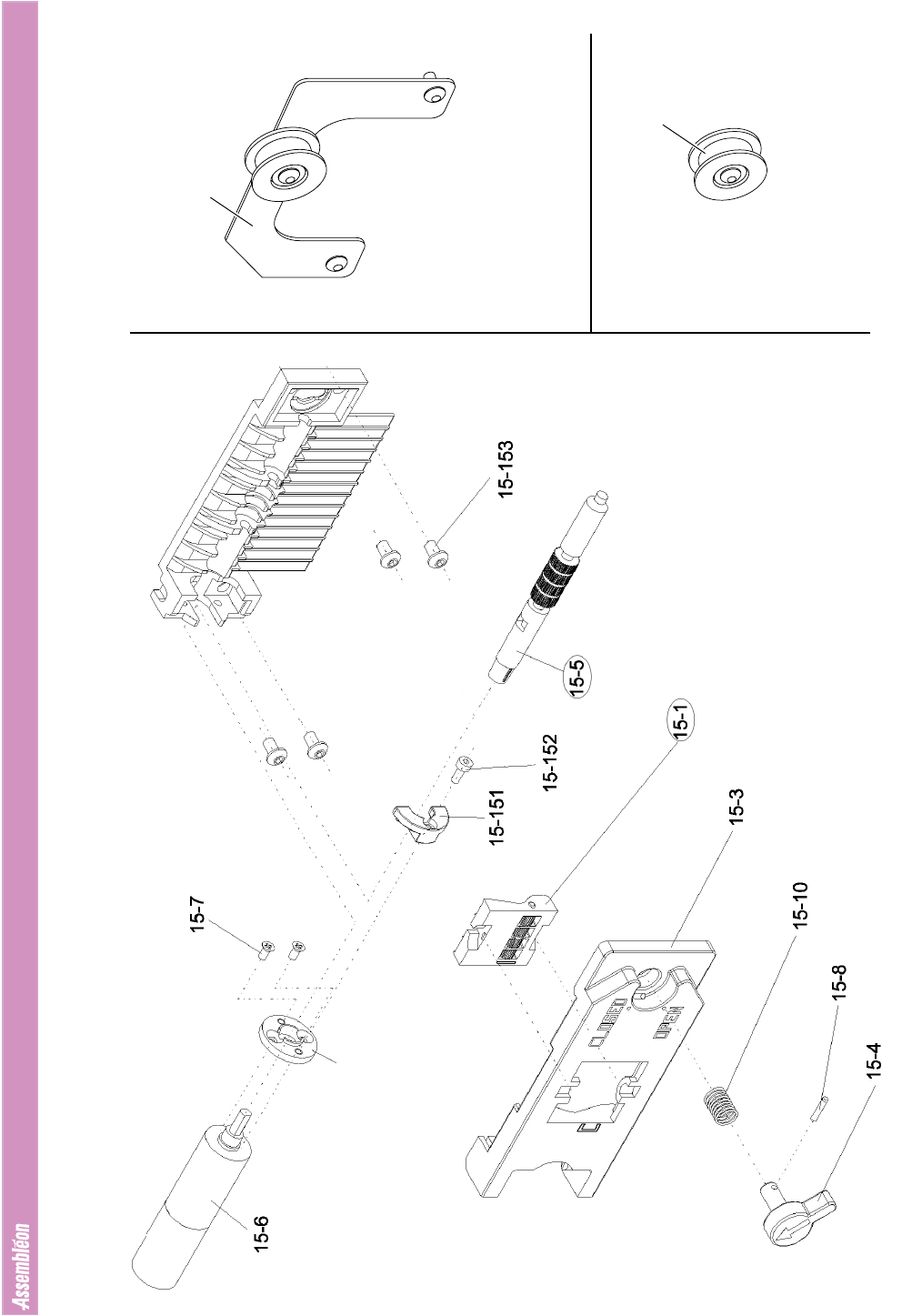

Module Number: 3-15 Module Name: Topfoil Peel-off Assembly
4
5
4022 593 51431 Option Manual
07.01 Feeder Service Shop 3-13
Module Number: 3-15 Module Name: Topfoil Peel-off Assembly
REMARK: The complete topfoil peel-off assembly will be delivered without rotation lock 15-151 and fastening item 15-153.
Quantity per module
8 12 16 24 32 44 56 Feeder width (mm)
Item No.
Part of
item No. Ordering code
Description
PA2654/0y
PA2645/1y
PA2654/2y
PA2654/3y
PA2654/4y
PA2654/5y
PA2654/6y
PA number of feeder width
Module Number: 3-15 Module Name: Topfoil Peel-off Assembly Remarks
3-15 - 5322 693 11521 Complete Assembly 1111111Only for PA2654/x6 and older. The complete topfoil peel-off assembly will be
delivered without rotation lock 15-151 and fastening item 15-153
4 9498 396 01166 Top foil guide assy R2 1
Only for PA2654/x5
5 9498 396 01152 Top foil guide assy R3 1
Only for PA2654/x6
15-1 3-15 5322 693 11522 Pivot press unit (pinion) 1111111Only for PA2654/x6 and older, only together with part 5322-535-10574
15-1 9498 396 00985 Pivot press unit (pinion) 1111111
Intended for PA2654/x7, can also be used on PA2654/x6 and older but only in
together with part 9498 396 00986
15-3
3-15
5322 466 12223 Peel-off front plate 1111111
15-4
3-15
4022 516 05922 Lock/unlock knob 1111111
15-5 3-15 5322 535 10574 Main shaft (pinion) 1111111Only for PA2654/x6 and older, only together with part 5322-693-11522
15-5 9498 396 00986 Main shaft (pinion) 1111111
Intended for PA2654/x7, can also be used on PA2654/x6 and older but only in
together with part 9498 396 00985
15-6
3-15
5322 361 11113 Topfoil peel-off motor 1111111
15-7 3-15 5322 502 14493 Csk Stl St M2x4 1111111For PA2654/x6 and older quantity per module is 2, standard packing unit: 10
15-8
3-15
5322 535 14139 Dowel 1.5x8 1111111
15-10
3-15
5322 492 11752 Compression spring 1111111
Standard packing unit: 10
15-151
3-15
5322 417 11408 Rotation lock 1111111
15-152
3-15
4822 502 11674 Pan scr Stl St M2x5 1111111
Standard packing unit: 5
15-153 3-15 5322 502 21211 Pan scr Stl St M3x5 1111111For PA2654/x6 and older quantity per module is 2, standard packing unit: 25
