Spare P arts Lists ITF 3-24 Modul e Number: 6 (contin ued) Modul e Nam e: Moun ting Plate A ssembly 6-14 (assy) 141 12 121 24 275 273 274 272 13 14-3 332 384 341 333 332 331 333 301 302 390 181 400 358 394 401 295 293 35…
4022 593 51431 Option Manual
07.01 Feeder Service Shop 3-23
Module Number: 6 (continued) Module Name: Mounting Plate Assembly
Quantity per module
8 12 16 24 32 44 56 Feeder width (mm)
Item No.
Part of
item No. Ordering code
Description
PA2654/0y
PA2645/1y
PA2654/2y
PA2654/3y
PA2654/4y
PA2654/5y
PA2654/6y
PA number of feeder width
Module Number: 6 Mounting Plate Assembly Remarks
192
6
5322 132 00104 Receiving sensor 8mm 1
192
6
5322 132 00106 Receiving sensor 12mm 1
192
6
5322 132 00108 Receiving sensor 16mm 1
192
6
5322 132 00111 Receiving sensor 24mm 1
192
6
5322 132 00113 Receiving sensor 32mm 1
192
6
5322 132 00115 Receiving sensor 44mm 1
192
6
5322 132 00117 Receiving sensor 56mm 1
193
6
5322 442 01859 Receiving cover 8mm 1
193
6
5322 442 01861 Receiving cover 12mm 1
193
6
5322 442 01862 Receiving cover 16mm 1
193
6
5322 442 01863 Receiving cover 24mm 1
193
6
5322 442 01864 Receiving cover 32mm 1
193
6
5322 442 01865 Receiving cover 44mm 1
193
6
5322 442 01866 Receiving cover 56mm 1
194
6
5322 442 01871 Screening plate 8mm 1
194
6
5322 442 01872 Screening plate 12mm 1
194
6
5322 442 01873 Screening plate 16mm 1
194
6
5322 442 01874 Screening plate 24mm 1
194
6
5322 442 01875 Screening plate 32mm 1
194
6
5322 442 01876 Screening plate 44mm 1
194
6
5322 442 01877 Screening plate 56mm 1
271
6
9498 396 01154 Cover + spring 8mm 1
271
6
5322 442 01527 Cover 8mm 1
271
6
9498 396 00374 Cover 12-24mm 1 1 1
271
6
9498 396 00994 Cover 24mm 1
Only for project feeder 9466 920 10731
271
6
5322 442 01532 Cover 32mm 1
Only for PA2654/x6 and older
271
6
5322 442 01533 Cover 44-56mm 1 1
Only for PA2654/x6 and older
271
6
9498 396 00995 Cover 32-56mm 1 1 1
Only for PA2654/x7 and newer
272
6
4022 516 05180 Distance bush 12 8
272
6
4022 516 05190 Distance bush 16 8
272
6
4022 516 05200 Distance bush 24 8

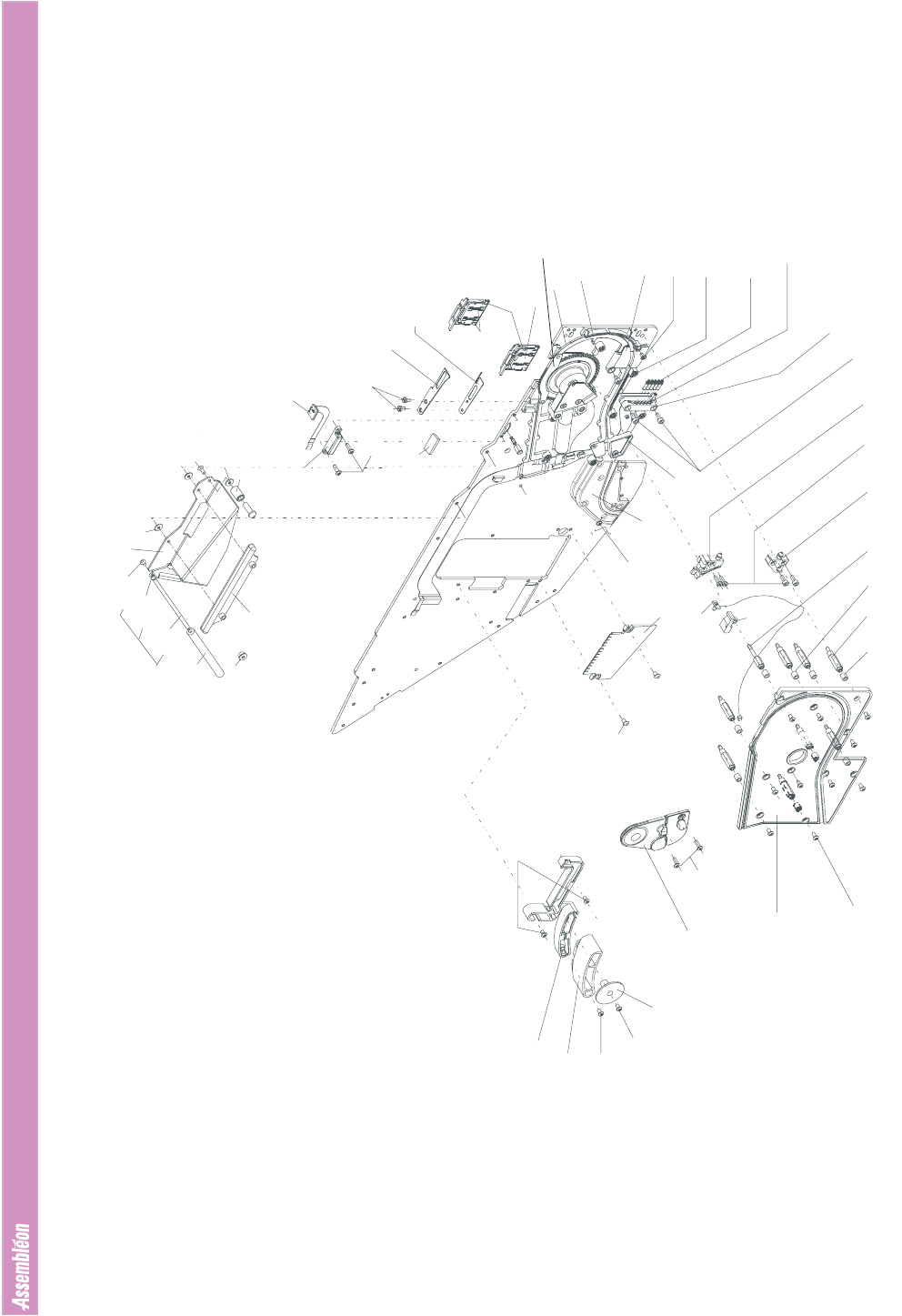

Spare Parts Lists ITF 3-24
Module Number: 6 (continued) Module Name: Mounting Plate Assembly
6-14 (assy)
141
12121
24
275273
274
272
13
14-3
332
384
341
333
332
331
333
301
302
390
181
400
358
394
401
295
293
351
358
393
394
20-1
20-3
361
392
294
292
291
6-20(assy)
20-2
296
193
192
281 (12-56mm)
281 (8mm)
282
191
194
17-2
17-1
17
271
276
182
313
402
20-4
4022 593 51431 Option Manual
07.01 Feeder Service Shop 3-25
Module Number: 6 (continued) Module Name: Mounting Plate Assembly
Quantity per module
8 12 16 24 32 44 56 Feeder width (mm)
Item No.
Part of
item No. Ordering code
Description
PA2654/0y
PA2645/1y
PA2654/2y
PA2654/3y
PA2654/4y
PA2654/5y
PA2654/6y
PA number of feeder width
Module Number: 6 Mounting Plate Assembly Remarks
272
6
4022 516 05210 Distance bush 32 8
273
6
4022 516 05240 Distance bush 12-1 1
273
6
4022 516 05250 Distance bush 16-1 1
273
6
4022 516 05260 Distance bush 24-1 1
274
6
9498 396 00996 Cover Spacer 24 1
Only for project feeder 9466 920 10731
274
6
9498 396 00997 Cover Spacer 32 1
Only for PA2654/x7 and newer
274
6
4022 516 05490 Cover Spacer 44 8
Only for PA2654/x6 and older
274
6
9498 396 00998 Cover Spacer 44 1
Only for PA2654/x7 and newer
274
6
4022 516 05500 Cover Spacer 56 8
Only for PA2654/x6 and older
275
6
9498 396 00999 Cover Spacer 56 1
Only for PA2654/x7 and newer
275
6
9498 396 01000 Cover Spacer front 24 1
Only for PA2654/x7 and newer
275
6
9498 396 01001 Cover spacer front 32 1
Only for PA2654/x7 and newer
275
6
9498 396 01002 Cover spacer front 44 1
Only for PA2654/x7 and newer
275
6
9498 396 01003 Cover spacer front 56 1
Only for PA2654/x7 and newer
276
6
5322 502 14405 Pan schr St Zn M3x8 10
Standard packing unit: 25
276
6
5322 502 21213 Pan schr St Zn M3x12 9
Standard packing unit: 25
276
6
5322 502 14155 Pan schr St Zn M3x16 9
Standard packing unit: 10
276
6
5322 502 14536 Pan schr St Zn M3x25 9
Standard packing unit: 10
276
6
5322 502 14617 Pan schr St Zn M3x35 9
Standard packing unit: 10
276
6
5322 502 14403 Pan schr St Zn M3x6 9 9
Standard packing unit: 25
281
6
9498 396 00974 Peel-off plate 8mm 1
281
6
4022 516 07290 Peel-off plate 8mm 1
281
6
4022 516 08200 Peel-off plate 12mm 1
Only for PA2654/x6: special modified peel-off plate with slit.
281
6
4022 516 07480 Peel-off plate 12mm 1
281
6
5322 466 12047 Peel-off plate 16mm 1
281
6
4022 516 07500 Peel-off plate 24mm 1
281
6
4022 516 07510 Peel-off plate 32mm 1
281
6
4022 516 07520 Peel-off plate 44mm 1
281
6
4022 516 07530 Peel-off plate 56mm 1
