Spare P arts Lists ITF 3-4 Mod ule Number: In tellig en t T ape F eeder Co mplete M odul e Nam e: New an d repair ed complete feed er s 1
4022 593 51431 Option Manual
07.01 Feeder Service Shop 3-3
Spare Parts ITF & TTF Feeders
3.3 Spare Parts Lists ITF
The fields in the spare parts list have the following meaning:
Item No.: Position Identification.
Part of Item No.: Module the part belongs to.
Ordering Code: The order code at Assembléon.
Description: Description of the article.
Quantity per module: The quantity of the part in one module. Because this
manual covers all ITF feeders, all separate widths and
versions are mentioned.
Width and version is indicated by the PA number of the
feeder (see also see FIGURE 3-1):
•First four digits of PA number indicate the type of feeder
(intelligent tape feeder).
•Second to last digit of PA number indicates the width of
the feeder.
•Last digit of PA number indicates the version of the
feeder.
The PA number can be located according to see FIGURE 3-1.
Remarks: 1.Comment or specific information.
2.Standard Packing Unit: Minimum packing quantity
received at ordering.

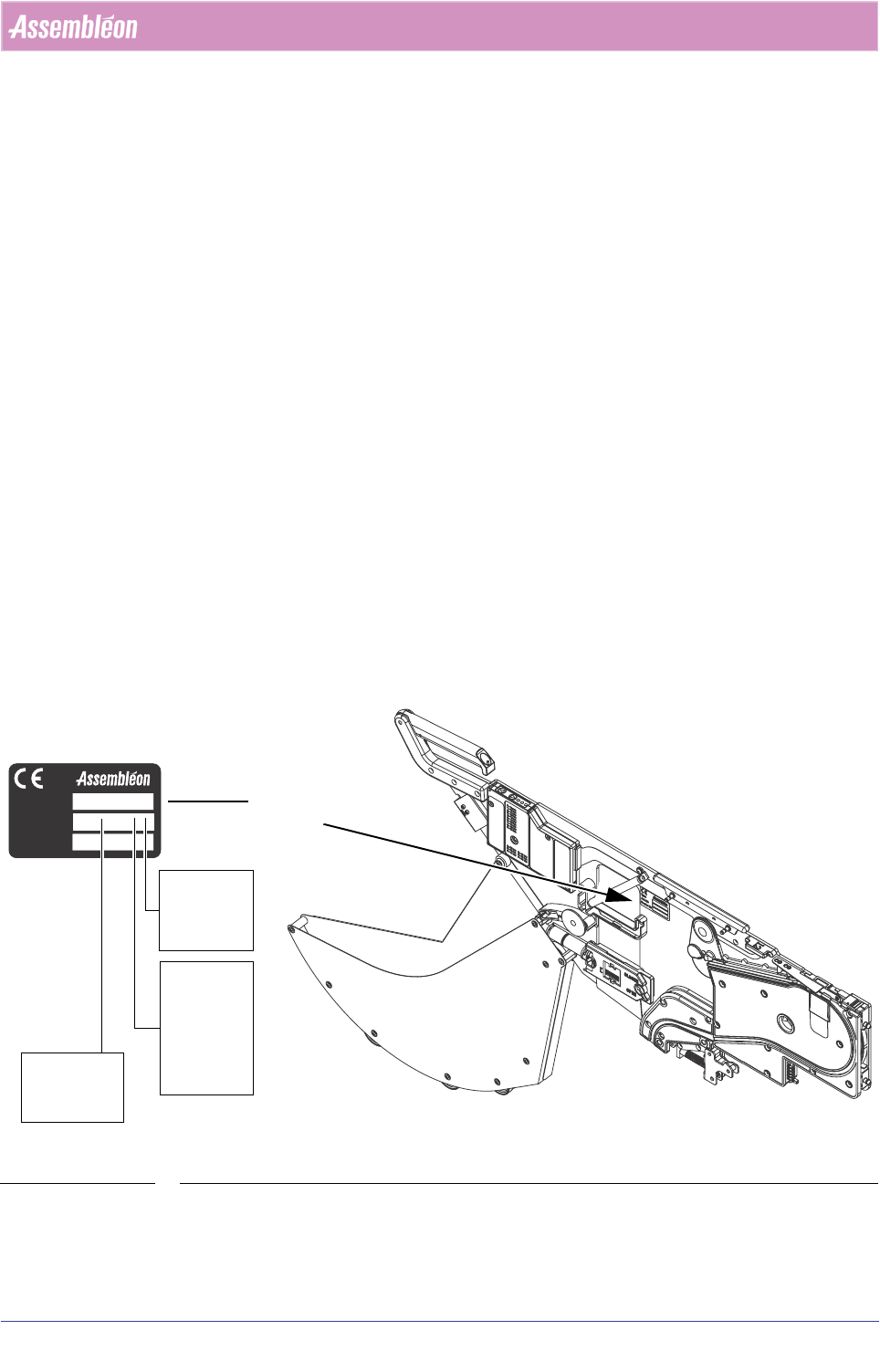

FIGURE 3-1
Location of
sticker
Ty pe
Art. No
Feeder No
PA2654/xy
0 = Release 1
5 = Release 2
6 = Release 3
7 = Release 4
0 = 8 mm
1 = 12 mm
2 = 16 mm
3 = 24 mm
4 = 32 mm
5 = 44 mm
6 = 56 mm
2654 = ITF 2
(Intelligent tape
feeder)

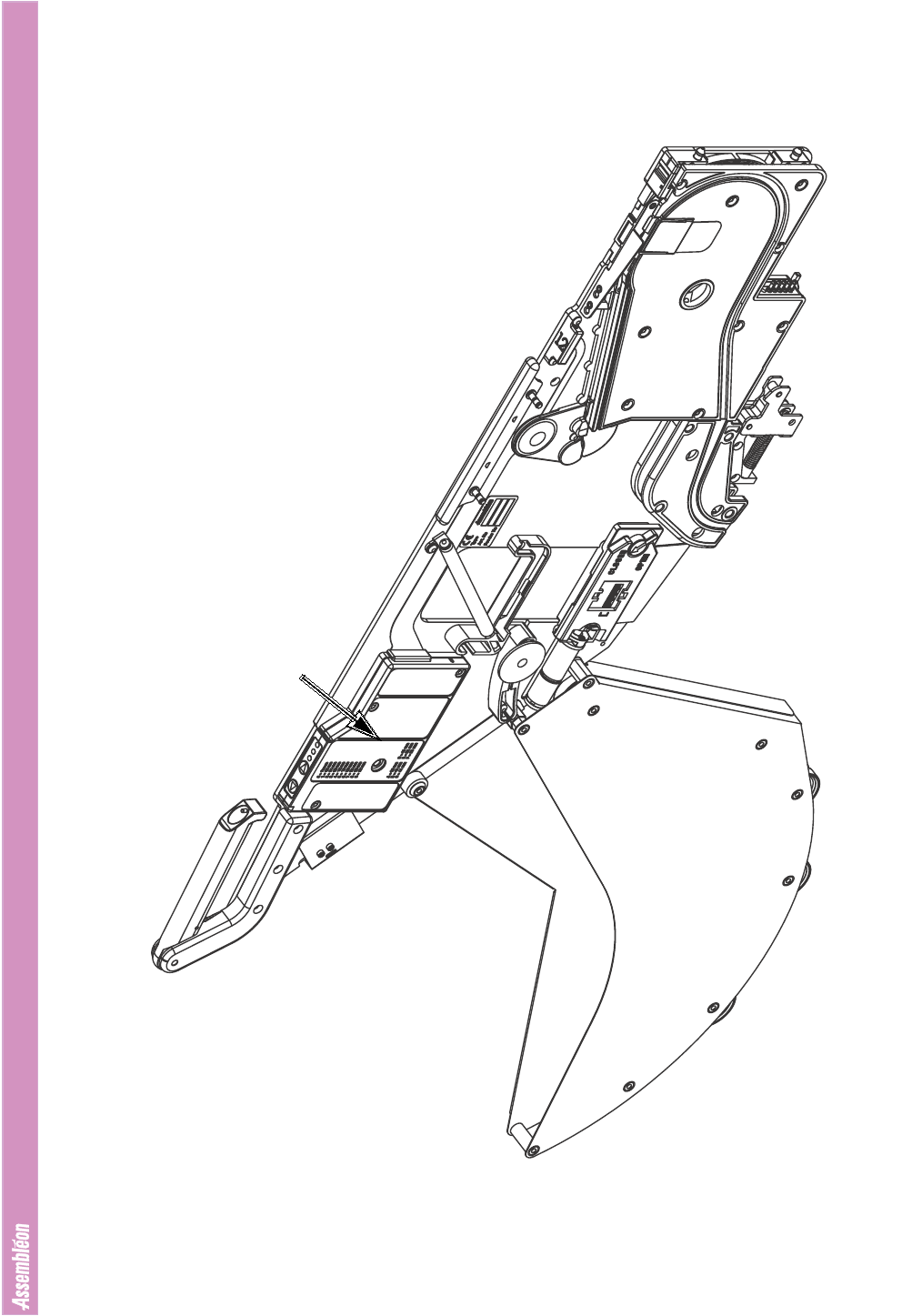

Spare Parts Lists ITF 3-4
Module Number: Intelligent Tape Feeder Complete Module Name: New and repaired complete feeders
1
4022 593 51431 Option Manual
07.01 Feeder Service Shop 3-5
Module Number: Intelligent Tape Feeder Complete Module Name: New and repaired complete feeders
Quantity per module
8 12 16 24 32 44 56 Feeder width (mm)
Item No.
Part of
item No. Ordering code
Description
PA2654/0y
PA2645/1y
PA2654/2y
PA2654/3y
PA2654/4y
PA2654/5y
PA2654/6y
PA number of feeder width
Complete Feeder Module Name: Complete Feeder Remarks
Tape feeder 8mm, release 4 1
PA2654/x7: new feeder
9498 396 01278 Tape feeder 24mm, release 4 1
PA2654/x7: new feeder, standard delivered with 13" reel holder assembly
9498 396 01279 Tape feeder 32mm, release 4 1
PA2654/x7: new feeder
9498 396 01280 Tape feeder 44mm, release 4 1
PA2654/x7: new feeder
9498 396 01281 Tape feeder 56mm, release 4 1
PA2654/x7: new feeder
Tape feeder 8mm, release 4
1 PA2654/x7: customized repaired feeder
9498 398 01278 Tape feeder 24mm, release 4 1
PA2654/x7: customized repaired feeder
9498 398 01279 Tape feeder 32mm, release 4 1
PA2654/x7: customized repaired feeder
9498 398 01280 Tape feeder 44mm, release 4 1
PA2654/x7: customized repaired feeder
9498 398 01281 Tape feeder 56mm, release 4 1
PA2654/x7: customized repaired feeder
9498 397 00283
Tape feeder 8mm, release 2 and 3
1
PA2654/x5 and PA2654/x6: swap repaired feeder
9498 397 00284 Tape feeder 12mm, release 2 and 3 1
PA2654/x5 and PA2654/x6: swap repaired feeder
9498 397 00285 Tape feeder 16mm, release 2 and 3 1
PA2654/x5 and PA2654/x6: swap repaired feeder
9498 397 00286 Tape feeder 24mm, release 2 and 3 1
PA2654/x5 and PA2654/x6: swap repaired feeder
9498 397 00287 Tape feeder 32mm, release 2 and 3 1
PA2654/x5 and PA2654/x6: swap repaired feeder
9498 397 00288 Tape feeder 44mm, release 2 and 3 1
PA2654/x5 and PA2654/x6: swap repaired feeder
9498 397 00289 Tape feeder 56mm, release 2 and 3 1
PA2654/x5 and PA2654/x6: swap repaired feeder
9498 398 00283
Tape feeder 8mm, release 2 and 3
1
PA2654/x5 and PA2654/x6: customized repaired feeder
9498 398 00284 Tape feeder 12mm, release 2 and 3 1
PA2654/x5 and PA2654/x6: customized repaired feeder
9498 398 00285 Tape feeder 16mm, release 2 and 3 1
PA2654/x5 and PA2654/x6: customized repaired feeder
9498 398 00286 Tape feeder 24mm, release 2 and 3 1
PA2654/x5 and PA2654/x6: customized repaired feeder
9498 398 00287 Tape feeder 32mm, release 2 and 3 1
PA2654/x5 and PA2654/x6: customized repaired feeder
9498 398 00288 Tape feeder 44mm, release 2 and 3 1
PA2654/x5 and PA2654/x6: customized repaired feeder
9498 398 00289 Tape feeder 56mm, release 2 and 3 1
PA2654/x5 and PA2654/x6: customized repaired feeder
