4022 593 51431 Option Manual 07.01 Feeder Service Shop 3-17 Modul e Number: 5 Module Name : Sprock et Wheel Drive assembly NOTE: To guarantee 100% accuracy of the feeder, the preferred method to replace a sprocket wheel,…
Spare Parts Lists ITF 3-16

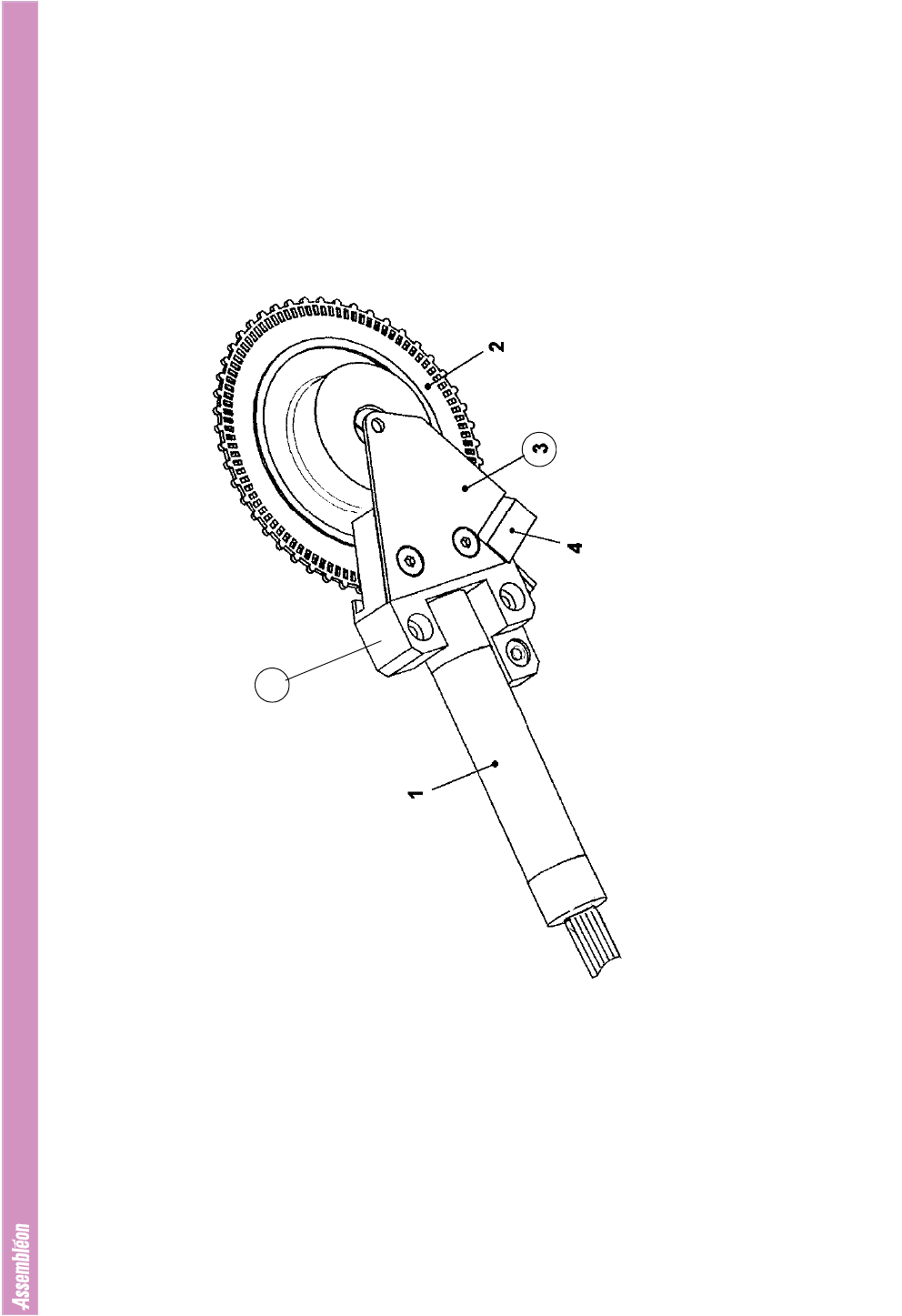

Module Number: 5 Module Name: Sprocket Wheel Drive Assembly
5
4022 593 51431 Option Manual
07.01 Feeder Service Shop 3-17
Module Number: 5 Module Name: Sprocket Wheel Drive assembly
NOTE: To guarantee 100% accuracy of the feeder, the preferred method to replace a sprocket wheel, sprocket wheel sensor and/or index
motor is to send the feeder to an authorised repair shop.
After exchange, approx.90% of all repaired 8 mm feeders used for 0402 components will perform within expectations. Otherwise
the feeder has to be send back to the repair shop! For 8 mm feeders with larger components (0603) no problems are expected.
For feeders larger than 8 mm this method can be used without any problem.
Quantity per module
8 12 16 24 32 44 56 Feeder width (mm)
Item No.
Part of
item No. Ordering code
Description
PA2654/0y
PA2645/1y
PA2654/2y
PA2654/3y
PA2654/4y
PA2654/5y
PA2654/6y
PA number of feeder width
Module Number: 5 Module Name: Sprocket Wheel Drive assembly Remarks
1 4022 594 10050 Feeder motor KS (index) 8 mm 1
To guarantee 100% accuracy of the feeder, the preferred method to replace a
sprocket wheel, sprocket wheel sensor and/or index motor is to send the feeder
to an authorised repair shop
1 4022 594 10060 Feeder motor MG 12-56 mm 111111
To guarantee 100% accuracy of the feeder, the preferred method to replace a
sprocket wheel, sprocket wheel sensor and/or index motor is to send the feeder
to an authorised repair shop
2 4022 516 12300 Sprocket wheel spare kit 1111111
Standard packing unit: 5
3 4022 516 04680 Retaining plate 1111111
Only for PA2654/x6 and older
3 9498 396 00987 Retaining plate 1111111
Only for PA2654/x7 and newer
4 4022 594 10030 Sprocket wheel sensor 1111111
5 4022 516 04980 Motor support block 1111111
Only for PA2654/x6 and older
9498 396 00988 Motor support block 1111111
Only for PA2654/x7 and newer
Spare Parts Lists ITF 3-18

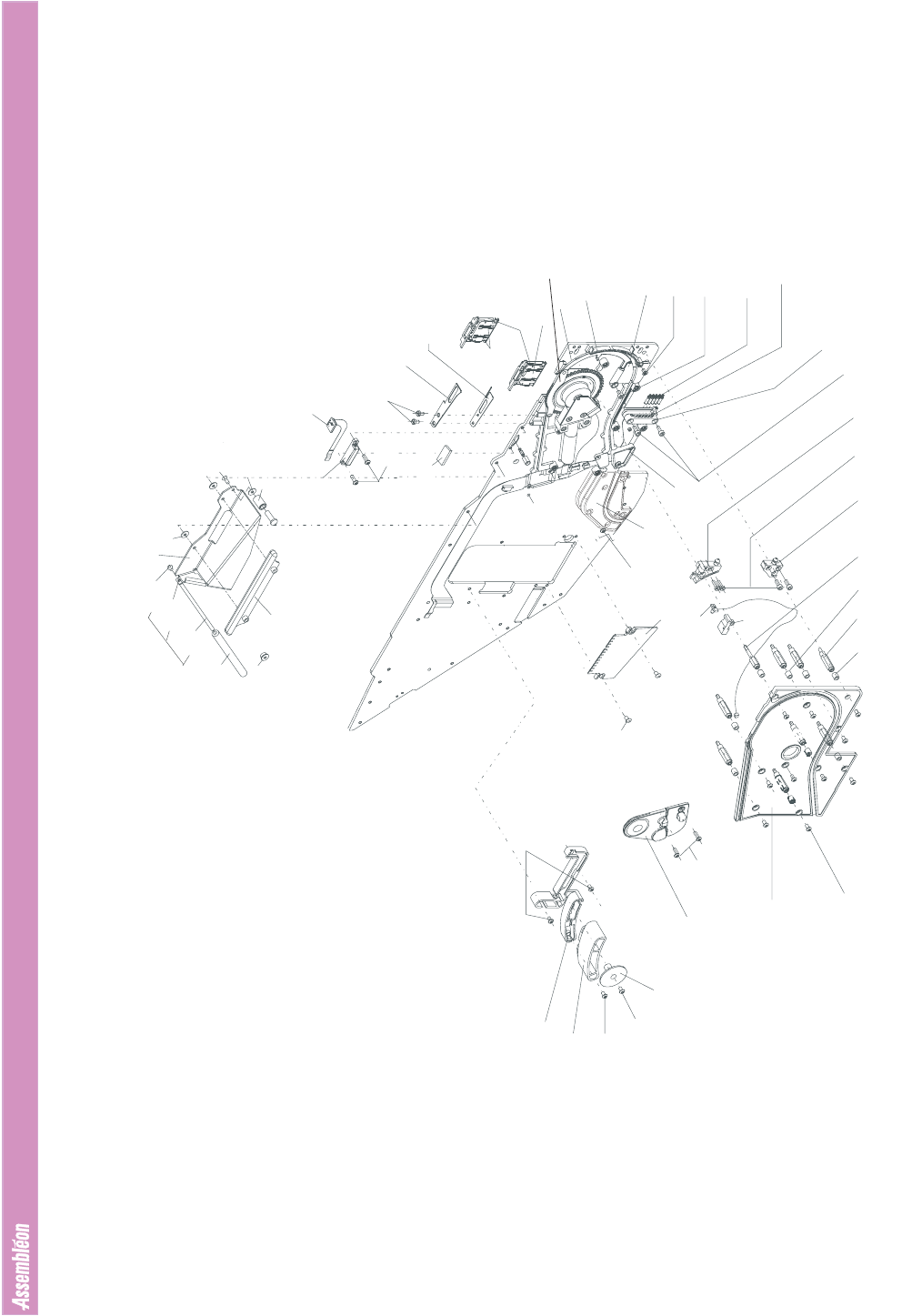

Module Number: 6 Module Name: Mounting Plate Assembly
6-14 (assy)
141
12121
24
275273
274
272
13
14-3
332
384
341
333
332
331
333
301
302
390
181
400
358
394
401
295
293
351
358
393
394
20-1
20-3
361
392
294
292
291
6-20(assy)
20-2
296
193
192
281 (12-56mm)
281 (8mm)
282
191
194
17-2
17-1
17
271
276
182
313
402
20-4
