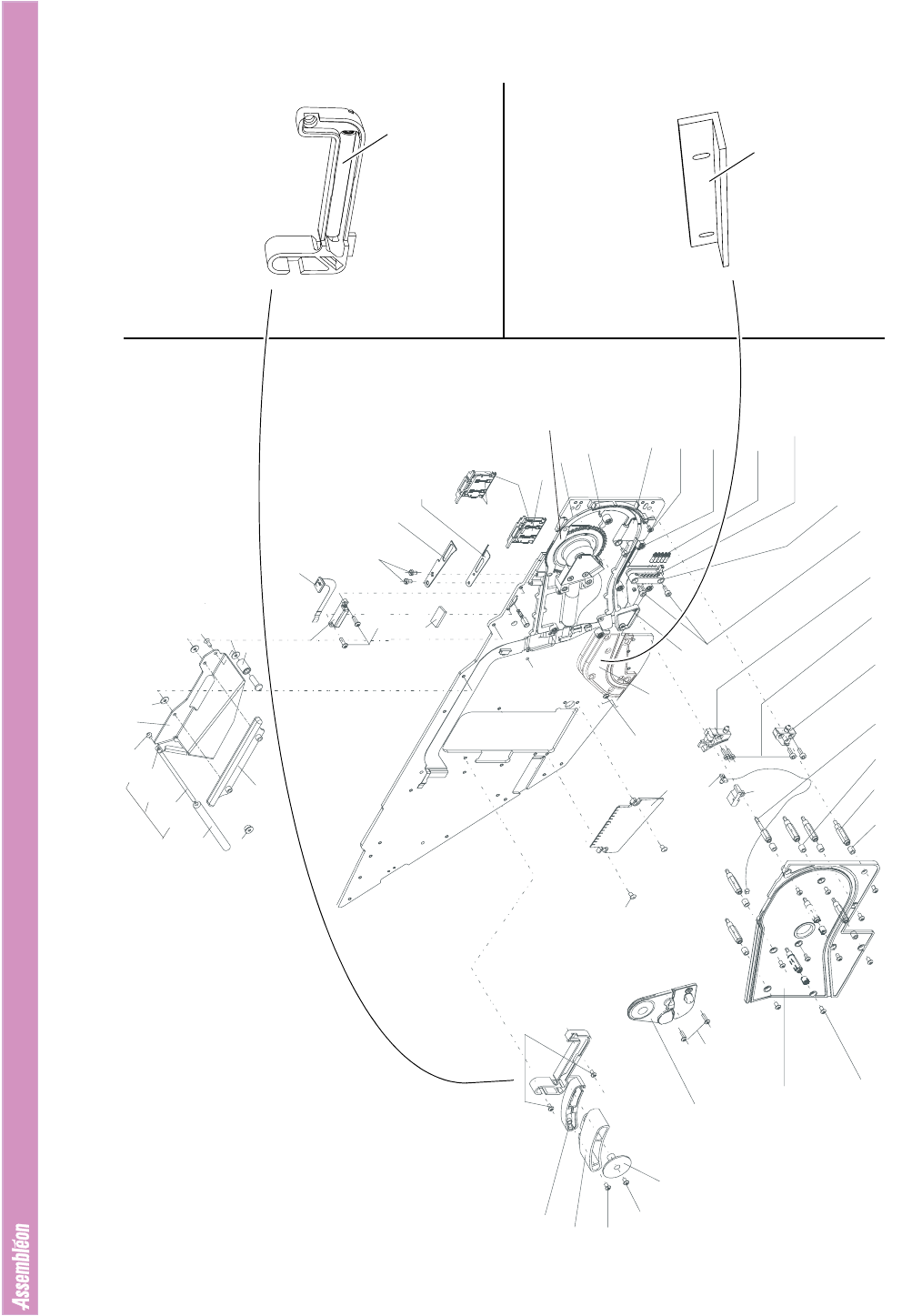

Spare Parts Lists ITF 3-26
Module Number: 6 (continued) Module Name: Mounting Plate Assembly
6-14 (assy)
141
12121
24
275273
274
272
13
14-3
332
384
341
333
332
331
333
301
302
390
181
400
358
394
401
295
293
351
358
393
394
20-1
20-3
361
392
294
292
291
6-20(assy)
20-2
296
193
192
281 (12-56mm)
281 (8mm)
282
191
194
17-2
17-1
17
271
276
182
313
402
20-4
301
297
4022 593 51431 Option Manual
07.01 Feeder Service Shop 3-27
Module Number: 6 (continued) Module Name: Mounting Plate Assembly
Quantity per module
8 12 16 24 32 44 56 Feeder width (mm)
Item No.
Part of
item No. Ordering code
Description
PA2654/0y
PA2645/1y
PA2654/2y
PA2654/3y
PA2654/4y
PA2654/5y
PA2654/6y
PA number of feeder width
Module Number: 6 Mounting Plate Assembly Remarks
282
6
9498 396 00578 Screw peel-off plate Torx 2
Only for PA2654/x5 and newer
282
6
5322 502 14615 Tap scr F St Zn 2,2x6,5 2 2 1
Only for PA2654/x6 and older, standard packing unit: 10
282 6 5322 502 14619 Csk St Zn 2,2x8 2 2 2 2
For 8mm: all PA numbers, for other feeder width: only for PA2654/x6 and older,
standard packing unit: 10
282
6
9498 396 01018 Csk Scr St Zn M2x4 2222
Only for PA2654/x7 and newer
291 6 4022 516 04630 Top foil routing block 1111
For 16 mm: only for PA2654/x6 and older, other feeder widths: all versions
297
6
9498 396 00439 Top foil routing assy 1111
Only for PA2654/x7 and newer
292
6
4022 516 04620 Top foil routing block 1 1 1
Only for PA2654/x6 and older
293
6
4022 516 04940 Retaining wafer 8mm 1
293
6
4022 516 04950 Retaining wafer 12mm 1
293
6
4022 516 04960 Retaining wafer 16mm 1
293
6
4022 516 04970 Retaining wafer 24mm 1
294
6
5322 502 14405 Pan schr St Zn M3x8 1111
Standard packing unit: 25
294
6
5322 502 21212 Pan schr St Zn M3x10 1 1 1
Standard packing unit: 25
295
6
5322 502 21213 Pan schr St Zn M3x12 1 1
Standard packing unit: 25
295
6
5322 502 14155 Pan schr St Zn M3x16 1
Standard packing unit: 10
295
6
5322 502 14536 Pan schr St Zn M3x25 1
Standard packing unit: 10
296
6
5322 502 21211 Pan schr St Zn M3x5 2222222
Standard packing unit: 25
301
6
9498 396 00557 Tape guide (metal) 1111111
see SI-FDR-421
301
6
9498 396 00290 Tape guide 8mm 1
Only with tape Cutter
301
6
9498 396 00291 Tape guide 12mm 1
Only with tape Cutter
301
6
9498 396 00292 Tape guide 16mm 1
Only with tape Cutter
301
6
9498 396 00293 Tape guide 24mm 1
Only with tape Cutter
301
6
9498 396 00294 Tape guide 32mm 1
Only with tape Cutter
301
6
9498 396 00295 Tape guide 44mm 1
Only with tape Cutter
301
6
9498 396 00296 Tape guide 56mm 1
Only with tape Cutter
302
6
5322 502 21211 Pan schr St Zn M3x5 2222222
Standard packing unit: 25
313
6
2522 267 17002 Csk scr Stl St M2x4 111111
Only for PA2654/x6 and newer
331
6
4022 516 04280 Cover unit 1111111
332
6
5322 502 21211 Pan schr St Zn M3x5 2222222
Standard packing unit: 25
333
6
5322 502 14419 Csk scr Stl St M3x5 2222222
Standard packing unit: 25

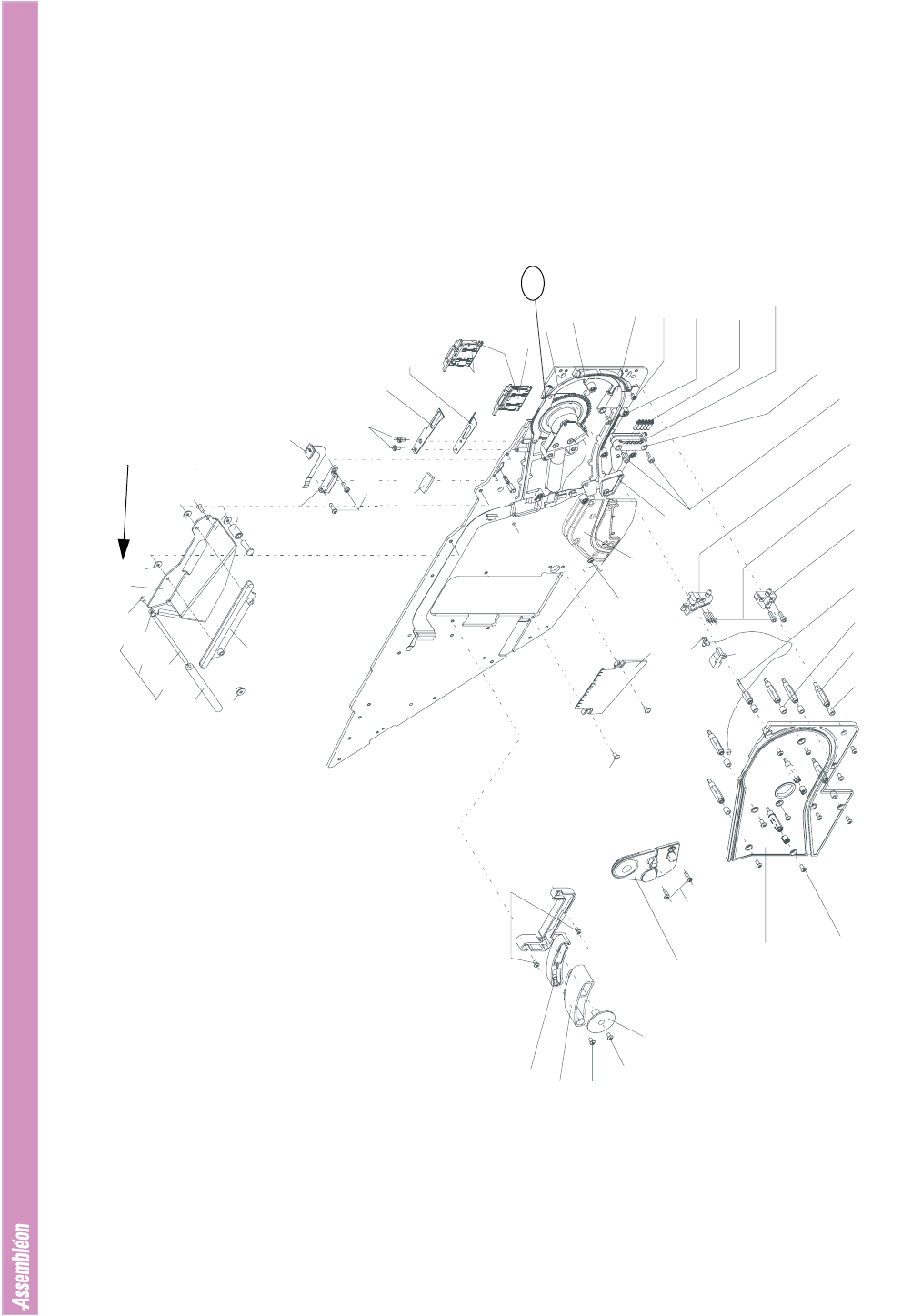

Spare Parts Lists ITF 3-28
Module Number: 6 (continued) Module Name: Mounting Plate Assembly
6-14 (assy)
141
12121
24
275273
274
272
13
14-3
332
384
341
333
332
331
333
301
302
390
181
400
358
394
401
295
293
351
358
393
394
20-1
20-3
361
392
294
292
291
6-20(assy)
20-2
296
193
192
281 (12-56mm)
281 (8mm)
282
191
194
17-2
17-1
17
271
276
182
313
402
20-4
Bracket 393 delivered as one assembly including
items 394, 400, 401 and 402
