4022 593 51431 Option Manual 07.01 Feeder Service Shop 3-9 Modul e Number: 1 Modul e Name: Con trol Unit NOTE: Item 213 contains programm ed data for: Feeder Serial Numb er, Pick count, Sprocket Teeth calibration data (f…
Spare Parts Lists ITF 3-8

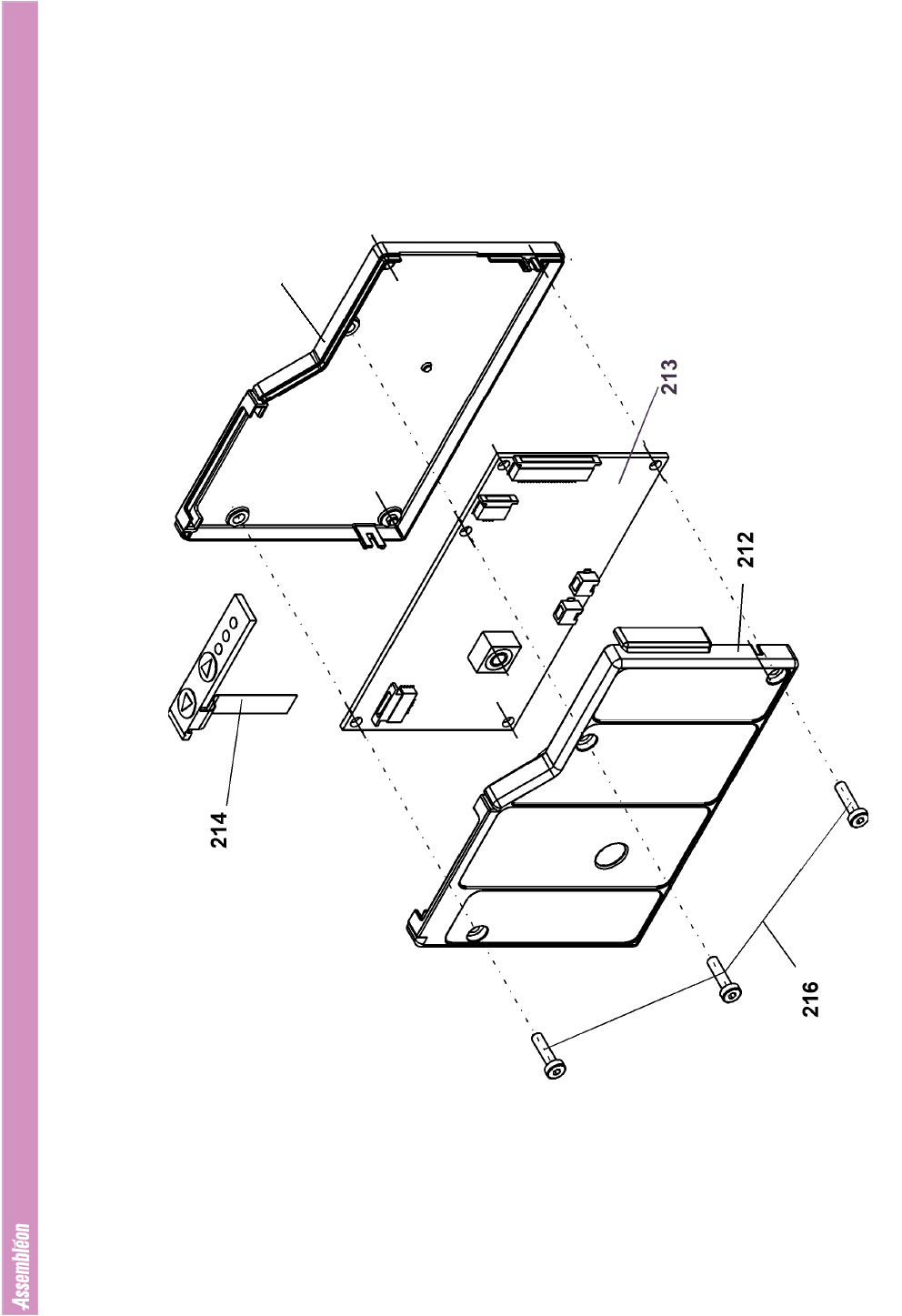

Module Number: 1 Module Name: Control Unit
211
4022 593 51431 Option Manual
07.01 Feeder Service Shop 3-9
Module Number: 1 Module Name: Control Unit
NOTE: Item 213 contains programmed data for: Feeder Serial Number, Pick count, Sprocket Teeth calibration data (for each individual
teeth). Replacement is only possible with analysis tool PA 2849/50 or calibration tool PA 2849/70.
Quantity per module
8 12 16 24 32 44 56 Feeder width (mm)
Item No.
Part of
item No. Ordering code
Description
PA2654/0y
PA2645/1y
PA2654/2y
PA2654/3y
PA2654/4y
PA2654/5y
PA2654/6y
PA number of feeder width
Module Number: 1 Module Name: Control Unit Remarks
211 1 9498 396 01307 Print cover bottom 1111111
212
1
9498 396 00371 Print cover top 1111111
214
1
5322 216 04621 User interface 1111111
216
1
5322 502 21213 Torx screw M3x12 3333333
Standard packing unit: 25
213 1 4022 594 10010 PCB controller 8 mm 1 Only for PA2654/x6 and newer. Contains programmed data for: Feeder Serial
Number, Pick count, Sprocket Teeth calibration data (for each individual teeth).
Replacement is only possible with repair tool PA 2849/30
213 1 4022 594 10020 PCB controller 12-56 mm 111111Only for PA2654/x6 and newer. Contains programmed data for: Feeder Serial
Number, Pick count, Sprocket Teeth calibration data (for each individual teeth).
Replacement is only possible with repair tool PA 2849/30
Spare Parts Lists ITF 3-10
Module Number: 2-22 Module Name: Reel Holder Assembly
2-23
2-22
22-6
22-3
22-5
22-225
22-221
22-222
22-223
