4022 593 51431 Option Manual
07.01 Feeder Service Shop 3-19
Module Number: 6 Module Name: Mounting Plate Assembly
Quantity per module
8 12 16 24 32 44 56 Feeder width (mm)
Item No.
Part of
item No. Ordering code
Description
PA2654/0y
PA2645/1y
PA2654/2y
PA2654/3y
PA2654/4y
PA2654/5y
PA2654/6y
PA number of feeder width
Module Number: 6 Mounting Plate Assembly Remarks
12
6
5322 693 11518 Position unit, top 8mm 1
12
6
5322 693 11523 Position unit, top 12mm 1
12
6
5322 693 11525 Position unit, top 16mm 1
12
6
5322 693 11527 Position unit, top 24mm 1
For all versions except 9466 920 10731
12
6
9498 396 00989 Position unit, top 24mm 1
Only for project feeder 9466 920 10731
12
6
5322 693 11528 Position unit, top 32mm 1
Only for PA2654/x6 and older
12
6
9498 396 00990 Position unit, top 32mm 1
Only for PA2654/x7 and newer
12
6
5322 693 11531 Position unit, top 44mm 1
Only for PA2654/x6 and older
12
6
9498 396 00991 Position unit, top 44mm 1
Only for PA2654/x7 and newer
12
6
5322 693 11533 Position unit, top 56mm 1
Only for PA2654/x6 and older
12
6
9498 396 00992 Position unit, top 56m 1
Only for PA2654/x7 and newer
13
6
5322 463 11213 Pre-guiding 8&24mm 1 1
13
6
5322 463 11215 Pre-guiding 12mm 1
13
6
5322 463 11216 Pre-guiding 16mm 1
13
6
5322 463 11217 Pre-guiding 32mm 1
13
6
5322 463 11218 Pre-guiding 44mm 1
13
6
5322 463 11219 Pre-guiding 56mm 1
14-3
6-14 9965 000 14444
Contact pins (5 pc) 5555555
Standard packing unit: 5
17
6
9498 396 01387 Tape cover 8mm 1
17
6
5322 442 01529 Tape cover (8mm) 1
Only for PA2654/x6 and older
17
6
4022 516 07200 Tape cover (12-56mm) 1 1
For 24, 32, 44, 56 mm only for PA2654/x6 and older
17
6
5322 442 01526 Tape cover (12-56mm) 111111
Only for PA2654/x0
17
6
9498 396 00993 Tape cover 111111
Only for PA2654/x7 and newer
17-1
6-17
5322 463 11263 Tape cover slide (8mm) 1
17-2
6-17
5322 492 11759 Compression spring (8mm) 2
20-1
6-20
5322 535 10576 Topfoil routing axis 1111111
20-2
6-20
4022 516 05050 Topfoil axis bracket 1
20-2
6-20
4022 516 07240 Topfoil axis bracket 111111
20-3
6-20
5322 502 21211 Pan schr St Zn M3x5 2222222
Standard packing unit: 25
24
6
5322 693 11519 Position unit, bottom 8&24 1 1
24
6
5322 693 11524 Position unit, bottom 12mm 1
Spare Parts Lists ITF 3-20
Module Number: 6 (continued) Module Name: Mounting Plate Assembly

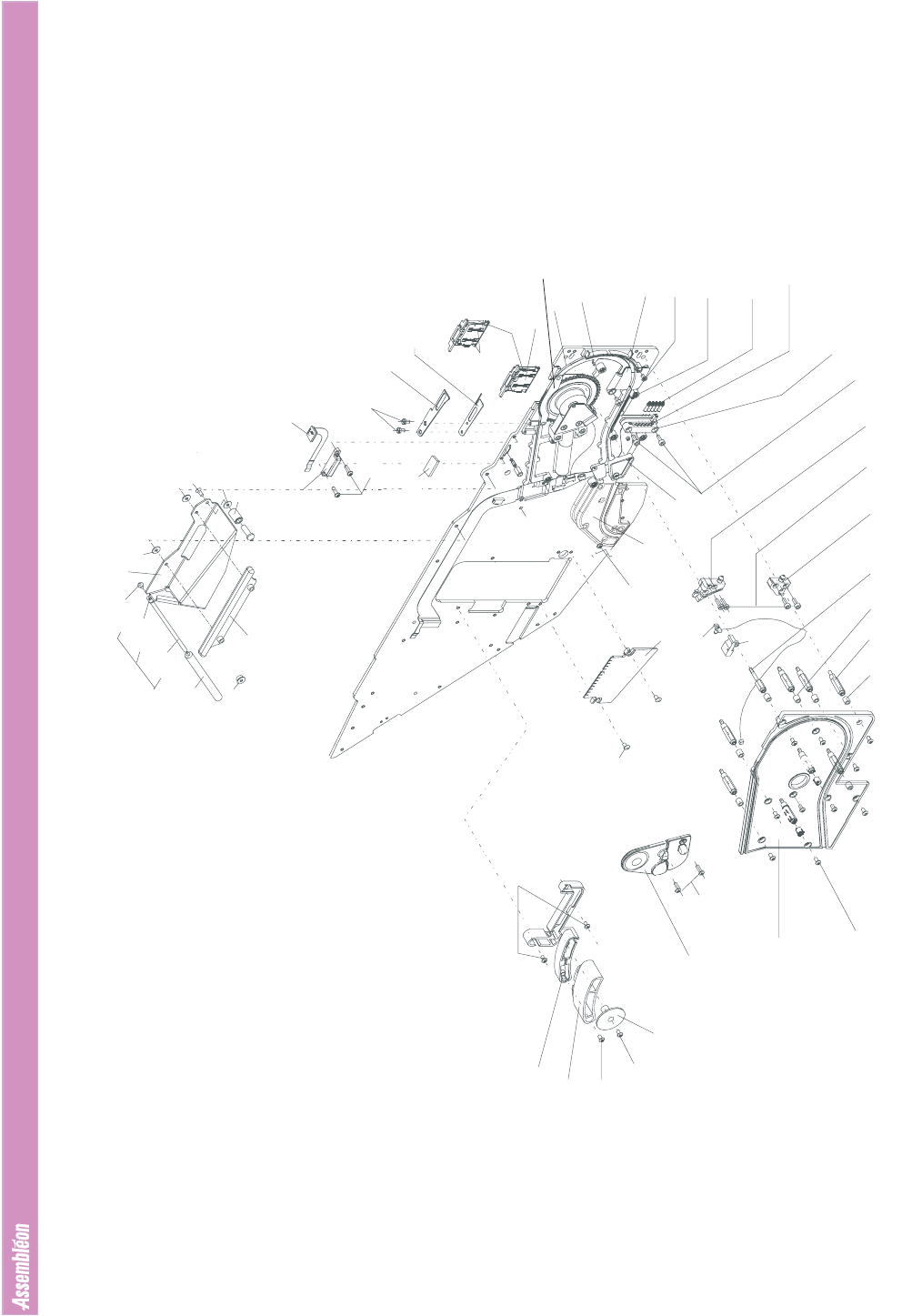

6-14 (assy)
141
12121
24
275273
274
272
13
14-3
332
384
341
333
332
331
333
301
302
390
181
400
358
394
401
295
293
351
358
393
394
20-1
20-3
361
392
294
292
291
6-20(assy)
20-2
296
193
192
281 (12-56mm)
281 (8mm)
282
191
194
17-2
17-1
17
271
276
182
313
402
20-4
4022 593 51431 Option Manual
07.01 Feeder Service Shop 3-21
Module Number: 6 (continued) Module Name: Mounting Plate Assembly
Quantity per module
8 12 16 24 32 44 56 Feeder width (mm)
Item No.
Part of
item No. Ordering code
Description
PA2654/0y
PA2645/1y
PA2654/2y
PA2654/3y
PA2654/4y
PA2654/5y
PA2654/6y
PA number of feeder width
Module Number: 6 Mounting Plate Assembly Remarks
24
6
5322 693 11526 Position unit, bottom16mm 1
24
6
5322 693 11529 Position unit, bottom 32mm 1
24
6
5322 693 11532 Position unit, bottom 44mm 1
24
6
5322 693 11534 Position unit, bottom 56mm 1
121
6
5322 502 14405 Pan schr St Zn M3x8 4
Standard packing unit: 25
121
6
5322 502 21212 Pan schr St Zn M3x10 4 4
Standard packing unit: 10
121
6
5322 502 21213 Pan schr St Zn M3x12 4 4 4
Standard packing unit: 25
121
6
5322 502 14155 Pan schr St Zn M3x16 4
Standard packing unit: 10
141
6
5322 502 21212 Pan schr St Zn M3x10 2 2 2
Standard packing unit: 25
141
6
5322 502 21213 Pan schr St Zn M3x12 2 2
Standard packing unit: 25
141
6
5322 502 14616 Pan schr St Zn M3x14 2
Standard packing unit: 5
141
6
5322 502 14155 Pan schr St Zn M3x16 2
Standard packing unit: 10
181
6
5322 132 00103 Transmitting sensor 8mm 1
181
6
5322 132 00105 Transmitting sensor 12mm 1
181
6
5322 132 00107 Transmitting sensor 16mm 1
181
6
5322 132 00109 Transmitting sensor 24mm 1
181
6
5322 132 00112 Transmitting sensor 32mm 1
181
6
5322 132 00114 Transmitting sensor 44mm 1
181
6
5322 132 00116 Transmitting sensor 56mm 1
182
6
5322 442 01858 Transmitting cover 8mm 1
182
6
5322 442 01857 Transmitting cover12mm 1
182
6
5322 442 01856 Transmitting cover16mm 1
182
6
5322 442 01855 Transmitting cover24mm 1
182
6
5322 442 01854 Transmitting cover32mm 1
182
6
5322 442 01853 Transmitting cover44mm 1
182
6
5322 442 01852 Transmitting cover56mm 1
191
6
5322 502 21211 Pan schr St Zn M3x5 2
Standard packing unit: 25
191
6
5322 502 14405 Pan schr St Zn M3x8 2
Standard packing unit: 25
191
6
5322 502 21212 Pan schr St Zn M3x10 2
Standard packing unit: 25
191
6
5322 502 14616 Pan schr St Zn M3x14 2
Standard packing unit: 5
191
6
5322 502 14155 Pan schr St Zn M3x16 2
Standard packing unit: 10
191
6
5322 502 14618 Pan schr St Zn M3x20 2 2
Standard packing unit: 5
