Option Manual 4022 593 51431
3-30 Feeder Service Shop 07.01
Spare Parts ITF & TTF Feeders
3.4 Module Overview Spare Parts TTF
The spare parts detailed in section 3.6 are divided into the following modules:
❚ Module 1: Control Unit
❚ Module 2: Reel Holder Assembly
❚ Module 3: Topfoil Peel-off Assembly
❚ Module 4: Clamping Lever Assembly
❚ Module 5: Miscellaneous (1) + (2)
3.5 Repair
The parts mentioned in this chapter can be repaired locally. For all other repairs
feeders must be returned to Assembléon for customized repair.
If a feeder is sent back for customized repair, the following conditions are defined:
❚ The life time of the feeder should not exceed 4 years.
❚ The feeder should be returned in the original packaging or should be packed in
such way that damage during transportation is avoided at all times.
❚ If a number of functional parts are missing or wrong parts (self made parts etc.)
are added and adding/replacing those parts exceed the repair price, then the
feeder will be returned without repair. Costs for analysis will be charged! A
notice will be included.
❚ Twin Tape Feeders are defined as customized repair article only. This implies that
the repaired feeder is returned to the originator.
❚ RMA number must be added (available via the region).
❚ Customized repair number must be added.
Feeder type New feeder number
PA 2657/00 9498 396 00151
Feeder type Customized repair TTF
PA 2657/00 9466 032 10101
Feeder type Customized overhaul TTF
PA 2657/00 9466 032 10121
4022 593 51431 Option Manual
07.01 Feeder Service Shop 3-31
Spare Parts ITF & TTF Feeders
3.6 Spare parts lists TTF
The fields in the spare parts list have the following meaning:
Item No.: Position Identification
Part of Item No.: Module the part belongs to.
Ordering Code: The order code at Assembléon.
t.b.d. = to be defined (code number not available yet).
Description: Description of the article
Qty/Mod: Quantity of the part in one module
P1: If ‘Y’, the part must be stocked regionally.
Repair item: Indicates if a part can be repaired or not.
Serv.Instr.: If ‘Y’, a service instruction, maintenance or
replacement instruction is available.
Remarks: 1. Comment or specific information
2. ‘Per Order Article’: article with ordering lead-time
3. Standard Packing Unit: minimum packing quantity
received at ordering.
Spare parts lists TTF 3-32

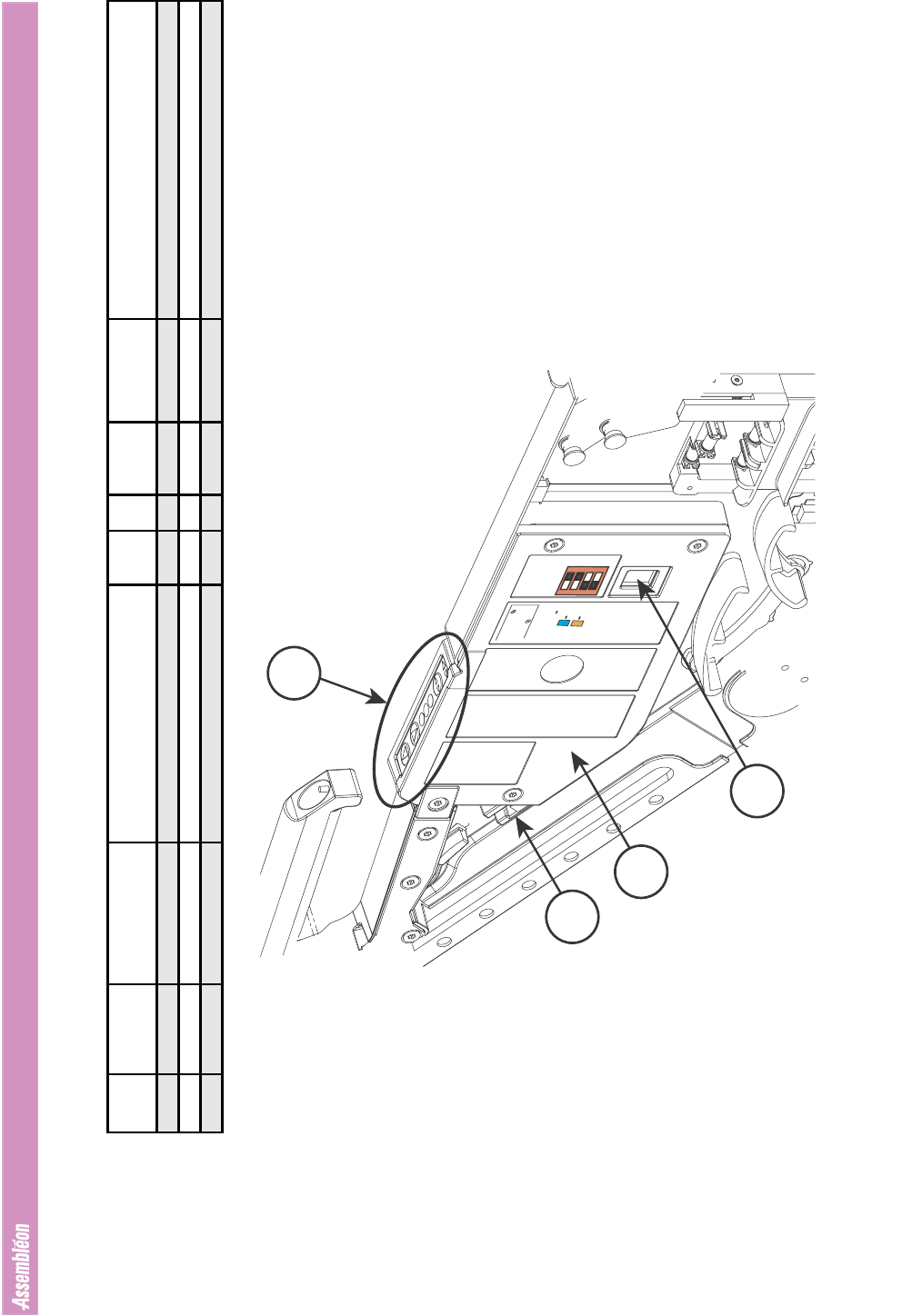

Module Number: 1 Module Name: Control Unit
Item
No.
Part of
Item No.
Ordering Code Description
Qty/
Mod
P1
Repair
Item
Service
Instruction
Remarks
1 1 9498 396 00202 HUMAN INTERFACE 1 Y
3 9498 396 00227 CONTROLLER COVER 1
4 9498 396 01381 SEAL 1
1
2
4
OFF
2mm
2mm
3
2
1
ON
4
mm
4
mm
Re
m
ote
2
1
3
4
