Spare parts lists TTF 3-36

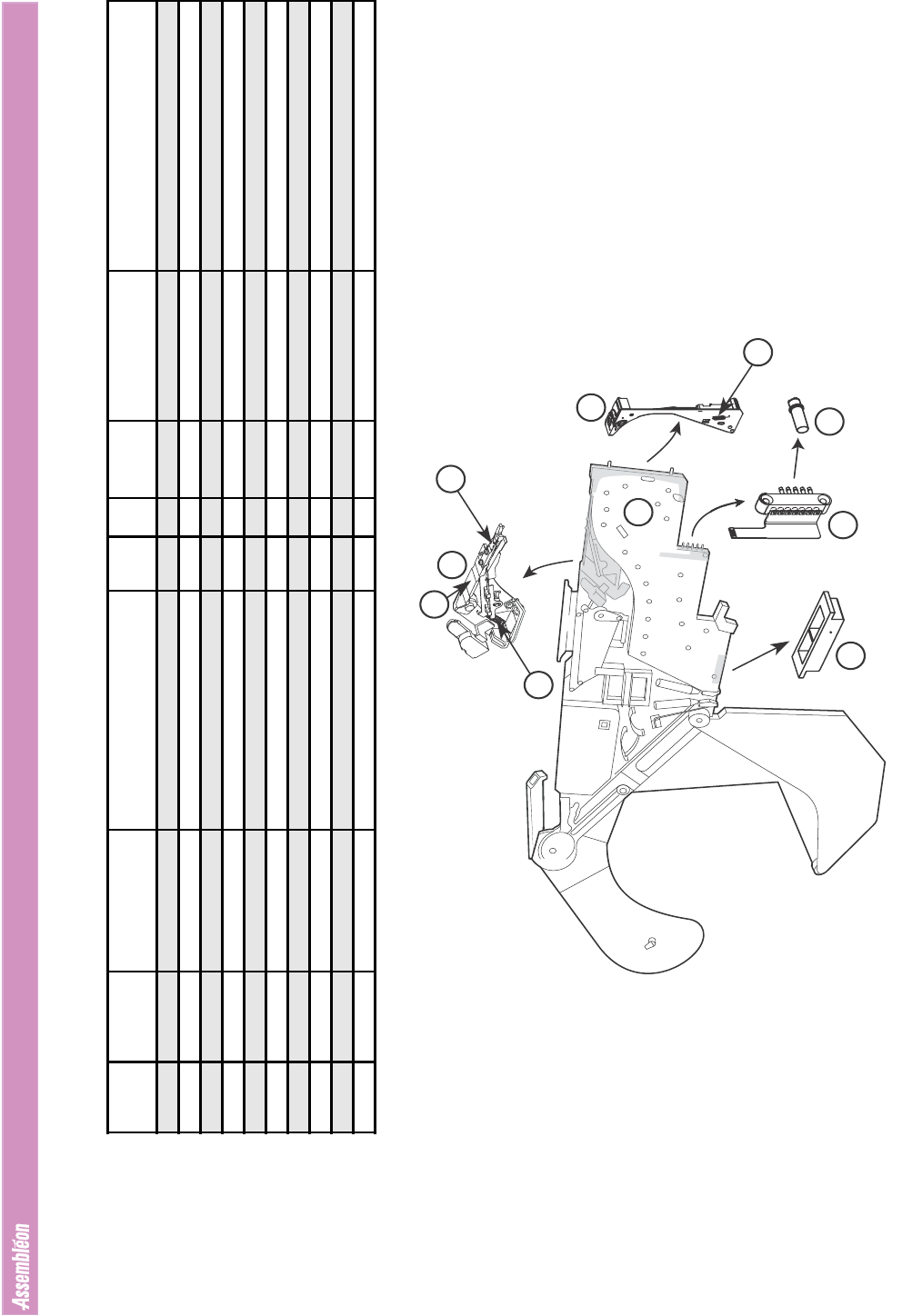

Module Number: 5 Module Name: Miscellaneous (1)
Item No.
Part of
Item No.
Service Code Description
Qty/
Mod
P1
Repair
Item
Service Instruction Remarks
1 5322 535 10575 CONTACT PIN 5 Y Standard package 5
2 9498 396 00230 NOZZLE CATCH LOWER LANE 1 Y
3 9498 396 00223 NOZZLE CATCH UPPER LANE 1 Y
4 9498 396 00187 GUIDE BLOCK 1 Y
5 9498 396 00228 TOP PLATE 1
6 9498 396 00186 CONTACT BLOCK ASSY 1 Y
7 9498 396 01157 LIGHT GUIDE LL 1 Y
8 9498 396 01380 PICTOGRAM 1
9 2 9498 396 00231 SPRING LL 1
10 3 9498 396 00224 SPRING UL 1
1
6
5
4
2
3
10
9
7
8
4022 593 51431 Option Manual
07.01 Feeder Service Shop 3-37

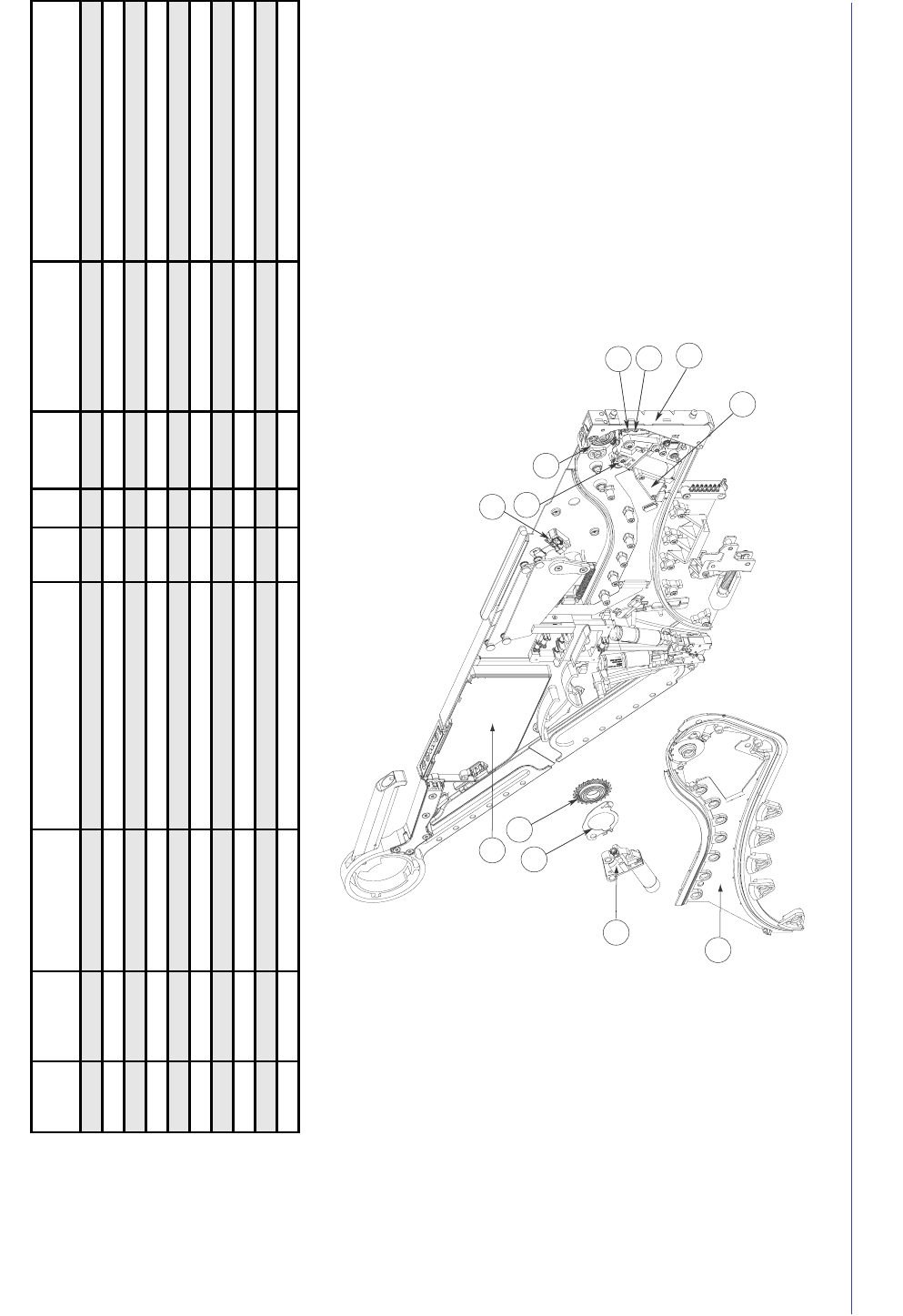

Module Number: 5 Module Name: Miscellaneous (2)
Item No.
Part of
Item No.
Service Code Description
Qty/
Mod
P1
Repair
Item
Service Instruction Remarks
7 9498 396 00225 MIDDLE PLATE 1 Y
8 9498 396 00184 SPROCKET MOTOR 2 Y Calibration required
9 9498 396 00226 SUPPORT SHEET LOWER LANE 1
10 9498 396 00185 SUPPORT SHEET UPPER LANE 1
11 9498 396 00222 SPROCKET WHEEL ASSY 2 Y Calibration required
12 9498 396 00204 INDUCTIVE SENSOR 2 Y Calibration required
13 9498 396 01382 PRINT NOZZLE CATCH 2 Y
14 9498 396 00210 PRINT CONTROLLER-TTF 1 Y Calibration required
15 9498 396 00219 SENSOR SPRING UL 1 Y
16 9498 396 00216 PRINT SPROCKET SENSOR 1 Y
7
8
9
10
10
14
14
11
11
13
13
12
12
12
12
15
15
13
13
16
16
Spare parts lists TTF 3-38
Screws
Tools
Item
No.
Part of
Item No.
Service Code Description
Qty/
Mod
P1
Repair
Item
Service
Instruction
Remarks
1 9498 396 00246 SCREW PT 30X14 8 Standard package 25
2 9498 396 00245 SCREW PT 30X10 16 Standard package 25
3 9498 396 00248 SCREW PT 30X10.9 6 Standard package 10
4 9498 396 00244 SCREW PT 30X8 14 Standard package 25
5 9498 396 00247 SCREW PT 20X10 7 Standard package 25
6 9498 396 00242 SCREW PT 20X6 10 Standard package 25
7 9498 396 00243 SCREW PT 20X4 5 Standard package 10
Item
No.
Part of
Item No.
Service Code Description
Qty/
Mod
P1
Repair
Item
Service
Instruction
Remarks
1 9498 396 01384 SPROCKET MOTOR LIFTER 1
2 9498 396 00524 SIDE PLATE OPENER 1
3 9498 396 00525 ADJUSTMENT KEY NCUL 1
4 9498 396 00526 REMOVING TOOL NCUL 1
