2.8 Disabling the compressed air supply and discharging
the pressure
The compressed air working pressure of the machine is set to 0.50 ± 0.025 MPa (5.0 ± 0.25 bar).
The position of the compressed air unit is shown at item 1 in fig. 2.8 - 1
, page 100. The supply of
compressed air to the machine can be interrupted with the shutoff valve (item 2 in fig. 2.8 - 1
, page
100
).
Use the machine key to release the cover lock.
Lift the cover (see fig. 2.8 - 1, page 100 ).
Turn the lever of the shutoff valve (item 1 of fig. 2.8 - 1, page 100) from the vertical to the
horizontal position.
Monitor the operating pressure manometer (item 5 in fig. 2.8 - 1, page 100 ). When the ma-
chine is switched on, the pressure discharges to 0 MPa (0 bar) within 1 minute.
2
CAUTION
Interruption to compressed air supply!
When the machine is switched on, do not use the stop valve to interrupt the com-
pressed air supply for more than 30 minutes.
If you need to shut off the pneumatic system for longer in order to carry out preven-
tive maintenance or servicing work, you must switch the machine off at the main
switch and disconnect it from the power supply.
2 Operational safety User manual SIPLACE X-Series
2.8 Disabling the compressed air supply and discharging the pressure From software version 706.1 SP1 Version 10/2014
100
2

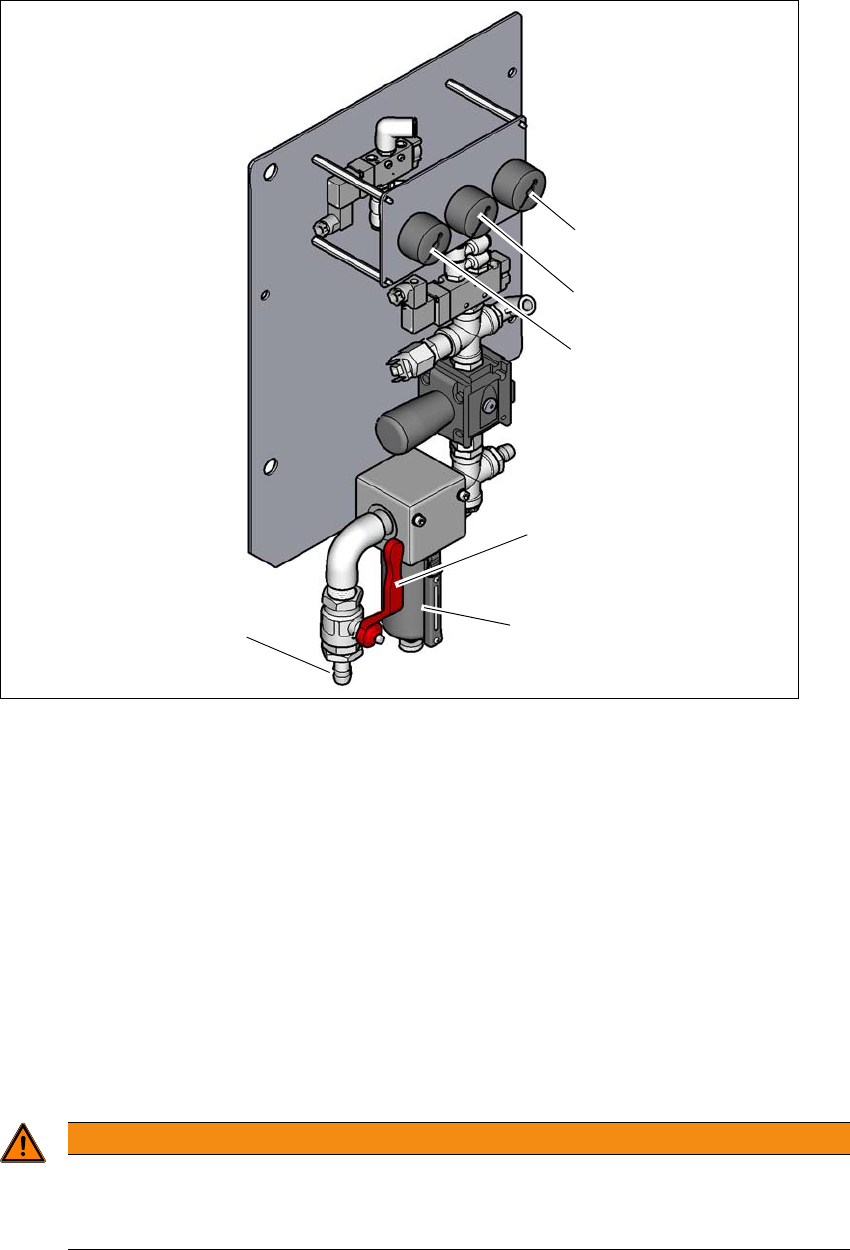

Fig. 2.8 - 1 Compressed air unit on the machine
Legend for fig. 2.8 - 1
(1) Manometer for the machine component supply pressure
Target pressure: 0.5 ± 0.025 MPa, 5 ± 0.25 bar (display range 0 - 1.0 MPa, 0 - 10 bar)
(2) Manometer for supply pressure of gantries 1 to 4
Target pressure: 0.46 ± 0.01 MPa, 4.6 ± 0.1 bar (display range 0 - 1.0 MPa, 0 - 10 bar)
(3) Manometer for inlet pressure
Target pressure: 0.5 - 1.0 MPa, 5 - 10 bar (display range: 0 - 1.0 MPa, 0 - 10 bar)
(4) Stop valve in the "OPEN" position
(5) Compressed air filter
(6) Compressed air connection
2
WARNING
Risk of injuries!
Risk of injuries from pressurized compressed air lines.
NEVER detach compressed air lines while they are still pressurized.
(6)
(1)
(2)
(3)
(5)
(4)
User manual SIPLACE X-Series 2 Operational safety
From software version 706.1 SP1 Version 10/2014 2.9 Energy state of the machine after switching off at the main power switch
101
2.9 Energy state of the machine after switching off at the
main power switch
2

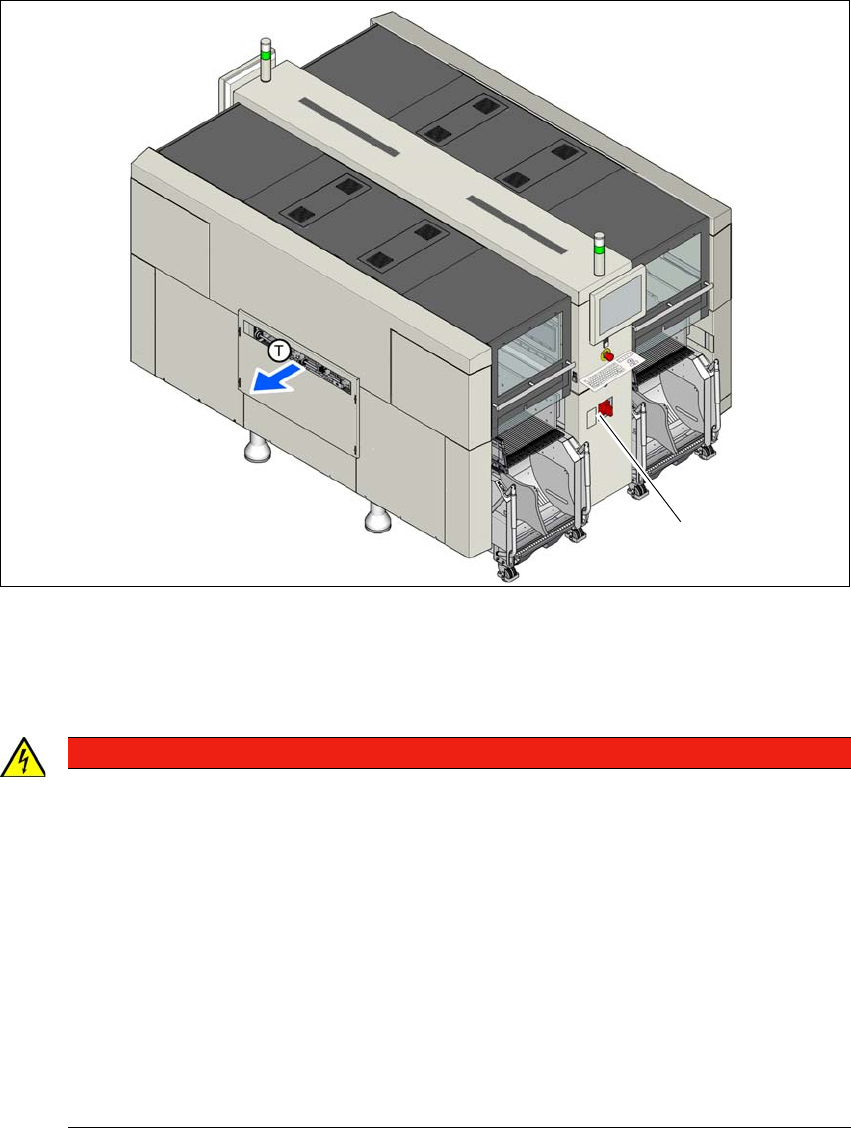

Fig. 2.9 - 1 Position of power supply on the machine (example of SIPLACE X2 S / X3 S / X4 S shown)
2
2
(1) Main switch
DANGER
Dangerous voltage levels!
The machine is supplied with 3 x 200 V~, 3 x 208 V~, 3 x 220 V~, 3 x 230 V~,
3 x 380 V~, 3 x 400 V~ or 3 x 415 V~ ± 5 %, 50/60 Hz mains voltage. This means that
some parts of the system carry potentially lethal voltages - even when switched off at the
main power switch.
Incorrect handling of this machine can therefore result in death or severe injury or con-
siderable damage to equipment.
Always follow the applicable accident prevention and DIN regulations (particularly
EN 60204, part 1 or IEC 60204, part 1) and the applicable regulations in your own
country.
The covers over the power supply unit may ONLY be opened by appropriately qual-
ified and trained personnel.
(1)
