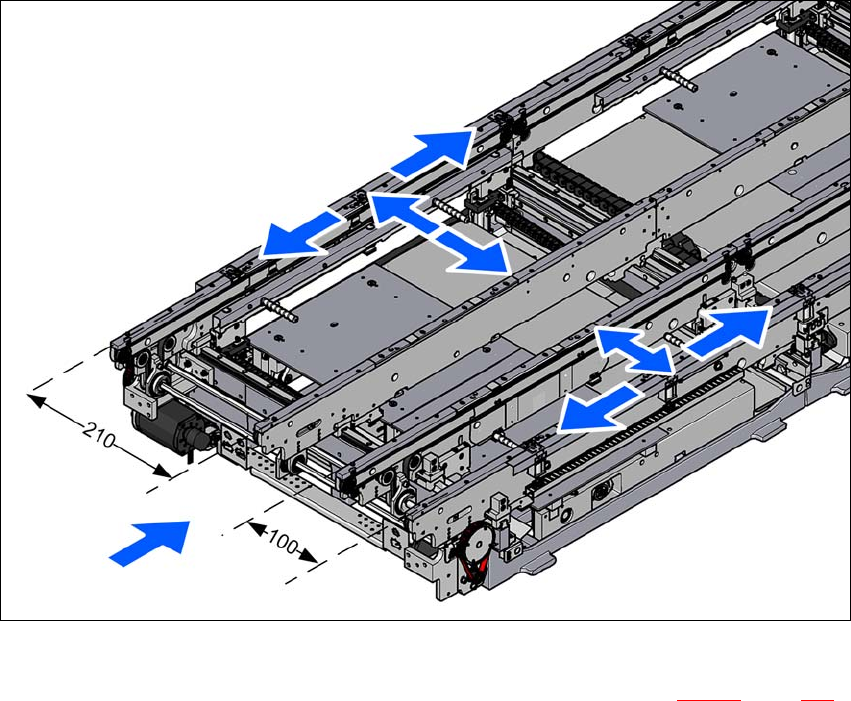

Fig. 4.3 - 10 Adjusting the machine in the X and Y directions

 Use the fork wrench to adjust the setting screw M24x2x120 (item 1 in fig. 4.3 - 11, page 257),

so that the fluid in the machine spirit level does not deviate from its zero point at the required

conveyor height.

User manual SIPLACE X-Series 4 Setting up and commissioning

From software version 706.1 SP1 Version 10/2014 4.3 Setting up the machine

257

Fig. 4.3 - 11 Presetting the height of the outer machine feet

(1) Setting screw M24x120 for height adjustment (M24x100 at 900 mm machine height)

(2) Outer machine foot

(3) Clamping piece

(4) Hexagon socket-head screw M24x90

 Check the required board conveyor height.

 Once the machine has been aligned, use the torque wrench to tighten the hexagon socket-

head screws M24x90 (item 4) to clamp the clamping pieces at all outer machine feet (item 3).

 Use the hook wrench to unscrew the middle machine feet roughly 135 - 145, until these are

positioned firmly on the ground.

 Make sure that the middle machine feet are not screwed out too far, unbalancing the machine.

PLEASE NOTE

Vibration at low tightening torques!

The tightening torque is 130 Nm. A lower torque could cause the machine to vibrate.

 Use a sufficiently high tightening torque.

(4)

(2)

(1)

(3)

4 Setting up and commissioning User manual SIPLACE X-Series

4.3 Setting up the machine From software version 706.1 SP1 Version 10/2014

258

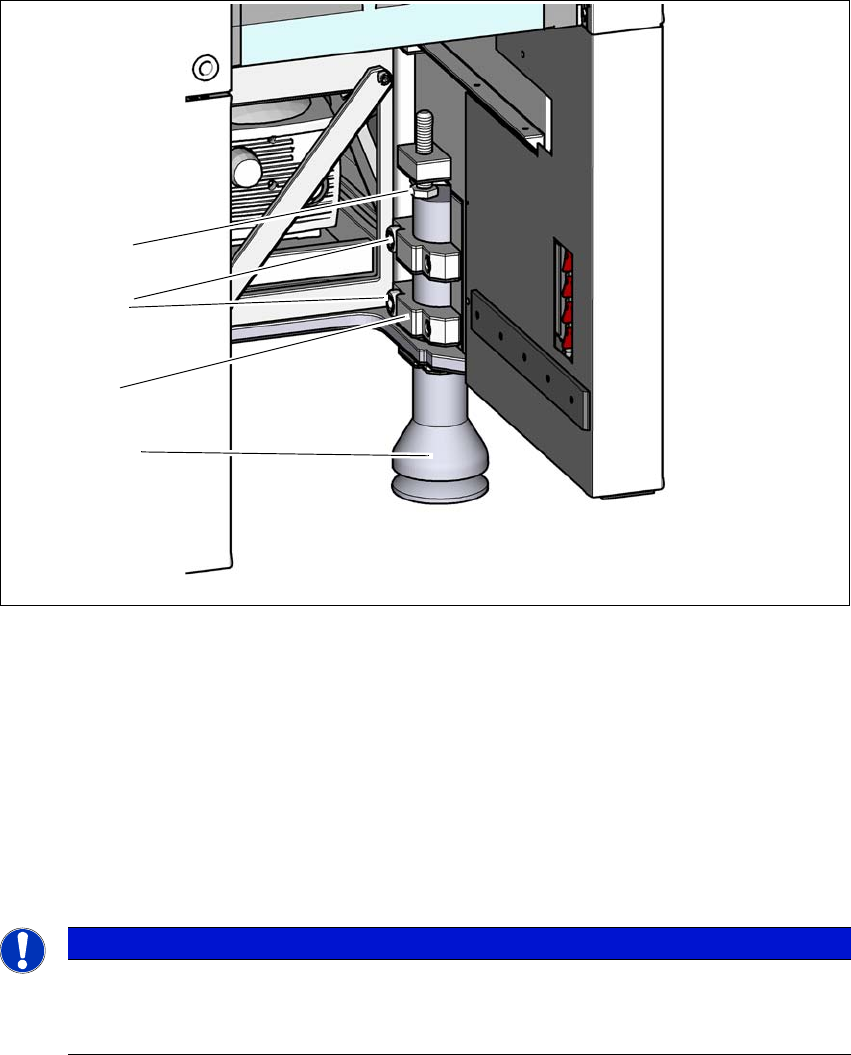

Fig. 4.3 - 12 Aligning and locking the middle machine feet

 Use the spirit level to ensure that the machine is precisely aligned.

 Use the fork wrench SW65 to tighten the lock nut M24 (item 3).

(1) Spacer

(2) Middle machine foot

(3) Lock nut M24
