5 Working with the machine User manual SIPLACE X-Series 5.15 Docking the component trolley in or out From software ve rsion 706.1 SP1 Version 10/2014 324 5.15.2 Docking out the component trolley  Press the button on the…

User manual SIPLACE X-Series 5 Working with the machine

From software version 706.1 SP1 Version 10/2014 5.15 Docking the component trolley in or out

323

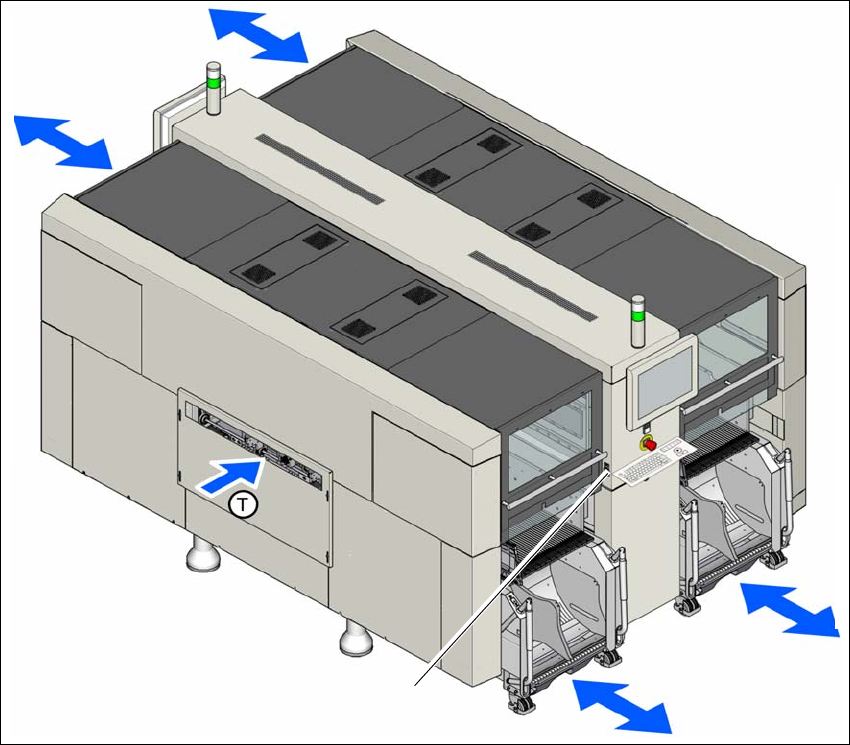

Fig. 5.15 - 1 Safety instructions for docking the component trolley in or out (example of SIPLACE X2 S / X3 S / X4 S

shown)

In addition, the component trolley can only be docked in if the protective

covers are closed.

(1) Button for docking and undocking the component trolley at location 1

(T) Direction of PCB transport

(1)

5 Working with the machine User manual SIPLACE X-Series

5.15 Docking the component trolley in or out From software version 706.1 SP1 Version 10/2014

324

5.15.2 Docking out the component trolley

 Press the button on the respective machine location until the component trolley is completely

undocked.

 Swivel the two handles up (item 1 in fig. 5.15 - 2).

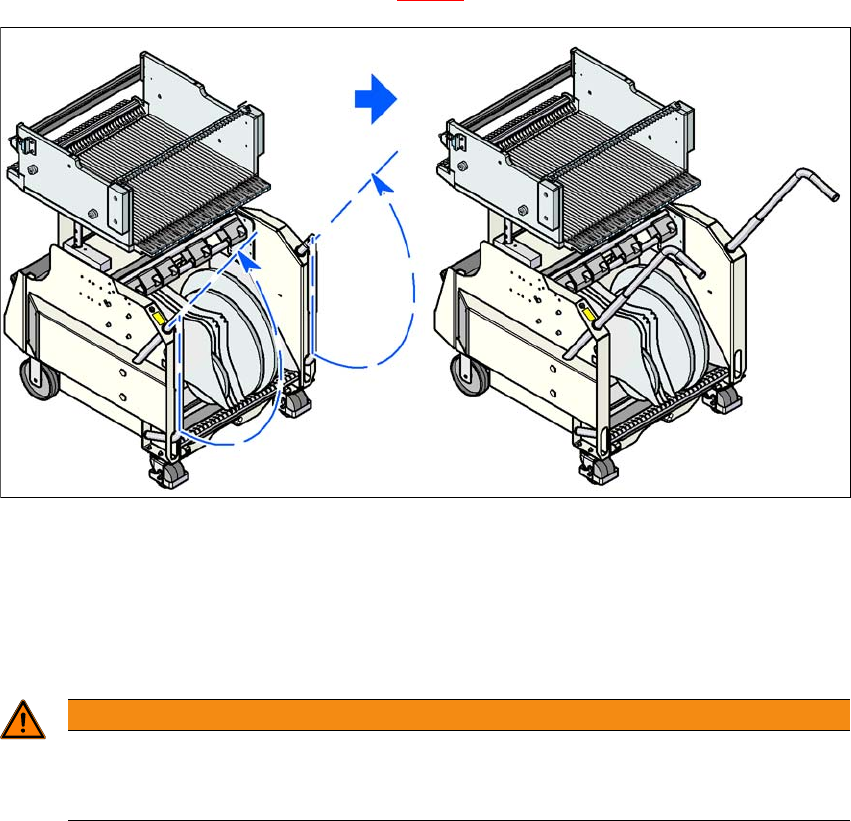

Fig. 5.15 - 2 Component trolley - swivel handles up to push

 With both hands on the handles, pull the component trolley out of the machine.

5.15.3 Safety instructions for moving the component trolley

 Always hold the handles with both hands when you want to move the component trolley.

 Remember that a component trolley with the full complement of feeder modules can tip over

sideways or forward on gradients of 20° or more.

 Make sure that the surface on which the trolley is moved has a significantly smaller gradient.

 Be careful not to collide with obstacles. The trolley could tip forward if it is traveling fast

enough.

WARNING

Avoid accidents!

To prevent accidents, ALWAYS follow the rules listed below when you move the compo-

nent trolley.

User manual SIPLACE X-Series 5 Working with the machine

From software version 706.1 SP1 Version 10/2014 5.15 Docking the component trolley in or out

325

5.15.4 Docking the component trolley

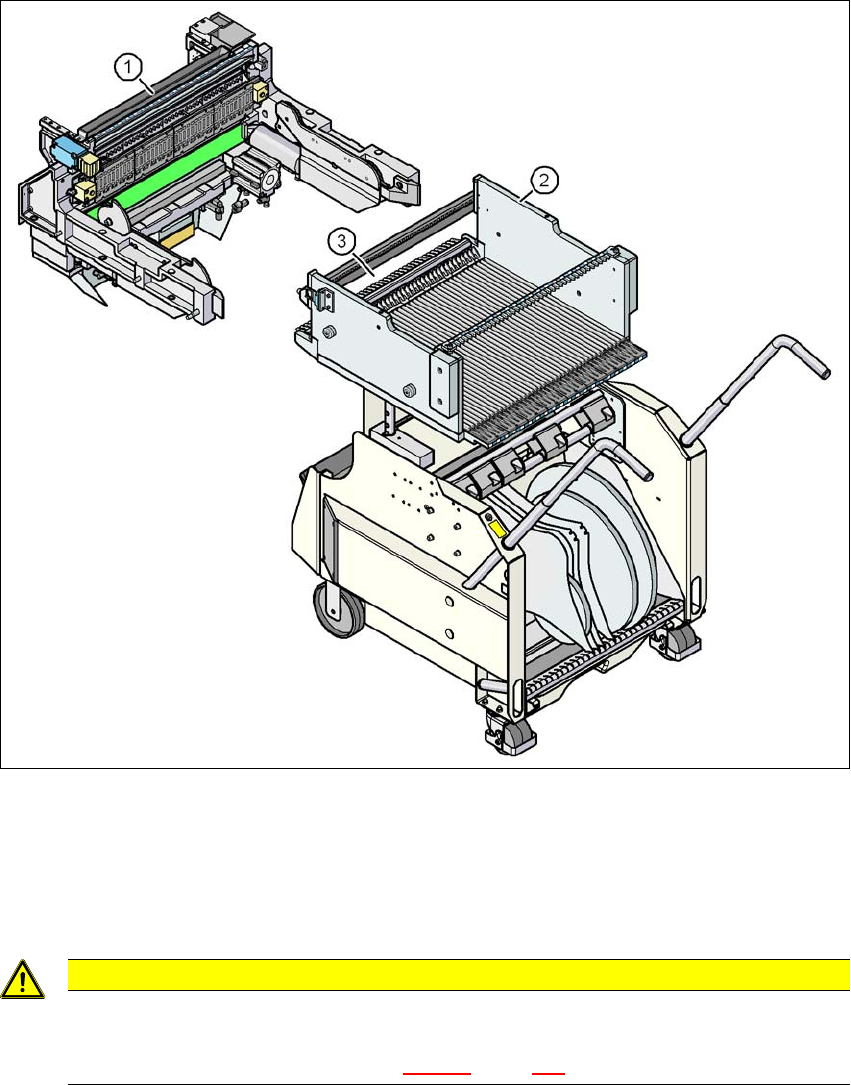

Fig. 5.15 - 3 Component trolley and COT insert, SIPLACE X-Series

(1) Component trolley docking unit, SIPLACE X-Series

(2) Component trolley, SIPLACE X-Series

(3) Locking latches

CAUTION

Pushing in component trolley!

 When pushing in the component trolley, make sure that you do not hit obstacles with

the locking latches (item 3 in fig. 5.15 - 3

, page 325).
