User manual SIPLACE X-Series 4 Setting up and commissioning From software version 706.1 SP1 Version 10/2014 4.2 Infrastructure at the installation location 237 4.2.3.6 Checking connections to the prima ry side of the thr…

4 Setting up and commissioning User manual SIPLACE X-Series
4.2 Infrastructure at the installation location From software version 706.1 SP1 Version 10/2014
236
4.2.3.5 Connecting the power supply cable
4

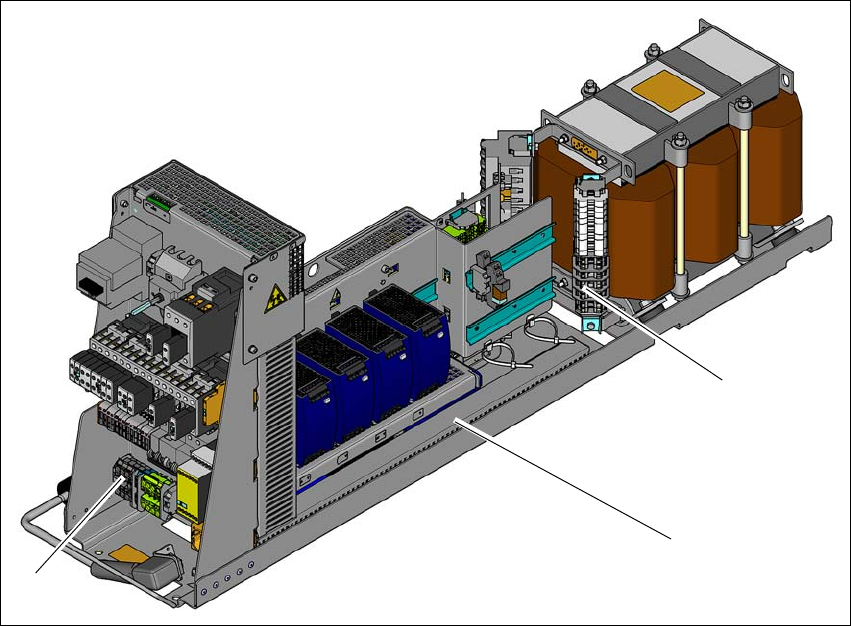

Fig. 4.2 - 5 Terminal panel for connecting the power cable
(1) Terminal panel (primary terminals for the three-phase transformer)
(2) Power supply unit
(3) Mains supply terminals
Crimp a ferrule onto each end of the wire.
Run the mains supply cable to the mains connection terminals (item 3).
Fix the cable to the mains connection terminals (item 3)
(L1): three-phase 4
(L2): three-phase 4
(L3): three-phase 4
(N): neutral conductor 4
(PE): PE conductor 4
Make sure that the bending radius is adequate. The wires must not be kinked.
Fix the mains supply cable with the help of cable ties.
(1)
(2)
(3)

User manual SIPLACE X-Series 4 Setting up and commissioning
From software version 706.1 SP1 Version 10/2014 4.2 Infrastructure at the installation location
237
4.2.3.6 Checking connections to the primary side of the three-phase transformer T1
The primary side of the three-phase transformer must be configured for the relevant supply volt-
age.
Check the terminal strip (1) to make sure that the primary end of the three-phase transformer
is correctly connected for the relevant supply voltage.
4

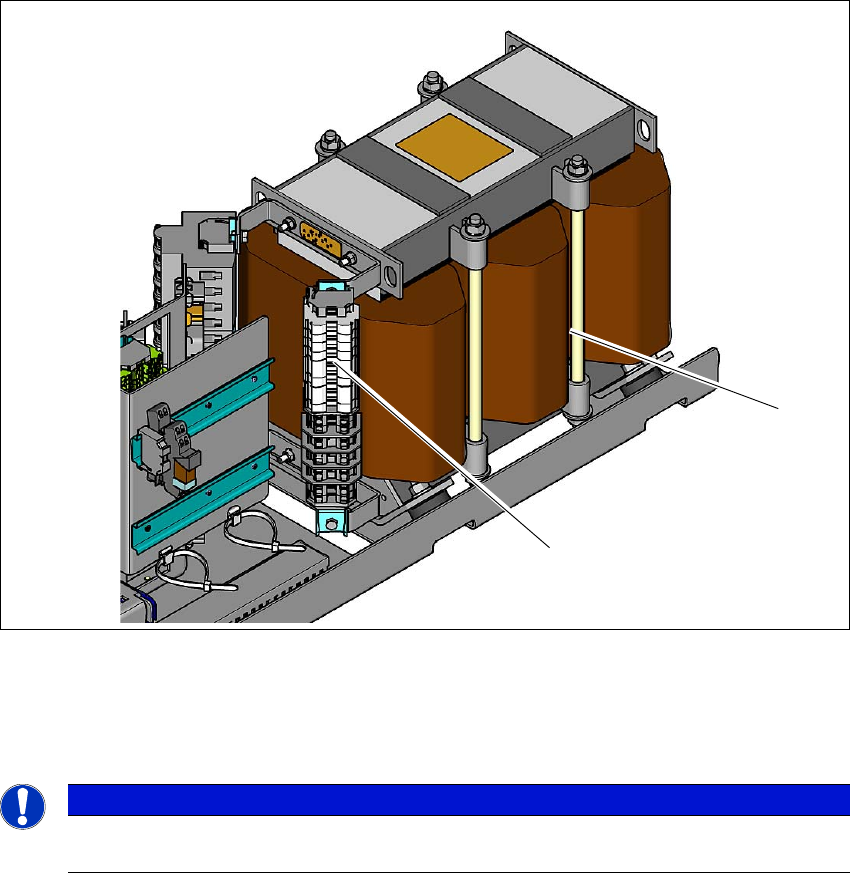

Fig. 4.2 - 6 Terminal panel for the primary side of the three-phase transformer T1
(1) Terminal panel with primary connections for the three-phase transformer T1
(2) Three-phase transformer
4
The following overview shows the connection options for the primary voltages of the three-phase
transformer.
PLEASE NOTE
The supply networks for North Japan (3 x 200 V~) and for the USA (
3 x 208 V~) are connected to the terminals for 3 x 204 V~.
(1)
(2)

4 Setting up and commissioning User manual SIPLACE X-Series
4.2 Infrastructure at the installation location From software version 706.1 SP1 Version 10/2014
238
4
Terminal
panel
Voltage
1U1 415 VAC
1V1 415 VAC
1W1 415 VAC
3U3 400 VAC
3V3 400 VAC
3W3 400 VAC
4U4 380 VAC
4V4 380 VAC
4W4 380 VAC
5U5 230 VAC
5V5 230 VAC
5W5 230 VAC
6U6 220 VAC
6V6 220 VAC
6W6 220 VAC
7U7 204 VAC
7V7 204 VAC
7W7 204 VAC
