6.8.4 Controls and displays
6

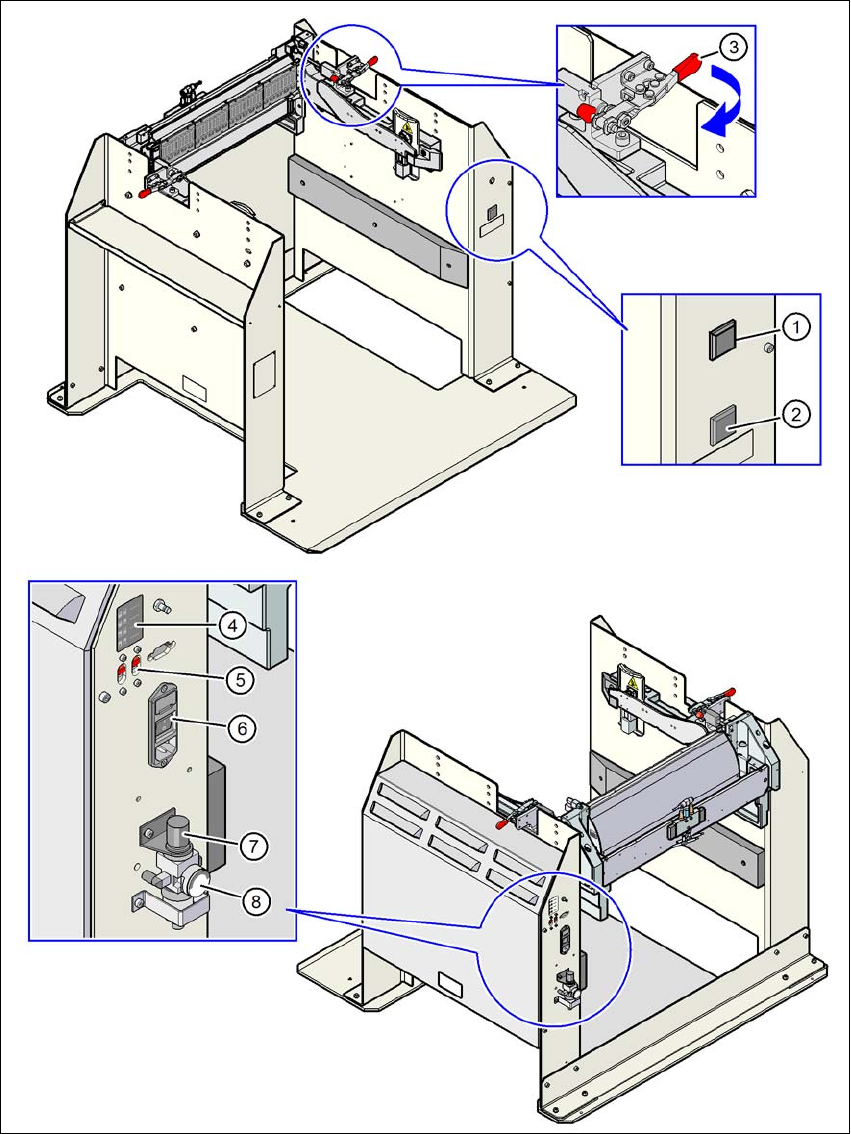

Fig. 6.8 - 4 Docking station - controls and displays
6 Station extensions User manual SIPLACE X-Series
6.8 Docking station for the component trolley of the SIPLACE X-Series From software version 706.1 SP1 Version 10/2014
390
Legend for fig. 6.8 - 4
, page 389.
(1) Button with control lamp for mains power supply
(2) Button for locking and unlocking all feeder modules on the component trolley
(3) Clamping lever for fastening the changeover table - lever in position "closed"
(4) Label with diagram of switch S1 and S2 for addressing the CAN bus
(5) Switch S1 and S2 for setting the CAN bus address
(6) Mains switch
(7) Rotary knob for setting the operating pressure
(8) Manometer for showing the operating pressure
User manual SIPLACE X-Series 6 Station extensions
From software version 706.1 SP1 Version 10/2014 6.8 Docking station for the component trolley of the SIPLACE X-Series
391
6.8.5 Adjusting the docking station to the PCB conveyor height
The COT insert of the docking station can be easily converted to PCB conveyor heights of 900,
930 and 950 mm.
6

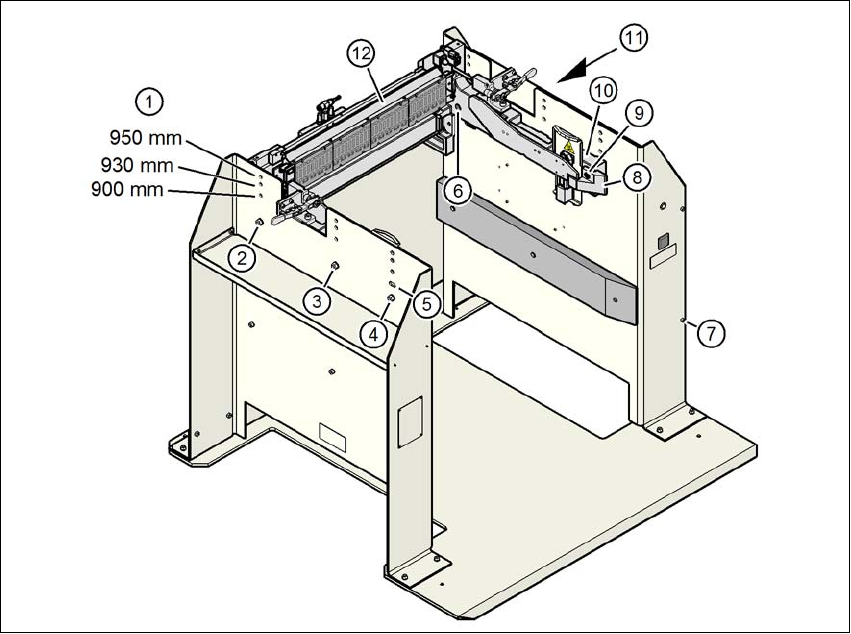

Fig. 6.8 - 5 Adjusting the COT insert to the PCB conveyor heights
(1) Holes for the PCB conveyor height
(2) Hexagonal nut M8 and washer, 2x each
(3) Hexagonal nut M8 and washer, 2x each
(4) Hexagonal nut M8 and washer, 2x each
(5) Slot for height adjustment
(6) Hexagon socket-head screw M8x40, 6x
(7) Hexagon socket-head screw M5x12, 4x
(8) Guidance
(9) Hexagon socket-head screw M8x18, 2x
(10) Side panel, COT insert
(11) Cover on docking station
(12) Feeder module control unit (FCU)
