User manual SIPLACE X-Series 6 Station extensions
From software version 706.1 SP1 Version 10/2014 6.4 Matrix Tray Changer
369
6.4.4.1 Dimensions
6
Fig. 6.4 - 1 Matrix tray changer, dimensions, all data in millimeters
6 Station extensions User manual SIPLACE X-Series
6.4 Matrix Tray Changer From software version 706.1 SP1 Version 10/2014
370
6.4.4.2 Controls
6

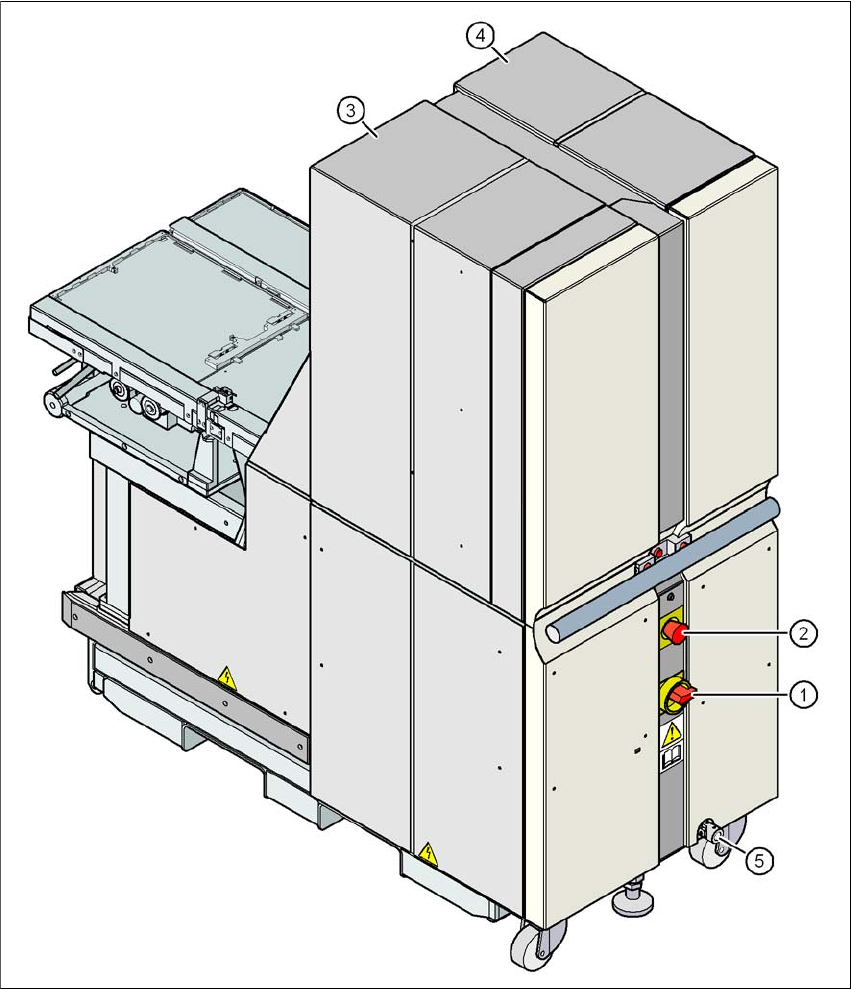

Fig. 6.4 - 2 Matrix tray changer, back view
(1) Main switch
(2) EMERGENCY STOP button
(3) Tower 1 for accommodating max. 30 waffle pack tray carriers (up to 60 JEDEC trays)
(4) Tower 2 for accommodating max. 40 waffle pack tray carriers (up to 40 JEDEC trays)
(5) Attachment point for crank used to adjust the matrix tray changer height
User manual SIPLACE X-Series 6 Station extensions
From software version 706.1 SP1 Version 10/2014 6.4 Matrix Tray Changer
371
6.4.5 Dimensions of the SIPLACE X2 S / X3 S / X4 S machine with MTC
6
Fig. 6.4 - 3 Dimensions of the SIPLACE X2 S / X3 S / X4 S machine with Matrix Tray Changer in millimeters
PLEASE NOTE 6
A Matrix Tray Changer can be docked at location 2, in place of the component trolley.
The maneuvering distance R of the MTC in SIPLACE X2 S / X3 S / X4 S machines is as follows:
6
Maneuvering distance R location position 2 750 mm
Distance L1: Machine center to outer edge of MTC 1938 mm
Distance L2: Machine center to wall 2688 mm
