6 Station extensions User manual SIPLACE X-Series 6.8 Docking station for the component trolley of the SIPLACE X-Series From software version 706.1 SP1 Version 10/2014 388 6 6 6.8.3 Dimensions of docking stat ion with do…
User manual SIPLACE X-Series 6 Station extensions
From software version 706.1 SP1 Version 10/2014 6.8 Docking station for the component trolley of the SIPLACE X-Series
387
6

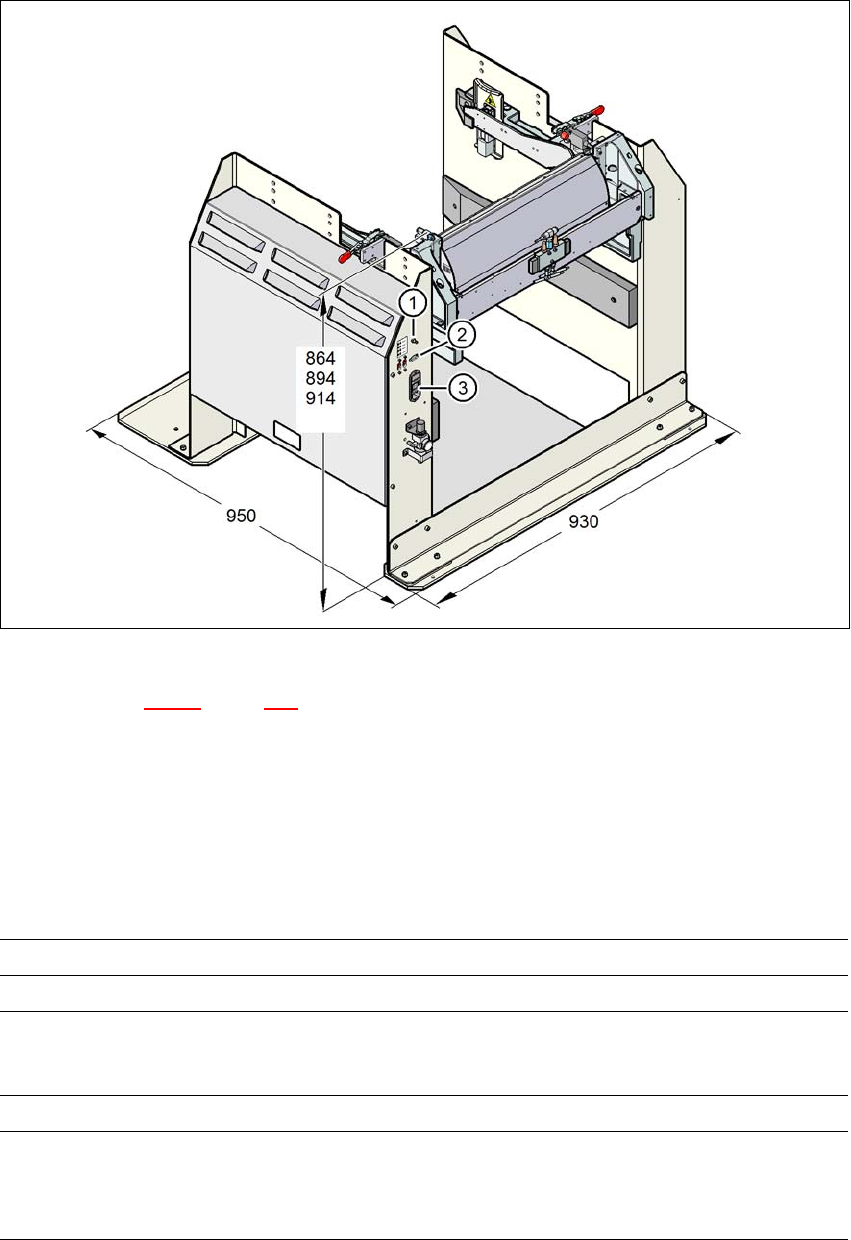

Fig. 6.8 - 2 Docking station - dimensions in millimeters, connection points
Legend for fig. 6.8 - 2, page 387
(1) Compressed air connection
(2) CAN bus connection
(3) Power supply connection
6.8.2 Technical data
6
Dimensions
Length x width 950 mm x 930 mm
Height 864 mm for 900 mm PCB conveyor height
894 mm for 930 mm PCB conveyor height
914 mm for 950 mm PCB conveyor height
Weight 120 kg
Compressed air pressure val-
ues
p
min
p
max
0.5 MPa (5.0 bar)
1.0 MPa (10.0 bar)
6 Station extensions User manual SIPLACE X-Series
6.8 Docking station for the component trolley of the SIPLACE X-Series From software version 706.1 SP1 Version 10/2014
388
6
6
6.8.3 Dimensions of docking station with docked component trolley
6

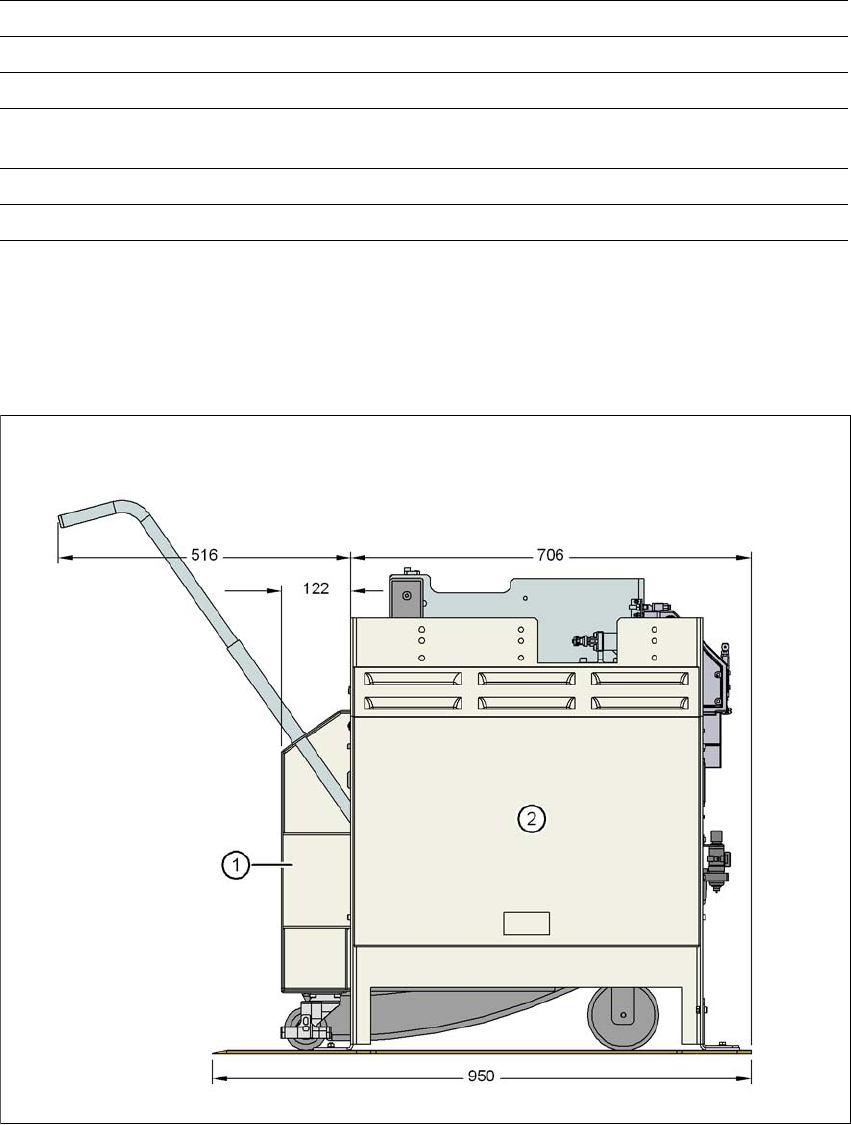

Fig. 6.8 - 3 Docking station with docked component trolley - dimensions in millimeters
(1) Component trolley
(2) Docking station
Compressed air connection Connection plug KS 2-M5-A
Compressed air consumption 50 Nl/min
*a
Supply voltage 88 - 264 V~
Rated current 3.5 A (230 V~)
7 A (115 V~)
Nominal apparent power 0.8 kW
Fuse 2 x 8 A
*)a Under normal atmospheric conditions at 20°C and 1013 hPa
User manual SIPLACE X-Series 6 Station extensions
From software version 706.1 SP1 Version 10/2014 6.8 Docking station for the component trolley of the SIPLACE X-Series
389
6.8.4 Controls and displays
6
Fig. 6.8 - 4 Docking station - controls and displays
