5 Working with the machine User manual SIPLACE X-Series 5.15 Docking the component trolley in or out From software ve rsion 706.1 SP1 Version 10/2014 328
User manual SIPLACE X-Series 5 Working with the machine
From software version 706.1 SP1 Version 10/2014 5.15 Docking the component trolley in or out
327
5

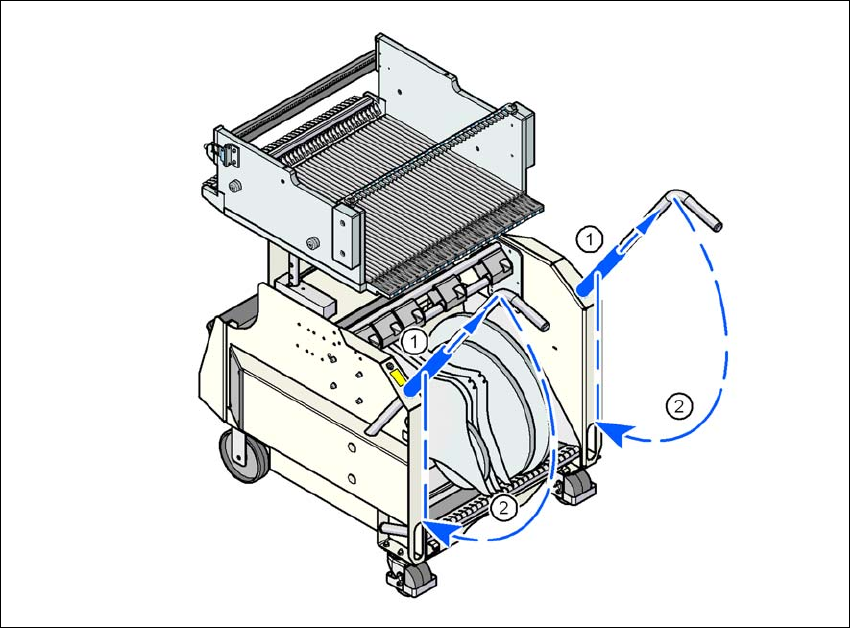

Fig. 5.15 - 4 X-Series component trolley - swivel handles down
(1) Push sleeve up
(2) Fold handle down
5 Working with the machine User manual SIPLACE X-Series
5.15 Docking the component trolley in or out From software version 706.1 SP1 Version 10/2014
328
User manual SIPLACE X-Series 6 Station extensions
From software version 706.1 SP1 Version 10/2014 6.1 Nozzle changer
329
6 Station extensions
For the relevant configurations and other options, refer to the individual specifications for the SI-
PLACE machines.
6.1 Nozzle changer
6.1.1 General
Nozzle changers can greatly increase the flexibility of the placement heads for processing differ-
ent types of component. If the placement program requires a nozzle change, then the placement
head automatically returns the old nozzle to the nozzle holder and picks up the new nozzle. Noz-
zles that were separated out during the vacuum check can also be quickly changed. It is signifi-
cantly more exact and faster to pick up nozzles from a nozzle changer than would be possible
manually. When placing small components, it is essential to minimize the radial eccentricity during
nozzle rotation.
