6 Station extensions User manual SIPLACE X-Series 6.16 Long board option (LBO) From software version 70 6.1 SP1 Version 10/2014 406 6.16 Long board option (LBO) Item no. 519874-xx X-Series, LBO license The "Long boa…
User manual SIPLACE X-Series 6 Station extensions
From software version 706.1 SP1 Version 10/2014 6.15 Smart Pin Support
405
6
Fig. 6.15 - 3 Smart Pin Support - magazine type Q10
6
Fig. 6.15 - 4 Smart Pin Support - magazine type W5
6 Station extensions User manual SIPLACE X-Series
6.16 Long board option (LBO) From software version 706.1 SP1 Version 10/2014
406
6.16 Long board option (LBO)
Item no. 519874-xx X-Series, LBO license
The "Long board" option allows you to place boards which exceed the specified board length.
6
PLEASE NOTE
The function of this option depends on the board geometry.
User manual SIPLACE X-Series 6 Station extensions
From software version 706.1 SP1 Version 10/2014 6.17 Vision Teach Station
407
6.17 Vision Teach Station
Item no. 00119788-xx Vision teach station
6

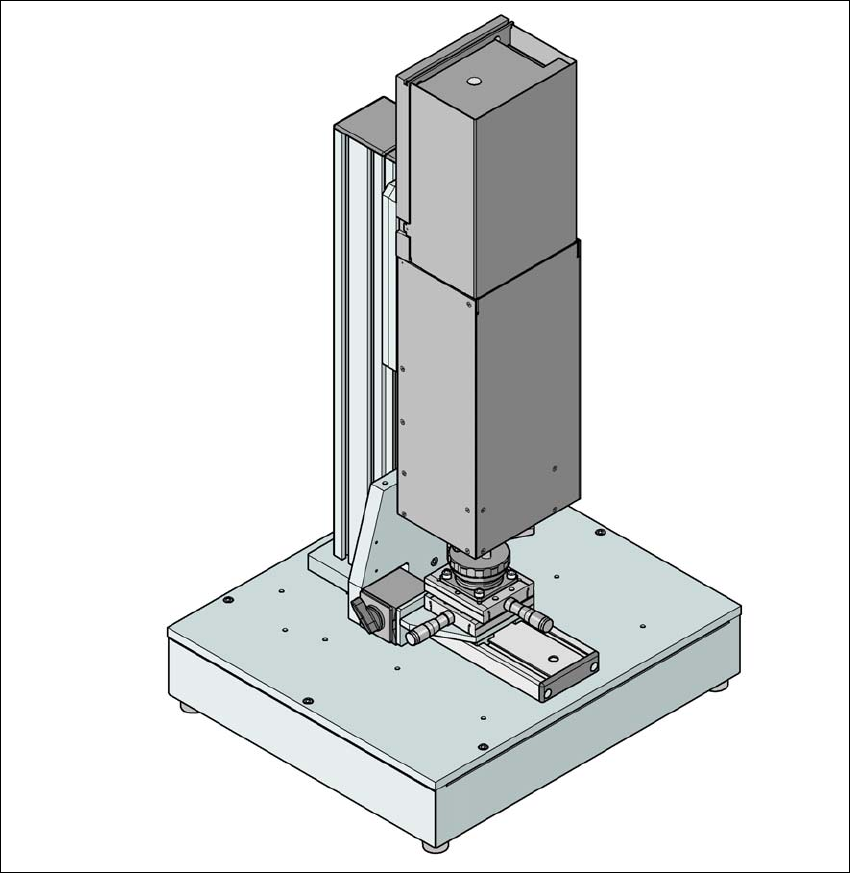

Fig. 6.17 - 1 Vision teach station with component camera, type 33
