3.9.7.1 Technical data
3
3.9.7.2 Number of waffle pack trays per location and machine
3.9.7.3 Inserting tray holder on the X-Series component trolley
Place the two front slider guides (item 1 in fig. 3.9 - 22, page 209) for the holder onto the in-
sertion aid (item 6 in fig. 3.9 - 22, page 209 ).
Push the holder along the guide profiles (item 7 in fig. 3.9 - 22, page 209), towards the front.
The holder slides with the front (item 1) and back slide guides (item 2 in fig. 3.9 - 22, page
209) on the guide profiles.
Continue pushing the holder, until the two centering pins "front" (item 4 in fig. 3.9 - 22, page
209) disappear into the centering holes (item 10 in fig. 3.9 - 22, page 209).
Check the two "back" centering pins (item 3 in fig. 3.9 - 22, page 209) for the holder. They
should slide easily into the recesses (item 8 in fig. 3.9 - 22, page 209) of the centering rail.
At the end stop of the holder, the locking latches (item 9 in fig. 3.9 - 22, page 209) engage
with the locking rollers (item 5) of the holder.
The waffle pack tray holder can be locked and released via the user interface. You can therefore
easily change the holder without interruption to machine operation.
Dimensions L x W x H 429 mm x 376 mm x 200 mm
Location occupied on the changeover table 32 locations
*a
*)a X feeder modules can be placed on the remaining 8 locations. When using locking bars/mounting rails, the
locations available are reduced to 6, due to the fixation lever which protrudes at the side.
Positioning options on X-Series placement ma-
chines
Locations 2 and 4
Placement head range TwinStar, CPP
*b
*)b Only permitted in high assembly position (CPP_H).
PLEASE NOTE
Further information
The maximum component height for the waffle pack tray holder depends on the maxi-
mum component height for the placement head used. When using waffle pack trays,
bear in mind that the components may not higher than the pickup height of a standard
feeder.
Placement machine Location 2 Location 4
X4 S 1 1
X3 S 2 1
X2 S 2 2
User manual SIPLACE X-Series 3 Technical data and assemblies
From software version 706.1 SP1 Version 10/2014 3.9 X feeder modules for SIPLACE X-Series
209
3
3

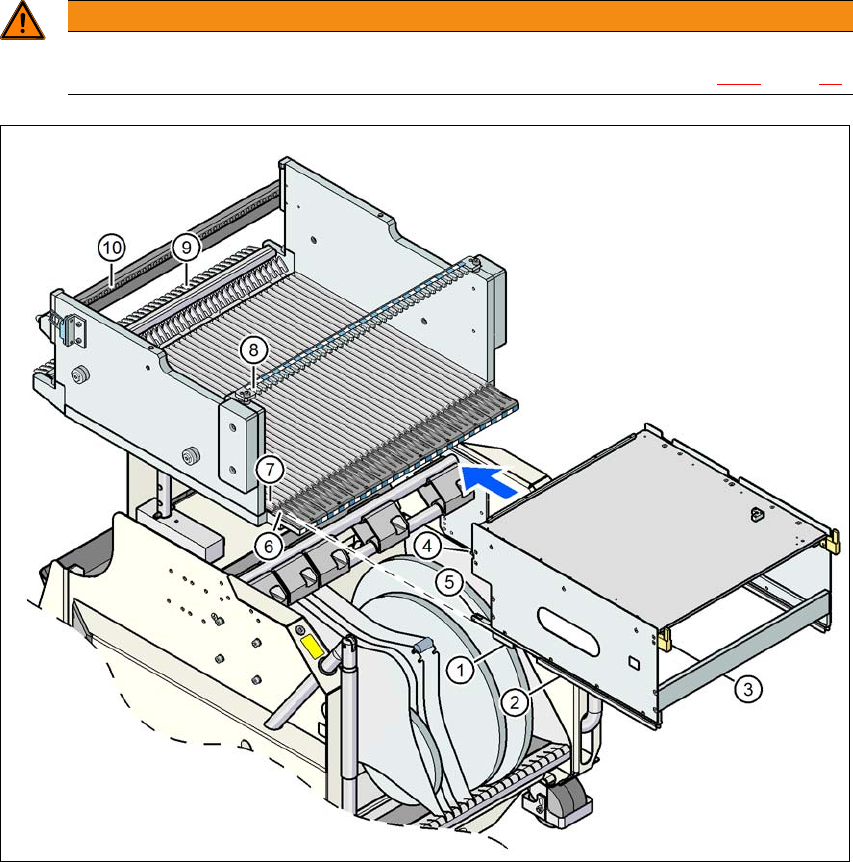

Fig. 3.9 - 22 Using waffle pack tray holder on component trolley for X-Series
WARNING
Occupation of locations!
Always follow the safety instructions about occupying locations, in section 2.6.6
, page 94.
(1) Front slider guide (6) Insertion aid
(2) Back slider guide (7) Sliding rail (omega profile)
(3) "Back" centering pin (8) Recesses in the centering bar for holding the
"back" centering pin
(4) "Front" centering pin (9) Locking latches
(5) Locking roller (10) Centering holes on the changeover table for
holding the "front" centering pin
3 Technical data and assemblies User manual SIPLACE X-Series
3.10 Component trolley From software version 706.1 SP1 Version 10/2014
210
3.10 Component trolley
Item no. 00119722-xx SIPLACE X-Series component trolley
Four SIPLACE X-Series component trolleys can be docked onto SIPLACE X-Series machines.
3

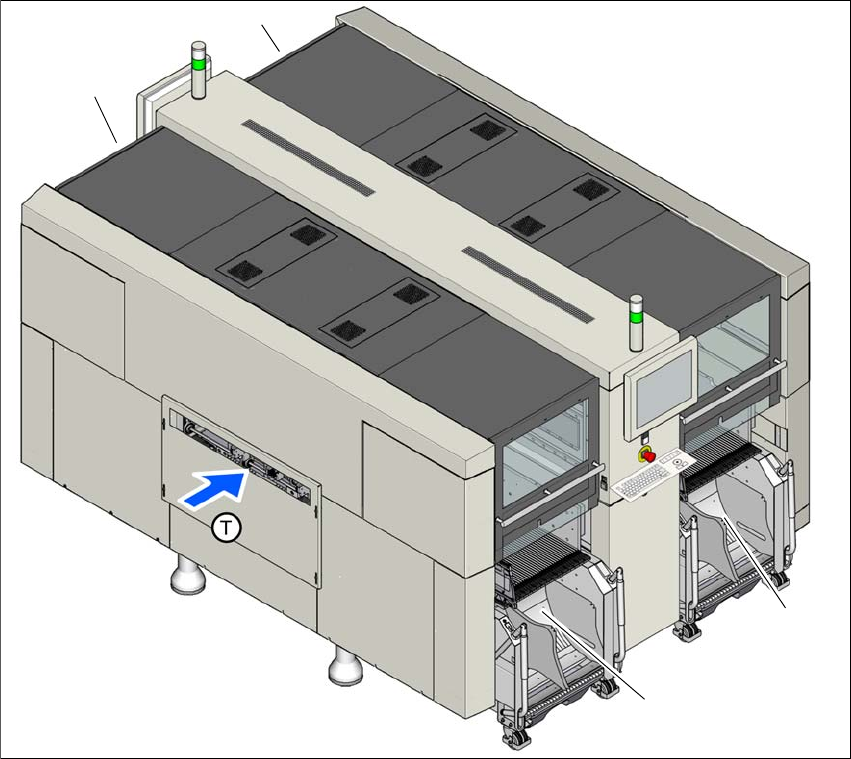

Fig. 3.10 - 1 Component trolley locations (example of SIPLACE X4i S shown)
(1) Location 1
(2) Location 2
(3) Location 3
(4) Location 4
(T) Direction of PCB transport
The component trolleys are stand-alone modules that can be set up with feeders at an external
setup area. This means that the production process only has to be interrupted briefly in order to
change the component trolley.
(1)
(4)
(2)
(3)
