2.2.9 "Head crash" label on the IC camera of the TwinStar
"Head crash" label in fig. 2.2 - 11, item no. 03015392-02
(quantity per machine: maximum 2)
2

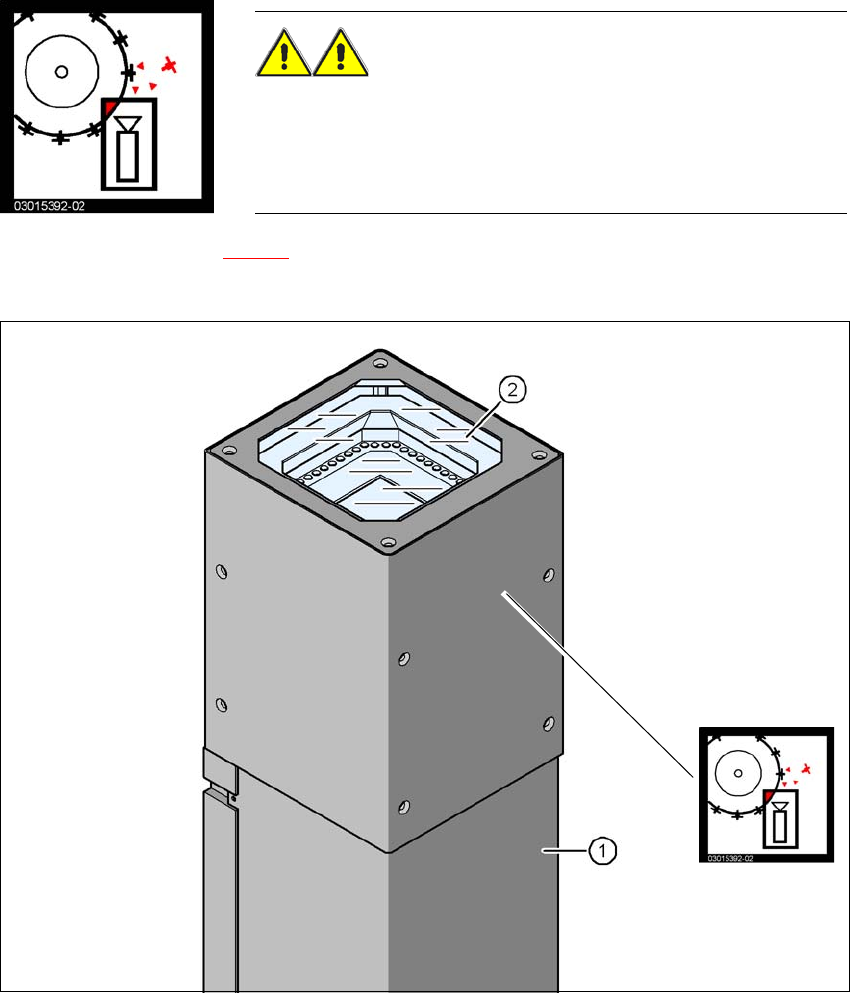

Fig. 2.2 - 11 "Head crash" label on the IC camera of the TwinStar
(1) Camera housing
(2) Glass plate
(3) "Head crash" label on the IC camera of the TwinStar
WARNING RISK OF HEAD CRASH 2
When changing the placement head from a TwinStar/VHF to a
SpeedStar, the SpeedStar collides with the camera housing.
Dismantle the stationary component cameras of type 33, 55 x 45,
and type 25, 16 x 16 for the TwinStar.
(3)
2 Operational safety User manual SIPLACE X-Series
2.2 Warning labels From software version 706.1 SP1 Version 10/2014
68
2.2.10 Warning label on PCB conveyor
2

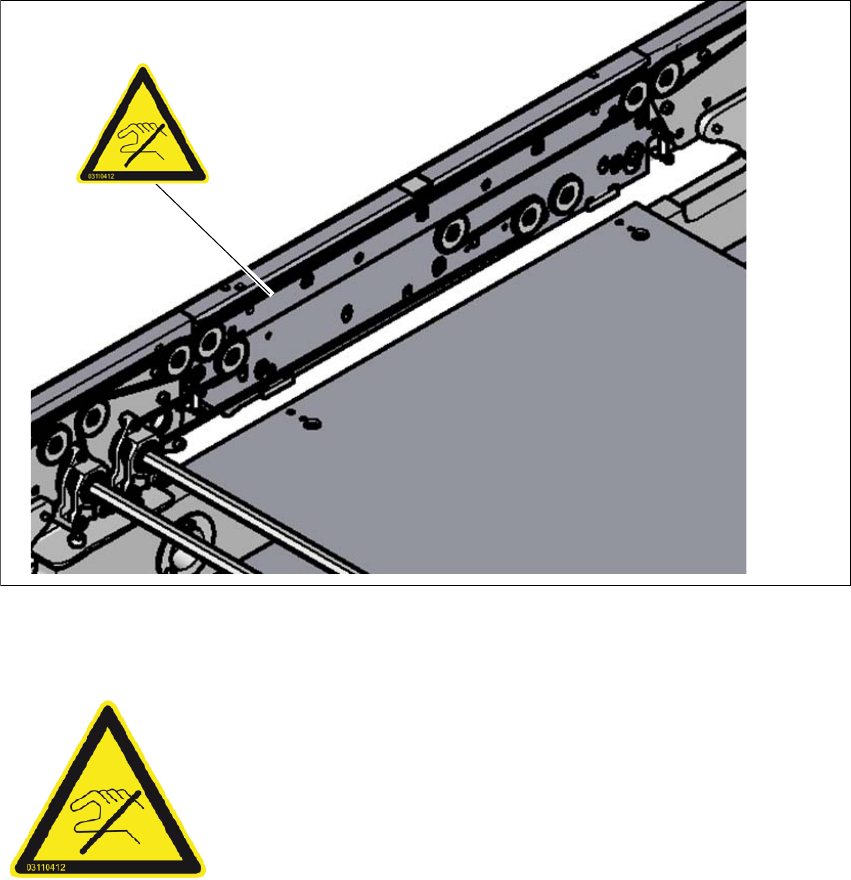

Fig. 2.2 - 12 Warning label "Sensitive conveyor sides" on clamping plate of PCB conveyor
2.2.10.1 Warning label "Sensitive conveyor sides"
2
Item no. 03110412-01 (1x on each conveyor side and placement area)
Sensitive conveyor sides!
The conveyor sides are highly sensitive and may not be moved
unless the brakes have been released.
Moving the sides without releasing the brakes can cause irrepa-
rable damage to the conveyor sides.
User manual SIPLACE X-Series 2 Operational safety
From software version 706.1 SP1 Version 10/2014 2.3 Laser classification
69
2.3 Laser classification
2.3.1 Laser class 1
2.3.1.1 Classification of the whole machine
2
2
2.3.1.2 Classification of the camera systems
2
2.3.2 Laser class 1M
Do not look directly at this with optical instruments!
2
PLEASE NOTE
Modules in laser classes 1 and 1M are not identified.
2
All installed camera systems and the whole machine when ready for operation
are assigned to laser class 1.
The laser classes are determined according to DIN EN 60825-1.
2
The following camera systems are assigned to laser class 1:
– Stationary cameras
Stationary component camera P&P, type 33, 55 x 45, digital
Stationary component camera P&P, type 25, 16 x 16, digital
2
The following camera systems are assigned to laser class 1M:
– Component camera C&P, type 23, 6 x 6 on SpeedStar
– Component camera C&P, type 41, 6 x 6 on SpeedStar
– Component camera C&P, type 30, 27 x 27 on MultiStar
