2 Operational safety User manual SIPLACE X-Series 2.2 Warning labels From software version 706.1 SP1 Version 10/2014 56 2.2.2.2 W arning strips 2 2 2 RISK OF CRUSHING HANDS IF THE PROTECTIVE COVERS ARE NOT CLOSED CORRECT…
User manual SIPLACE X-Series 2 Operational safety
From software version 706.1 SP1 Version 10/2014 2.2 Warning labels
55
2.2.1.3 Warning label W204
2
W204 in fig. 2.2 - 1, page 52 and 2.2 - 2, page 53, and 2.2 - 3, page 57,
Item no. 03009343-01 (quantity per machine: 8)
2.2.2 Warning label 205
Warning labels on tape cutter and used tape chute
2
W205 in fig. 2.2 - 5, page 61 and 2.2 - 6, page 62, item no. 03009344-01 (quantity per machine: 8)
2.2.2.1 Warning label W210
2
W210 in fig. 2.2 - 1, page 52 and 2.2 - 2, page 53, item no. 03009350-01 (quantity per machine: 2)
2
2
2
DANGER OF CRUSHING!
Reaching in here can lead to injuries to the arms
and hands.
Do not reach into the machine while it is running
2
2
2
2
2
2
2
2
RISK OF CUTTING!
Danger of cutting is present even when the machine is
switched off
2
2
2
2
2
2
Warning label on the EMERGENCY STOP button
User manual SIPLACE X-Series 2 Operational safety
From software version 706.1 SP1 Version 10/2014 2.2 Warning labels
57
2.2.3 Warning labels in the machine

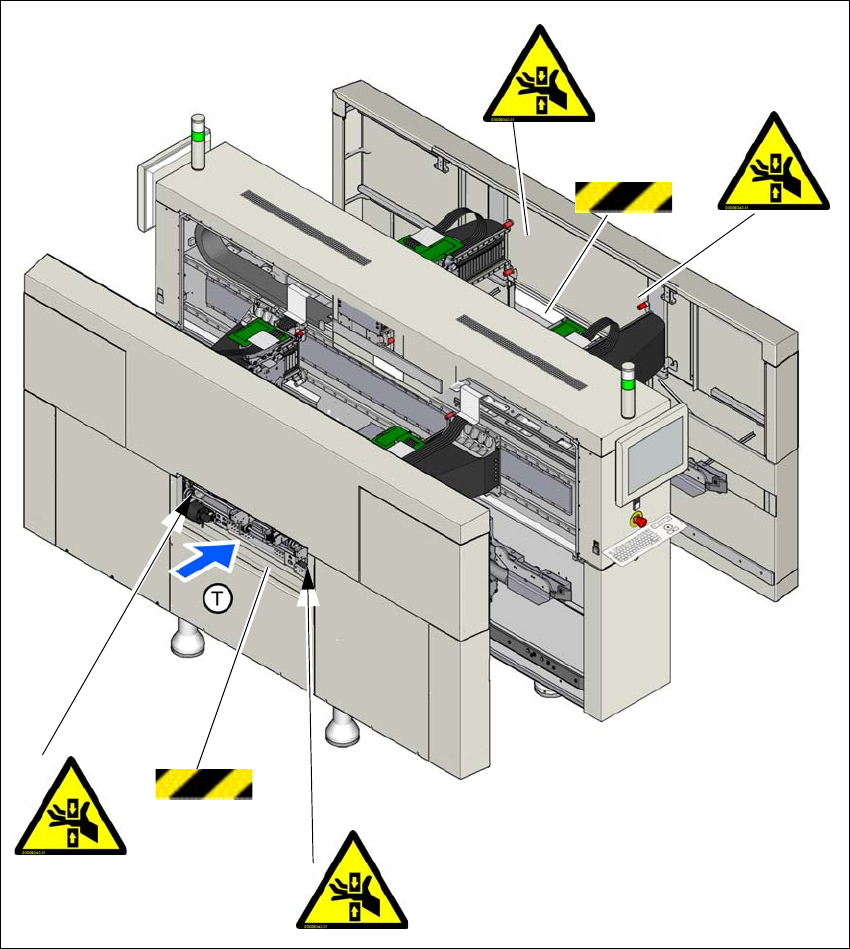

Fig. 2.2 - 3 Warning label W203 on the machine (example of SIPLACE X4i S shown)
W203, item no. 03009342-01
(1) Warning strips
(T) Direction of travel
The warning labels are attached to the inside of the metal cover panels.
W 203
W 203
W 203
W 203
1
1
