4 Setting up and commissioning User manual SIPLACE X-Series
4.3 Setting up the machine From software version 706.1 SP1 Version 10/2014
252
Now use the fork-lift to carefully lower the machine until the machine feet touch the floor
evenly. There should always be a second person present to ensure that the machine remains
stable while it is being lowered. You may need to loosen the outer machine feet clamp slightly.
Continue to carefully lower the machine, until the outer machine feet touch the height adjust-
ment setting screws M24x2x120 (item 3 in fig. 4.3 - 7
, page 250).
Make sure that the middle machine feet (see item 2 in fig. 4.3 - 4, page 247) do not yet touch
the ground. If necessary, screw the middle machine feet back into the machine or spacer a
little.
4
PLEASE NOTE
For a description of how to perform final adjustment on the machine, refer to the section
4.3.8.1
, page 255.
User manual SIPLACE X-Series 4 Setting up and commissioning
From software version 706.1 SP1 Version 10/2014 4.3 Setting up the machine
253
4.3.7 Machine foot clearances and the stationary PCB conveyor edges
Machine foot clearances for the PCB single conveyor
4

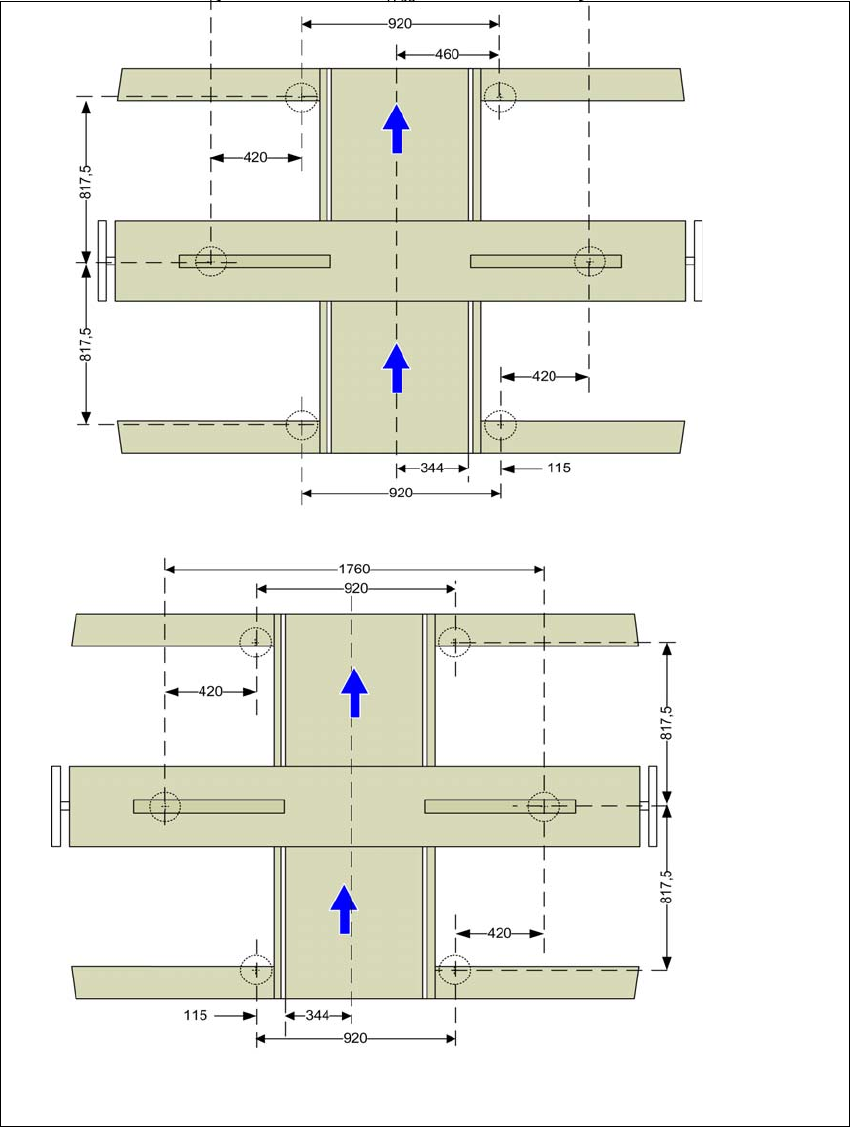

Fig. 4.3 - 8 Machine foot clearances for the PCB single conveyor in millimeters
Fixed conveyor side at maximum
right position
a
.
a) The value depends on the position of the fixed side. All dimensions in millimeters.
Fixed conveyor side at maximum
left position
a
.
4 Setting up and commissioning User manual SIPLACE X-Series
4.3 Setting up the machine From software version 706.1 SP1 Version 10/2014
254
4.3.7.1 Machine foot clearances for the PCB dual conveyor
4
Fig. 4.3 - 9 Machine foot clearances for the PCB dual conveyor in millimeters
Fixed conveyor side at maxi-
mum right position
a
.
a) The value depends on the position of the fixed side. All dimensions in millimeters.
Fixed conveyor side at maxi-
mum left position
a
.
