2 Operational safety User manual SIPLACE X-Series
2.2 Warning labels From software version 706.1 SP1 Version 10/2014
62
2.2.5.1 Warning label W205 on the used tape chute
2

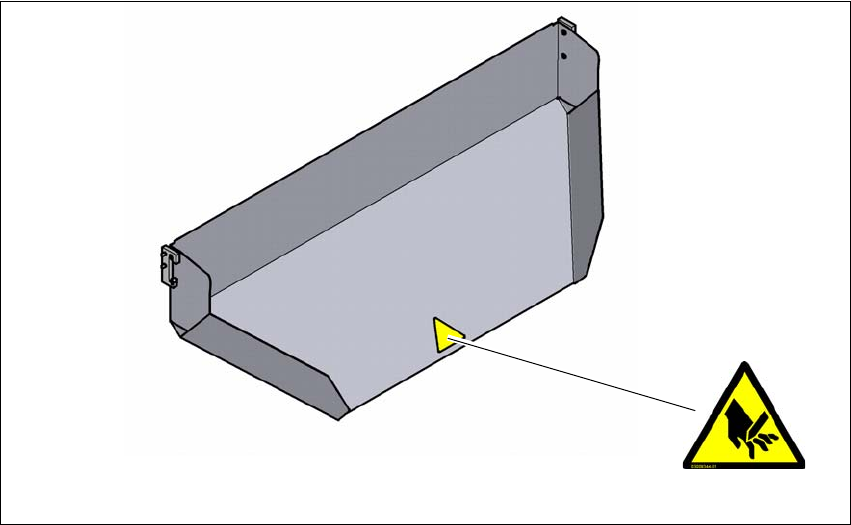

Fig. 2.2 - 6 Warning label W205 on the used tape chute
W205, item no. 03009344-01
W205
User manual SIPLACE X-Series 2 Operational safety
From software version 706.1 SP1 Version 10/2014 2.2 Warning labels
63
2.2.6 Warning labels on the power supply unit and transformer
2
W206 in fig. 2.2 - 7, page 63 item no. 03009345-01 (quantity per machine: 2).
W206 in fig. 2.2 - 8
, page 64 item no. 03009345-01 (quantity per machine: 2).

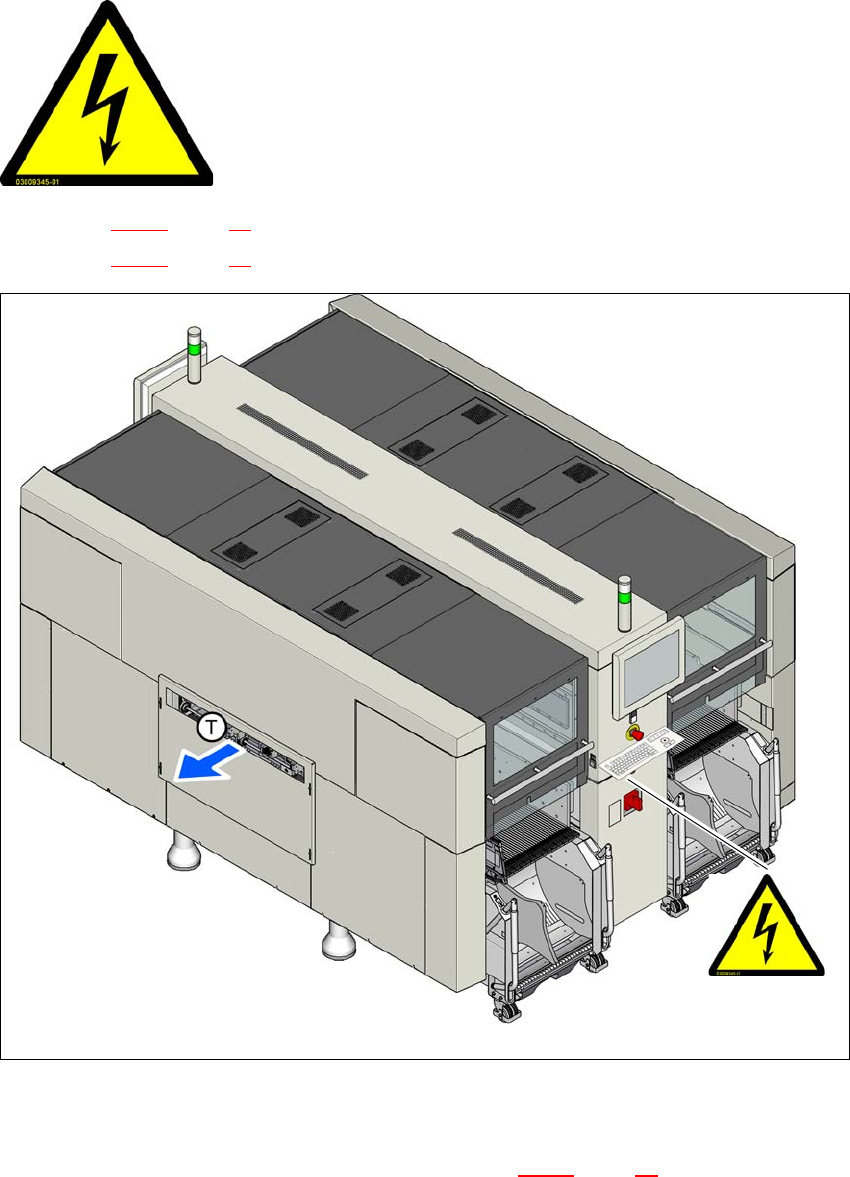

Fig. 2.2 - 7 Warning label W206, (example SIPLACE X2 S / X3 S / X4 S)
W206, central cover on the power supply
W206, on the inside of the power supply unit (see also fig. 2.2 - 8
, page 64 )
DANGEROUS VOLTAGES!
The labeled parts are still live when the main power switch is off.
Disconnect the machine from the mains before servicing it.
NAFTA region: RISK OF ELECTRIC SHOCK OR BURN!
W206
2 Operational safety User manual SIPLACE X-Series
2.2 Warning labels From software version 706.1 SP1 Version 10/2014
64
2.2.6.1 Warning label W211
2
Item no. 03009351-01 (quantity per machine: 2)
W211 in fig. 2.2 - 8
, page 64 item no. 03009351-01.
Fig. 2.2 - 8 Warning label W 206, W211 on the power supply unit
W211, on the cover over the inrush current limitation
W206, on the X102 service socket
2
2
MAIN POWER VOLTAGE!
Switch off the main power switch and wait 30 seconds until the
capacitors have discharged.
NAFTA region: RISK OF ELECTRIC SHOCK OR BURN!
W211
W206
