INFINITY EX TRANSPORT ATION MAJOR RE LOCATION 31.1 8 Technical Reference Manual Chapter Issue 3 Jan 04 11. Ensuring the auxiliary con ve yor is fully supported, remov e the bolts l oos- ened in Step 10 and remov e the co…

INFINITY

TRANSPORTATION

MAJOR RELOCATION

Chapter Issue 3 Jan 04 Technical Reference Manual 31.17

1. Remove the six pan head M4 securing screws and washers from the front left

hand safety cover and remove the cover from the machine.

2. Remove the six pan head M4 securing screws and washers from the rear left

hand safety cover and remove the safety cover from the machine.

3. Remove the two countersunk M5 screws securing the left hand safety plate

to the green wear insert fitted to the top of the left hand conveyor.

4. Carefully lift the safety plate clear of the machine and remove the two plastic

safety cover spacers from the on top of the green wear insert.

5. Remove the left hand machine side covers.

6. Disconnect the electrical supply connector to the pneumatic solenoid valve

M27SOL02 rear face of the front upright of the conveyor frame.

7. Disconnect the pneumatic connection feeding the solenoid valve

M27SOL02.

8. Disconnect the following connectors fitted to the front rail of the left hand

auxiliary conveyor:

• M27SK05 - Auxiliary conveyor sensor

• M27PL06 - Auxiliary conveyor front transport belt motor

9. Disconnect connector M27PL07 feeding the auxiliary conveyor rear trans-

port motor, fitted to the rear face of the rear rail of the conveyor.

10.Loosen the eight M5 auxiliary conveyor frame securing bolts (four bolts on

each upright) that secure the auxiliary conveyor to the machine lower frame.

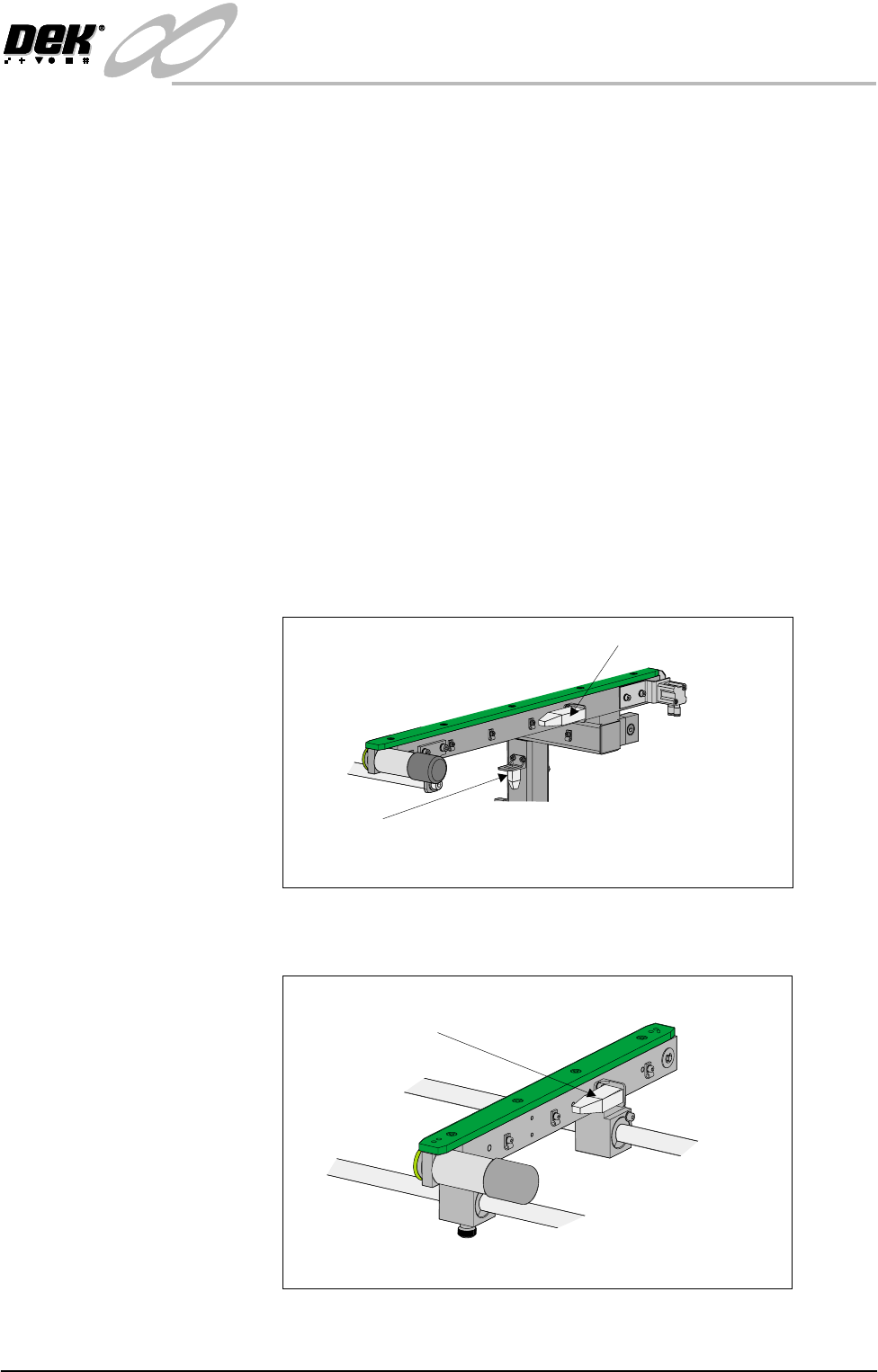

Connector M27SK05

Connector M27PL06

Front View on Left Hand Auxiliary Conveyor

Connector M27PL07

Rear View on Left Hand Auxiliary Conveyor

INFINITY

TRANSPORTATION

MAJOR RELOCATION

31.18 Technical Reference Manual Chapter Issue 3 Jan 04

11.Ensuring the auxiliary conveyor is fully supported, remove the bolts loos-

ened in Step 10 and remove the conveyor from the machine.

12.Refit the left hand machine side panels.

13.Switch on the m3 Jan 04achine, remove the head prop and lower the head.

Removal of the 12″

MMI Assembly

The following procedure details how to remove the MMI assembly from the

machine.

NOTE

Ensure that the machine is switched OFF at the mains isolator.

1. Unfasten the machine front right corner access panel, by releasing the three

quick release fasteners. Unplug the E Stop connector from the back of the

corner panel and disconnect the System button at plug 8PL14. Release the

ESD cable by pulling the cable spade connector from the capacitor fixing

point.

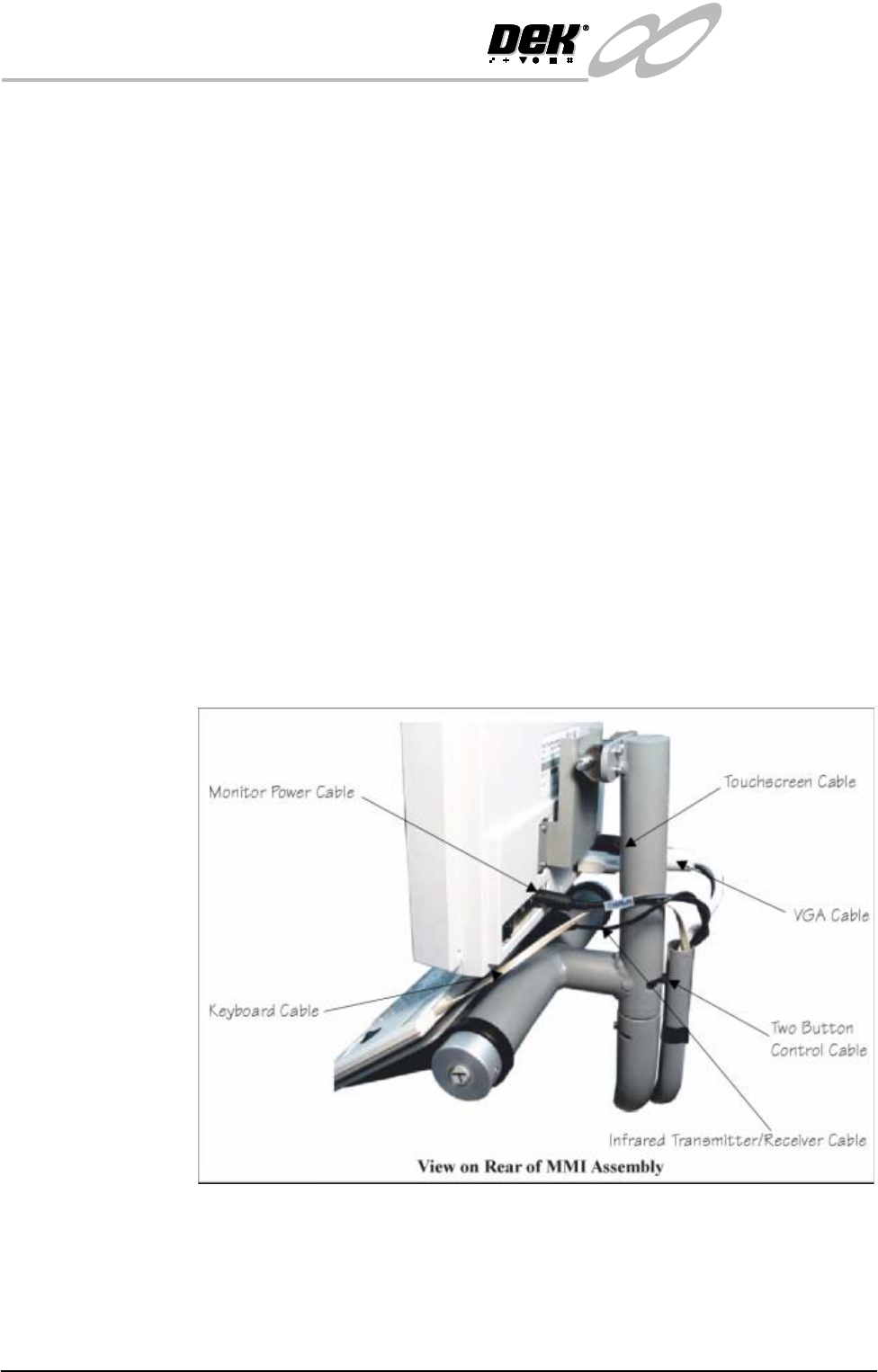

2. At the rear of the monitor, remove the following connections on the rear of

the monitor:

• Monitor Power Cable (M16SK03) - Power DC-IN

• VGA Cable (M16PL023) - Display Input

• Touchscreen Cable (M16PL01) - Touch RS-232

3. Remove the infrared receiver/transmitter from beneath the monitor.

4. Unclip the cable conduit from behind the MMI arm.

5. Carefully remove the following cables from the cable conduit utilizing the

slot in the conduit:

• Infrared Transmitter/Receiver

• Monitor Power Supply Cable

INFINITY

TRANSPORTATION

MAJOR RELOCATION

Chapter Issue 3 Jan 04 Technical Reference Manual 31.19

• VGA Cable

• Touchscreen Cable

• Keyboard Cable

• Two Button Control

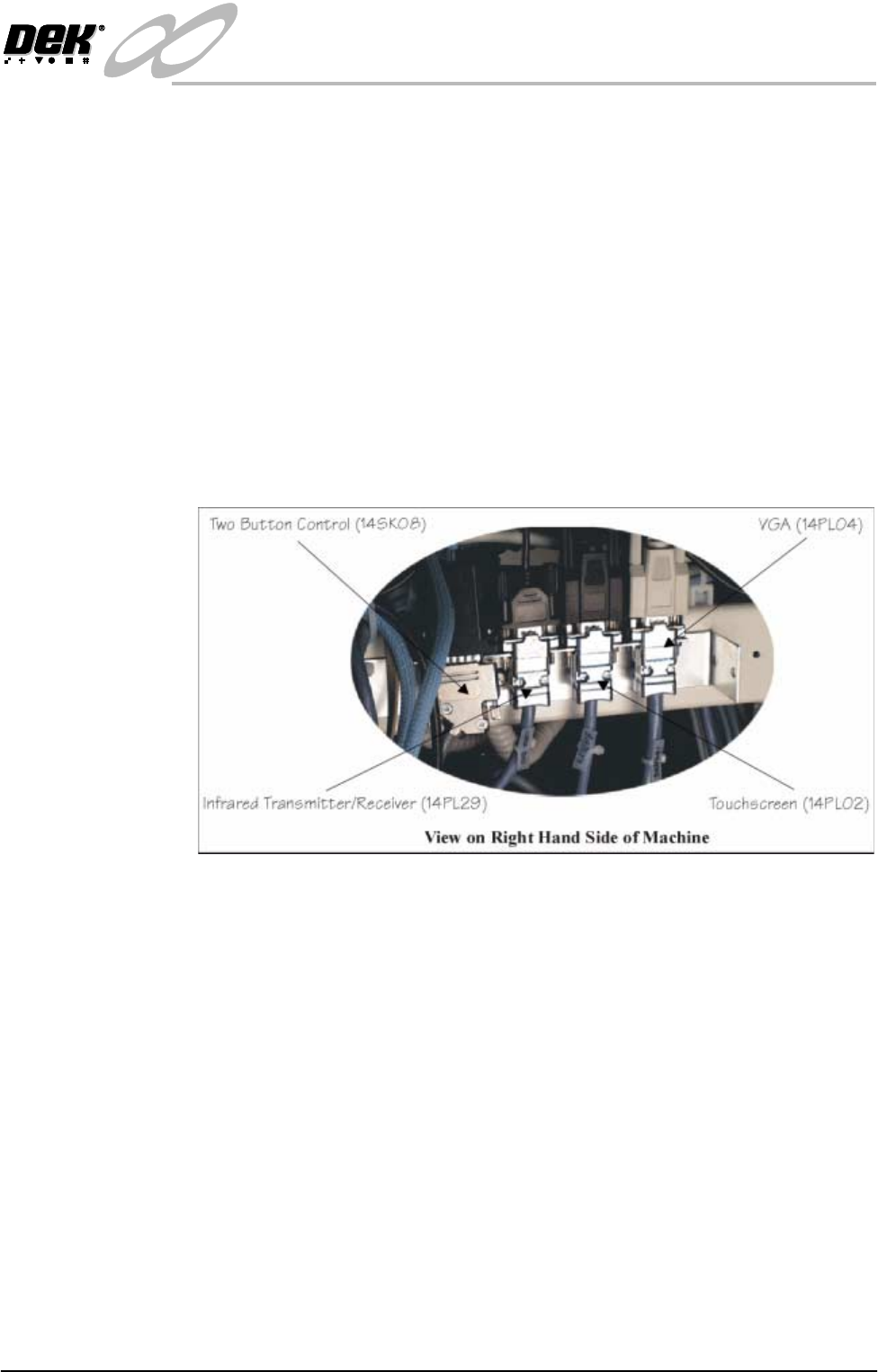

6. Gain access to bracket (Pt No 156875) located on the right hand side of the

lower frame.

7. Disconnect the cables from the MMI to the following connectors fitted to the

bracket:

• Two Button Control (14PL08) - 14SK08

• Infrared Transmitter/Receiver (14SK29) - 14PL29

• VGA Cable (14SK04) - 14PL04

• Touchscreen (14SK02) - 14PL02

8. Disconnect the keyboard and mouse 6 way din connectors at sockets 14SK05

and 14SK06 respectively.

9. Disconnect the monitor power supply cable at 14SK11.

10.Remove the disconnected MMI cables from the machine.

11.Remove the end stop pin from the slot below the keyboard in the lower MMI
