INFINITY
EX
TRANSPORTATION
MAJOR RELOCATION
31.18 Technical Reference Manual Chapter Issue 3 Jan 04
11.Ensuring the auxiliary conveyor is fully supported, remove the bolts loos-
ened in Step 10 and remove the conveyor from the machine.
12.Refit the left hand machine side panels.
13.Switch on the m3 Jan 04achine, remove the head prop and lower the head.
Removal of the 12″
MMI Assembly
The following procedure details how to remove the MMI assembly from the
machine.
NOTE
Ensure that the machine is switched OFF at the mains isolator.
1. Unfasten the machine front right corner access panel, by releasing the three
quick release fasteners. Unplug the E Stop connector from the back of the
corner panel and disconnect the System button at plug 8PL14. Release the
ESD cable by pulling the cable spade connector from the capacitor fixing
point.
2. At the rear of the monitor, remove the following connections on the rear of
the monitor:
• Monitor Power Cable (M16SK03) - Power DC-IN
• VGA Cable (M16PL023) - Display Input
• Touchscreen Cable (M16PL01) - Touch RS-232
3. Remove the infrared receiver/transmitter from beneath the monitor.
4. Unclip the cable conduit from behind the MMI arm.
5. Carefully remove the following cables from the cable conduit utilizing the
slot in the conduit:
• Infrared Transmitter/Receiver
• Monitor Power Supply Cable
INFINITY
EX
TRANSPORTATION
MAJOR RELOCATION
Chapter Issue 3 Jan 04 Technical Reference Manual 31.19
• VGA Cable
• Touchscreen Cable
• Keyboard Cable
• Two Button Control
6. Gain access to bracket (Pt No 156875) located on the right hand side of the
lower frame.
7. Disconnect the cables from the MMI to the following connectors fitted to the
bracket:
• Two Button Control (14PL08) - 14SK08
• Infrared Transmitter/Receiver (14SK29) - 14PL29
• VGA Cable (14SK04) - 14PL04
• Touchscreen (14SK02) - 14PL02
8. Disconnect the keyboard and mouse 6 way din connectors at sockets 14SK05
and 14SK06 respectively.
9. Disconnect the monitor power supply cable at 14SK11.
10.Remove the disconnected MMI cables from the machine.
11.Remove the end stop pin from the slot below the keyboard in the lower MMI
INFINITY
EX
TRANSPORTATION
MAJOR RELOCATION
31.20 Technical Reference Manual Chapter Issue 3 Jan 04
arm.
12.Unfasten the keyboard from the velcro securing strips and remove the
keyboard and cable from the machine.
13.Lift off the MMI assembly, tube and keyboard tray from the MMI arm.
14.Slide the machine right hand access panel off of the MMI arm.
15.Disconnect the MMI arm earth cable from the machine upper frame earth
point.
16.Loosen and remove the M12 nyloc nut, M12 plain washer, large stainless
steel spacer and smaller friction washer from the mounting bracket pivot
post.
17.Lift off the MMI arm from the pivot post.
18.Refit the right hand corner access panel to the machine.
Removal of 15″
MMI Assembly
The following procedure details how to remove the MMI assembly from the
machine.
NOTE
Ensure that the machine is switched OFF at the mains isolator.
1. Unfasten the machine front right corner access panel, by releasing the three
quick release fasteners. Unplug the E Stop connector from the back of the
corner panel and disconnect the System button at plug 8PL114. Release the
ESD cable by pulling the cable spade connector from the capacitor fixing
point.
2. At the rear of the monitor, remove the following connections on the rear of
the monitor:
• Monitor Power Cable - Power DC-IN
• SVGA Cable (M16PL02) - Display Input

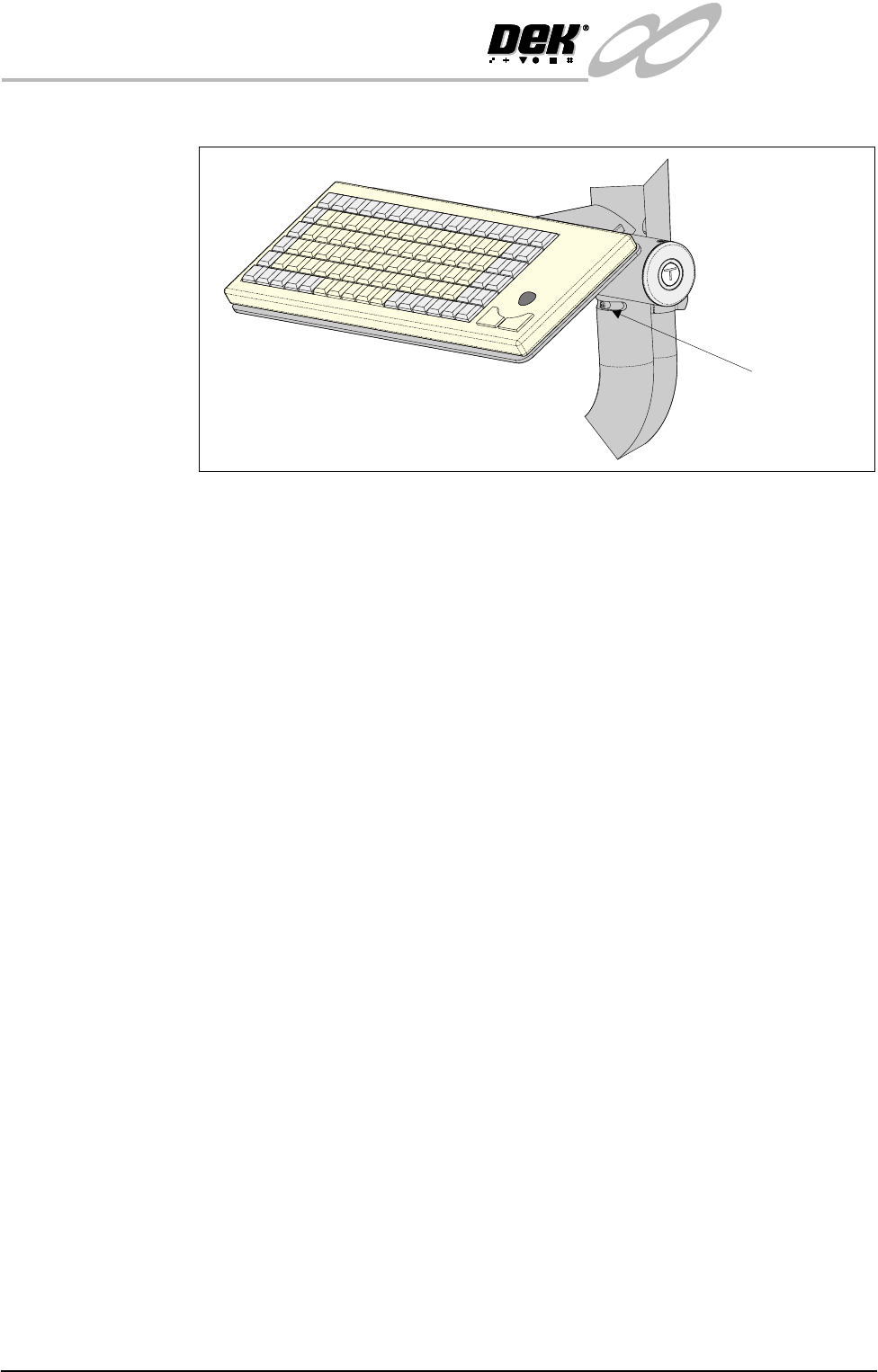

End Stop Pin
