INFINITY EX TRANSPORT ATION UNDE RSCREE N CLEAN ER 31.6 0 Technical Reference Manual Chapter Issue 3 Jan 04 UNDERSCREEN CLEANER Blue USC Assembly Fitting 1. Align the v acuum inlets of the underscre en cleaner to the fle…
INFINITY
EX
TRANSPORTATION
MACHINE POWER UP SEQUENCE
Chapter Issue 3 Jan 04 Technical Reference Manual 31.59
both uprights.
8. Re-tighten the bolts loosened in Step 6 and repeat the check.
9. If adjustment has occurred, carry out Fitting of Auxiliary Conveyors (HTC
Option) - Levelling Check para 4.
3-Stage Conveyor
Controller (M27)
The 3-Stage conveyor controller (M27) enclosure is located at the rear of the
machine above the ac power supply module (M23). This enclosure must be set
to the required machine configuration.
3-Stage/Single Stage
Mode
For 3 stage mode, both 1/3 Stage Operation buttons on the M27 enclosure must
be OFF (LED extinguished). The LCD screen on the PLC displays ‘3 Stage’ on
the top line.
For single stage operation, both 1/3 Stage Operation buttons must be ON (LED
lit). The LCD screen on the PLC displays ‘1 Stage’ on the top line.
Fast/Normal Mode For a conveyor to operate in fast transfer mode, both Fast Transfers Disabled
buttons on the M27 enclosure must be OFF (LED extinguished). The LCD
screen on the PLC displays ‘Fst.Trans’ on the bottom line for 5 seconds on
power up or when the a button is switched to OFF.
For a conveyor to operate in normal transfer mode, both Fast Transfers Disabled
buttons must be ON (LED lit). Normal transfer mode is not displayed on the
PLC.
Rear View of Left Hand Auxiliary Conveyor
Bolt C on Outer Face
Of Conveyor Frame Uprights
Rear Upright of
Conveyor Frame
Front Upright of
Conveyor Frame
Height Adjustment
Grub Screw
Height Adjustment
Grub Screw
INFINITY
EX
TRANSPORTATION
UNDERSCREEN CLEANER
31.60 Technical Reference Manual Chapter Issue 3 Jan 04

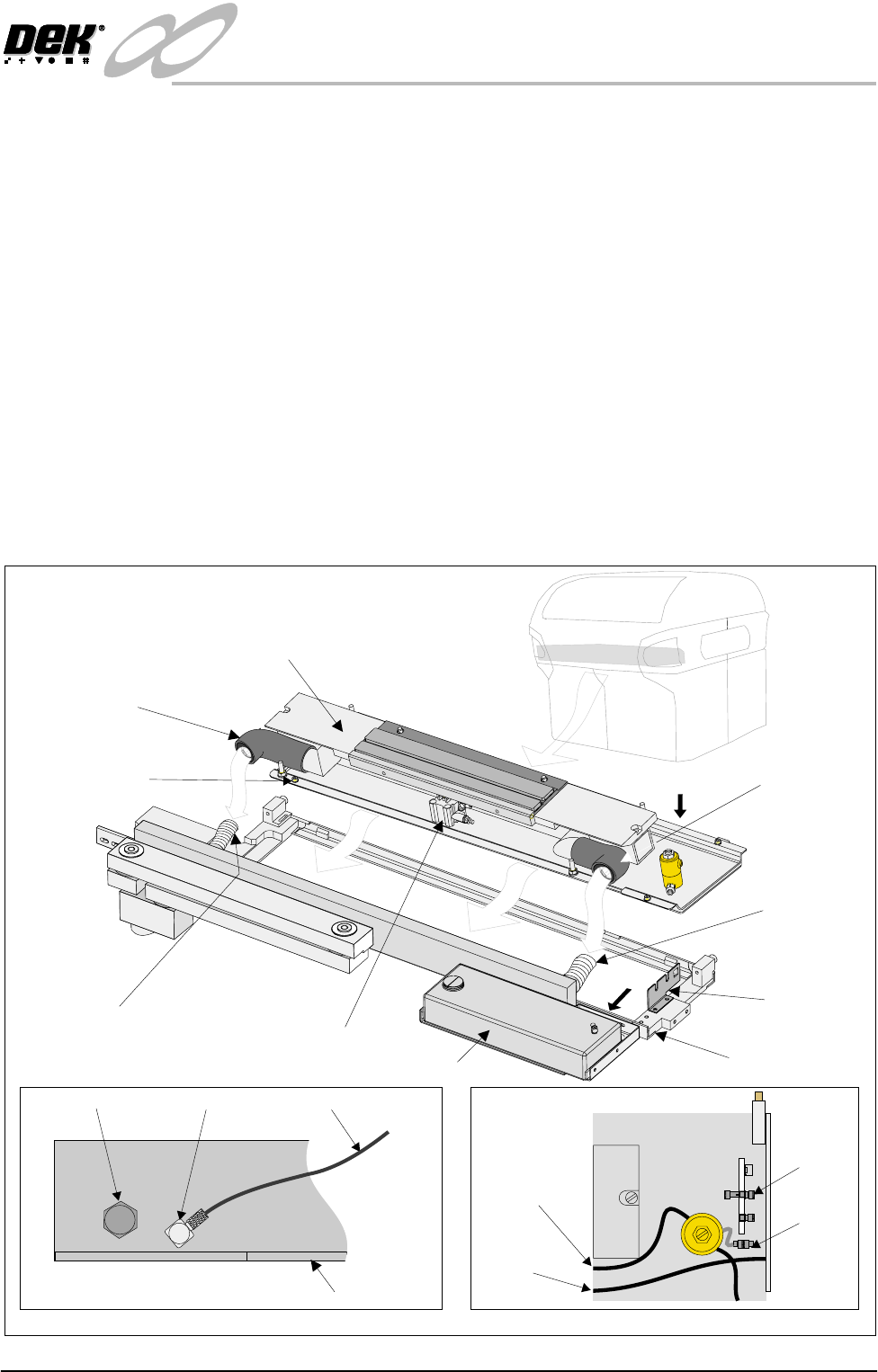

UNDERSCREEN CLEANER
Blue USC
Assembly Fitting
1. Align the vacuum inlets of the underscreen cleaner to the flexible vacuum
connections of the underscreen cleaner tray.
2. Position the underscreen cleaner in the underscreen cleaner tray.
3. Connect the left and right hand flexible vacuum connections to the under-
screen cleaner.
4. Fit electrical connections 8PL72, 8SK73, 8SK71 to the connector bracket
(view on Arrow B).
5. Connect the solvent tank outlet hose to the outlet elbow (view on Arrow A).
6. On completion of fitment, power up machine, select F10 and type bluon.
Press Enter. The message ‘Blue Underscreen Cleaner Enabled’ is dis-
played in the message prompt bar.
7. Check connections for air/solvent leaks.
8. Ensure the cable tie fitted around the take up roll is removed before use.
Solvent Tank
Flexible Vacuum
Connection
Flexible
Vacuum
Connection
Under Screen
Cleaner Tray
Under Screen Cleaner Assembly
Vacuum Inlet
(left hand)
Vacuum Inlet
(right hand)
Connector
Bracket
A
B
Enlarged View on Arrow A
Solvent Low Sensor Elbow Outlet Hose
Solvent Tank (Rear)
Enlarged View on Arrow B
8PL72
8SK73
8SK71
8SK76
Electrical Connections
INFINITY
EX
TRANSPORTATION
UNDERSCREEN CLEANER
Chapter Issue 3 Jan 04 Technical Reference Manual 31.61
Vortex USC
Assembly Fitting
1. Align the vacuum inlets of the underscreen cleaner to the flexible vacuum
connections of the underscreen cleaner tray.
2. Position the underscreen cleaner in the underscreen cleaner tray.
3. Remove any lateral movement of the cleaner within the tray by means of the
four adjuster stops.
4. Connect the left and right hand flexible vacuum connections to the under-
screen cleaner.
5. Fit electrical connections 8SK71 to the connector bracket and 8SK76 to the
solvent pinch valve flylead (view on Arrow B).
6. Connect the solvent tank outlet hose to the outlet elbow (view on Arrow A).
7. Connect the air hose to the pneumatic cylinder.
8. On completion of fitment, power up machine, select F10 and type vorton.
Press Enter. The message ‘Vortex Underscreen Cleaner Enabled’ is
displayed in the message prompt bar.
9. Check connections for air/solvent leaks.
8SK73
8SK76
To Solvent
Spray Bar
To Pneumatic
Cylinder
A
B
Solvent Tank
Flexible Vacuum
Connection
Pneumatic Cylinder
Flexible
Vacuum
Connection
Under Screen
Cleaner Tray
Vortex Under Screen
Cleaner Assembly
Vacuum Inlet
(left hand)
Vacuum Inlet
(right hand)
Connector
Bracket
Adjuster Stop
(4 positions)
Enlarged View on Arrow A
Solvent Low Sensor Elbow Outlet Hose
Solvent Tank (Rear)
Enlarged View on Arrow B
Electrical Connections
