INFINITY
EX
TRANSPORTATION
MACHINE POWER UP SEQUENCE
Chapter Issue 3 Jan 04 Technical Reference Manual 31.51
h. The Chkdsk program displays a DOS prompt. Select Y, Enter
i. When the DOS window closes, select Start on the taskbar, select Shut-
down...
j. Click the radio button alongside ‘Restart the computer?’. Select Yes .
The system closes down and restarts. The Chkdsk program executes and
checks the hard disk for errors. On completion of Chkdsk, Windows NT
starts in the standard way.
INFINITY
EX
TRANSPORTATION
MACHINE POWER UP SEQUENCE
31.52 Technical Reference Manual Chapter Issue 3 Jan 04

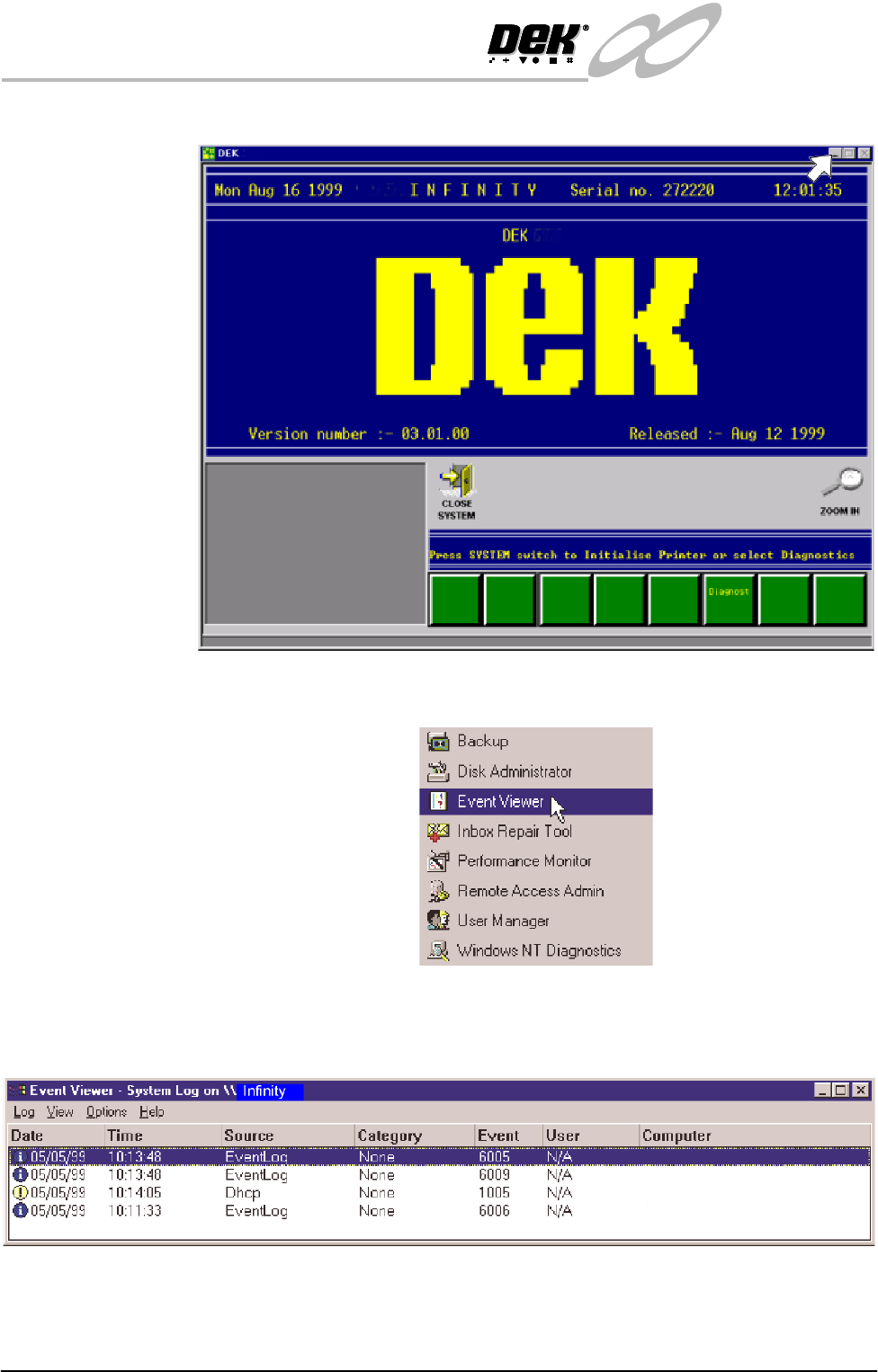

4. On completion of ‘auto login’, minimise the DEK 265 program.
5. Select Start on the taskbar, Programs, Administrative Tools and Event
Viewer
6. Examine the Event Log, looking for errors. Errors are indicated by a red icon
in the leftmost column. Any errors reported that display 'Disk' in the Source
column, indicate a problem has been found on the system hard disk.
When errors are found, the Event Log is to be forwarded to DEK CSG
Engineering, by e-mail, hardcopy or fax.
7. If no errors are found in the Event Viewer, close down Event Viewer.
INFINITY
EX
TRANSPORTATION
MACHINE POWER UP SEQUENCE
Chapter Issue 3 Jan 04 Technical Reference Manual 31.53

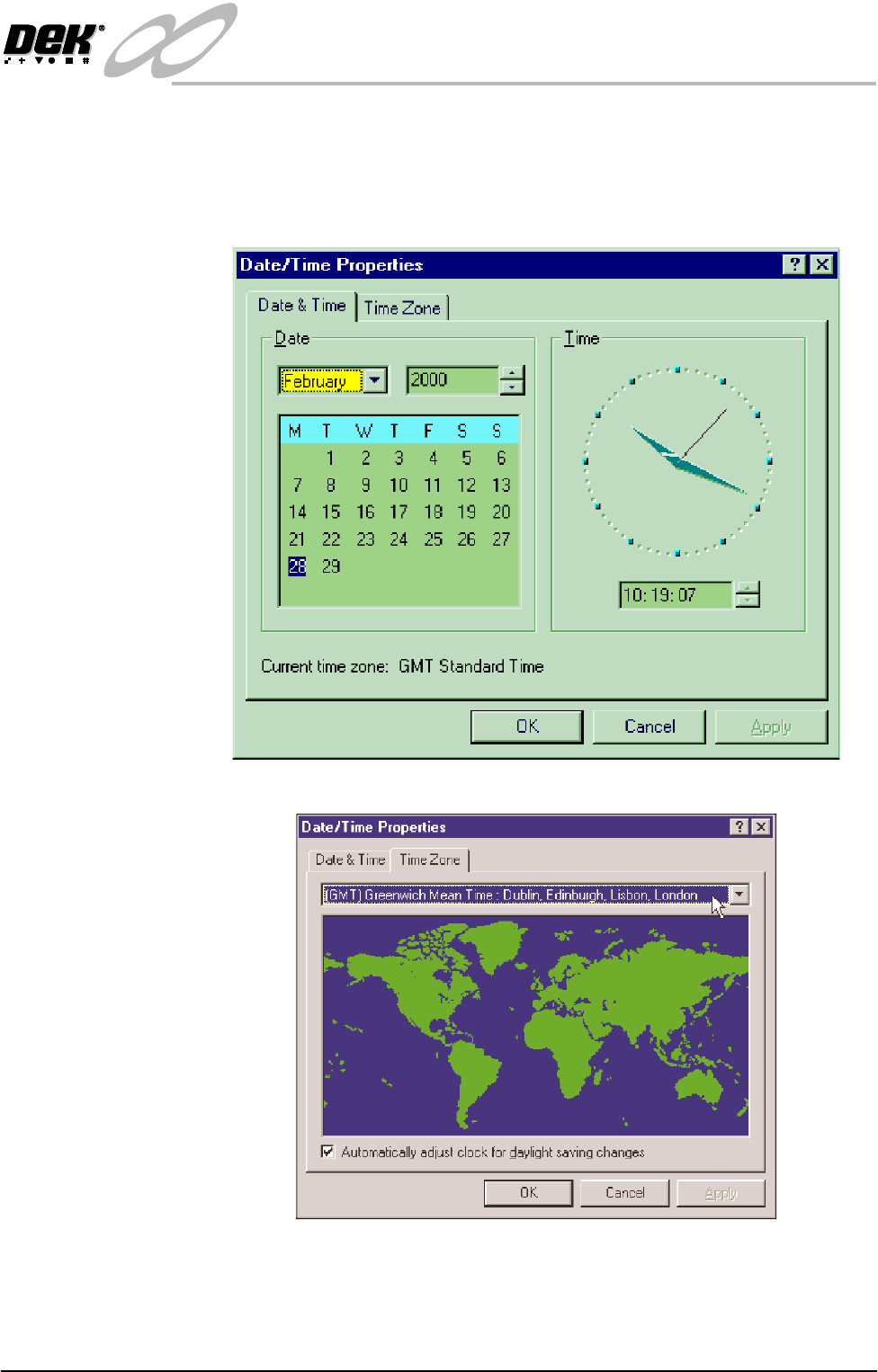

Set Time & Locale 8. In order for the machine PC to log events correctly, the system time, date and
locale must be set.
a. Using the mouse, double click on the time, displayed at the right hand side
of the Windows NT taskbar. The Date/Time Properties window is dis-
played.
b. Click on the Time Zone tab.
c. Select the appropriate locale/time zone from the drop down menu box.
d. Click on Apply.
