INFINITY
EX
TRANSPORTATION
MAJOR RELOCATION
31.36 Technical Reference Manual Chapter Issue 3 Jan 04
g. Using a feeler gauges check the gap between the auxiliary conveyor rail
and the inner face of board stop is a maximum of 0.1mm . Adjust the gap
as necessary by repositioning the board stop bracket.
h. Tighten the screws fitted 3f and recheck the gap.
4. Carry out the following procedure to check and if required adjust the left
hand auxiliary conveyor levelling:
a. Adjust the left hand auxiliary conveyor rail width to approximately
250mm.
b. Place a Board Clamp Setting Plate Pt No 140403 onto the auxiliary
conveyor transport belts.
c. Place a spirit level on top of the setting plate and check the levelness of
the conveyor in the X and Y planes.
d. If adjustment in the X plane is required, carry out Steps 4e - 4h.
X
Y
Board Clamp
Setting Plate
View on Auxiliary Conveyor
Spirit Level
INFINITY
EX
TRANSPORTATION
MAJOR RELOCATION
Chapter Issue 3 Jan 04 Technical Reference Manual 31.37
e. Loosen the three hexagonal headed bolts, two on the inner face and one on
the outer face of the front upright of the conveyor frame.
f. Using the two hexagonal headed bolts on the inner face of the rear upright
of the conveyor frame, carefully loosen or tighten the bolts to level the
conveyor.
NOTE
Tightening bolt A and loosening bolt B raises the inboard end of the
conveyor rails. Loosening bolt A and tightening bolt B lowers the inboard
end of the conveyor rails.
g. Carefully lock bolts A and B in position using the locknuts provided.
h. Tighten the three bolts on the front upright of the conveyor frame and
repeat the check.
i. If adjustment in the Y plane is required, carry out Steps 4j - 4l.
j. Loosen the bolt C on the outer face of the appropriate conveyor upright.
k. Adjust the height of the upright by loosening or tightening the height
adjustment grub screw fitted to the top of the upright.
Rear View of Left Hand Auxiliary Conveyor
(Configured as Upline Conveyor)
Bolt A
Bolt B
Rear Upright of
Conveyor Frame
Front Upright of
Conveyor Frame
INFINITY
EX
TRANSPORTATION
MAJOR RELOCATION
31.38 Technical Reference Manual Chapter Issue 3 Jan 04

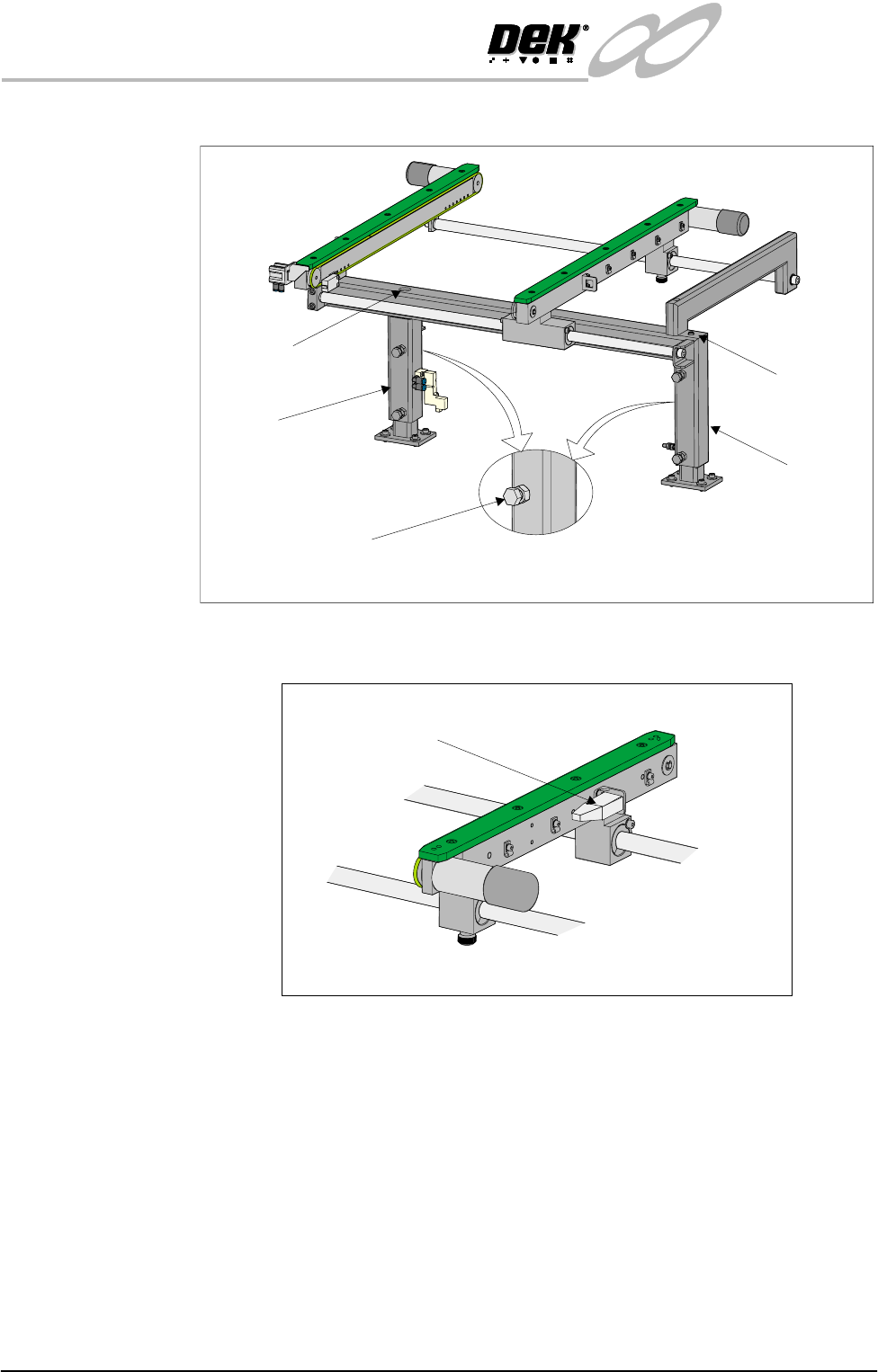

l. Tighten bolt C loosened in Step 4j and repeat the check.
5. Connect M27PL07 to the rear transport belt motor socket fitted to the rear
face of the rear auxiliary conveyor rail.
6. Connect to following connectors situated on the front auxiliary conveyor rail:
• M27SK05 - Auxiliary conveyor sensor
Rear View of Left Hand Auxiliary Conveyor
Bolt C on Outer Face
Of Conveyor Frame Uprights
Rear Upright of
Conveyor Frame
Front Upright of
Conveyor Frame
Height Adjustment
Grub Screw
Height Adjustment
Grub Screw
Connector M27PL07
Rear View on Left Hand Auxiliary Conveyor
