INFINITY EX TRANS PORTATION MACHI NE POWE R UP SEQUE NCE Chapter Issue 3 J an 04 Technical Reference Manual 31.49 MA CHINE PO WER UP SEQUENCE Hard Disk Ch eck 1. Connect the mains supply to the machine. 2. T urn the main…
INFINITY
EX
TRANSPORTATION
PRE INSTALLATION CHECKS
31.48 Technical Reference Manual Chapter Issue 3 Jan 04
Figure 31-15 Machine Levelling
Isometric View Showing Levelling of Tooling Base Plate
Tooling Base Plate Engineering Level
Adjustable Mounting Feet
(4 positions)
INFINITY
EX
TRANSPORTATION
MACHINE POWER UP SEQUENCE
Chapter Issue 3 Jan 04 Technical Reference Manual 31.49
MACHINE POWER UP SEQUENCE
Hard Disk Check 1. Connect the mains supply to the machine.
2. Turn the mains isolation switch ON.
Checking Hard Disk
Partition C
3. Carry out the following:
a. On completion of ‘auto login’, minimise the DEK program.
b. Using the mouse, click on the Start button on the taskbar. The Start Menu
is displayed.
c. Click on Run.
INFINITY
EX
TRANSPORTATION
MACHINE POWER UP SEQUENCE
31.50 Technical Reference Manual Chapter Issue 3 Jan 04

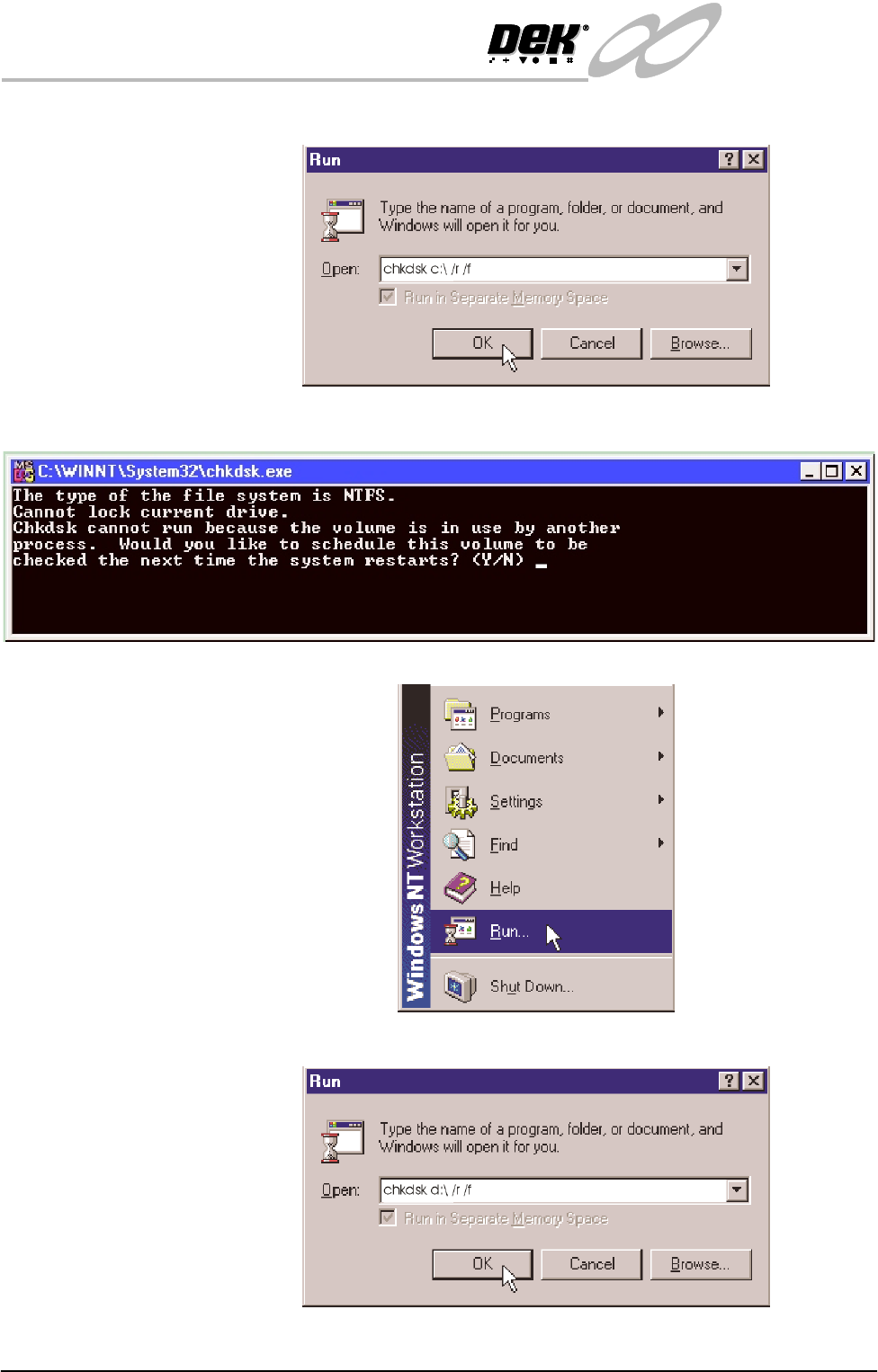

d. Click in the open box, and type chkdsk c:\ /r /f
e. The Chkdsk program displays a DOS prompt. Select Y, Enter.
Checking Hard Disk
Partition D
f. When the DOS window closes, select Start on the taskbar, select Run...
g. Click in the open box and type chkdsk d:\ /r /f
