INFINITY
EX
TRANSPORTATION
FOREIGN MACHINE INTERFACE
Chapter Issue 3 Jan 04 Technical Reference Manual 31.69
Part Numbers & Settings
NOTE
DEK do not supply Dynapert, Philips or Europlacer interface cables.
FMI Cables With the cables supplied, connect the upline and downline machines to the
screen printer MIU box connections. Cables should be routed down behind the
rear access panel.
Procedure For machines with the MIU option, ensure MIU is configured with the correct
protocols for upline and downline machines as detailed earlier.
1. Power up the machine using the mains isolator, ensure that the air supply is
connected.
The message prompt bar displays - ‘Press System Switch to Initialize
printer or Select Diagnostics or Load Data’.
2. Press System, the machine initializes.
The main control screen is displayed and the Menu Bar shows the functions
available.
3. Select Maint. (F8).
4. Select Set Prefs (F5).
Protocol MIU Setting Cable Part Number
Upline SW2 Downline SW2 Upline Downline
Dynapert 0 0 N/A N/A
Philips 1 1 N/A N/A
SMEMA 2 2 131343 131345
Siemens 3 3 131335 131337
SMPI 4 4 131331 131333
TDK 5 5 131323 131325
Europlacer 6 6 N/A N/A
Fuji 7 7 126757 126758
Panasonic 7 7 131339 131341
Sanyo 8 8 146120 146119
Sanyo Flow Out 9 9 146120 146119
Run Head
Paste
Load
Clean
Screen
Adjust Setup Monitor Maint.
Run Head
Paste
Load
Clean
Screen
Adjust Setup Monitor Maint.
Calibrat
Pressure
Calibrat
Offset
Calibrat
Vision
House
Keeping
Set
Prefs
Diagnost
Test
Cycles
Exit
INFINITY
EX
TRANSPORTATION
FOREIGN MACHINE INTERFACE
31.70 Technical Reference Manual Chapter Issue 3 Jan 04

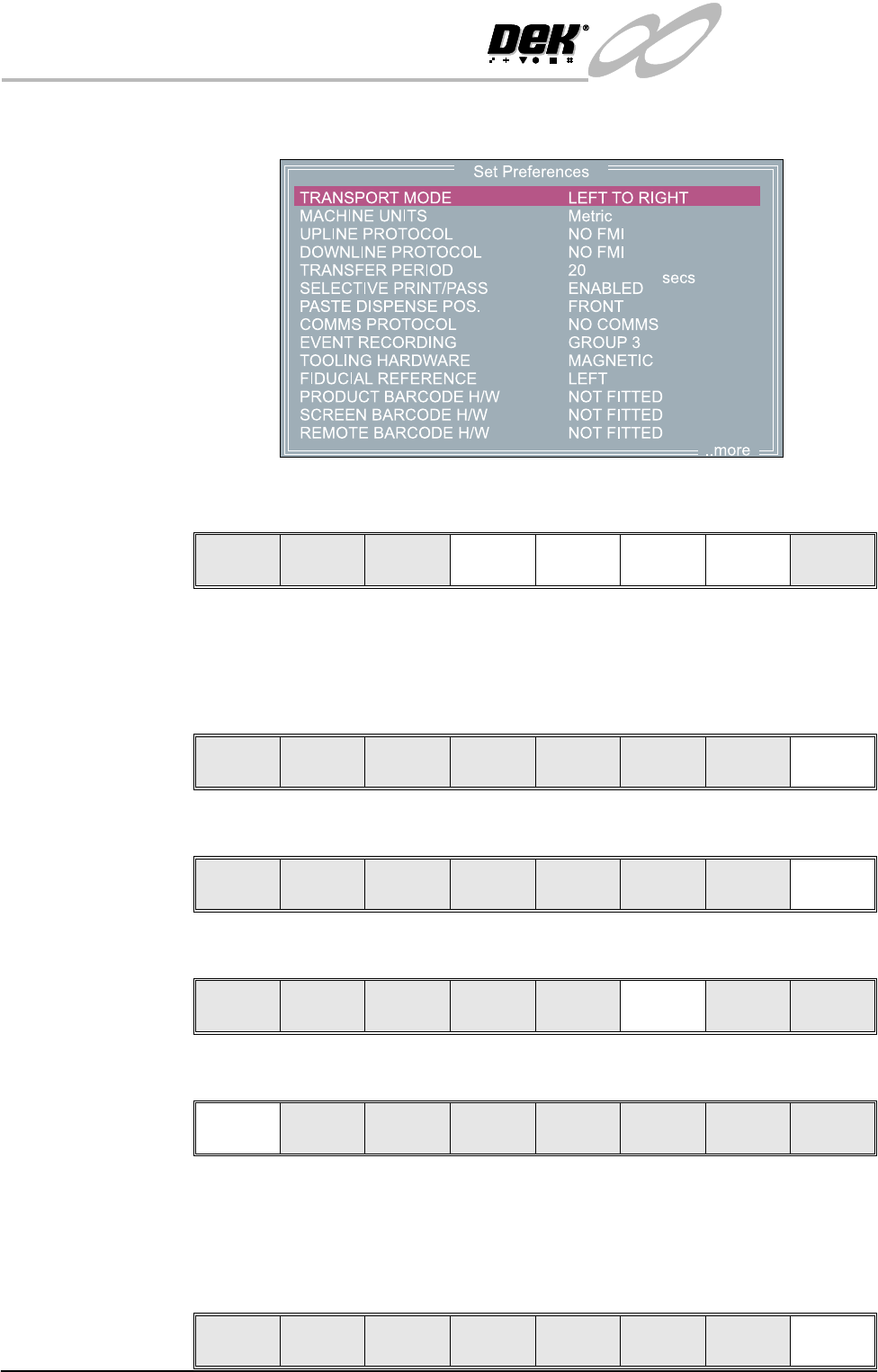

The Set Preferences window is displayed.
5. Using the Next and Previous keys highlight the Upline Protocol function.
Using the Incr. and Decr. keys select MIU.
6. Repeat step 5. for the Downline Protocol. At this stage, if required, change
the Display Units, Transfer Mode etc.
7. When completed select Exit (F8). This saves the revised printer configura-
tion.
8. Select Exit (F8).
9. Select Setup (F6).
10.Select Mode (F1) until the mode displayed changes to No Print.
NOTE
In No Print mode, the DEK machine acts as a conveyor, passing the board
through the machine without printing.
11.Select Exit (F8).
Next Previous Incr. Decr. Exit
Next Previous Incr. Decr. Exit
Calibrat
Pressure
Calibrat
Offset
Calibrat
Vision
House
Keeping
Set
Prefs
Diagnost
Test
Cycles
Exit
Run Head
Paste
Load
Clean
Screen
Adjust Setup Monitor Maint.
Mode
Load
Data
Edit
Data
Setup
Squeegee
Change
Screen
Change
Tooling
Change
Language
Exit
Mode
Load
Data
Edit
Data
Setup
Squeegee
Change
Screen
Change
Tooling
Change
Language
Exit
INFINITY
EX
TRANSPORTATION
FOREIGN MACHINE INTERFACE
Chapter Issue 3 Jan 04 Technical Reference Manual 31.71
12.Ensure that the Upline and Downline Machines are connected and are
powered up (E Stop loop connected if necessary).
13.Select Run (F1).
14.The following function keys are displayed:
The screen printer requests a board from the upline machine and pass it
through the machine. The board stops at the sensor on the conveyor. On
request from the downline machine the board passes onto the external
conveyor. When the sensor is clear the screen printer requests another board
from the upline machine and the sequence repeats.
This shows that the interface is working between the screen printer and the
external machines.
15.Select End Run (F1).
NOTE
If the machine has auxiliary conveyors fitted, on machine initialisation, each
auxiliary conveyor PLC needs to detect the machine ‘System Power’ and an
initial ‘Downline Availiable’ signals before the system starts operating. If
the machine is being run in a stand alone environment, the ‘Downline
Available’ signal from the downline machine can be mimicked by shorting
pins 1 & 2 of loom Pt NO 160645 to the downline machine.
Run Head
Paste
Load
Clean
Screen
Adjust Setup Monitor Maint.
End
Run
Stop
Cycle
Paste
Load
Clean
Screen
Adjust
Knead
Paste
Adjust
Inspect
End
Run
Stop
Cycle
Paste
Load
Clean
Screen
Adjust
Knead
Paste
Adjust
Inspect
