Chapter Issue 3 Jan 04 Technical Reference Manual 31.35
2. Whilst fully supporting the left hand auxiliary conveyor, attach the conveyor
to the machine lower frame attachment points using eight M5 bolts. DO
NOT fully tighten the bolts at this stage.
3. Carry out the following procedure to check the gap between the left hand
auxiliary conveyor rails and the print station rails:
a. Disconnect the two 4mm pneumatic pipe connections to the conveyor
board stop.
b. Loosen and remove the two M5 cap head screws securing the board stop
bracket to the conveyor and remove the bracket and board stop.
c. Using feeler gauges or a 3mm allen key, ensure that the gap between the
print station and the left hand auxiliary conveyor (in two positions) is 3.0
± 0.5mm.
d. If adjustment is required, carefully adjust the position of the conveyor to
obtain the 3.0±0.5mm gap.
e. Tighten the M5 securing bolts fitted in Step 2.
f. Refit the board stop and bracket to the auxiliary conveyor using the two
M5 caphead screws removed in Step 3b. DO NOT fully tighten the
screws.
Board Clamp
Board Transport Rail
Auxiliary Conveyor
Print Station
Plan View on Print Station and Auxiliary Rails
5157438
3.0mm +/- 0.5mm
Rear View of Left Auxiliary Conveyor
Left Hand Auxiliary
Conveyor Frame
Conveyor Frame to
Machine Main Frame
(4 bolts in 2 positions)
INFINITY
EX
TRANSPORTATION
MAJOR RELOCATION
31.36 Technical Reference Manual Chapter Issue 3 Jan 04

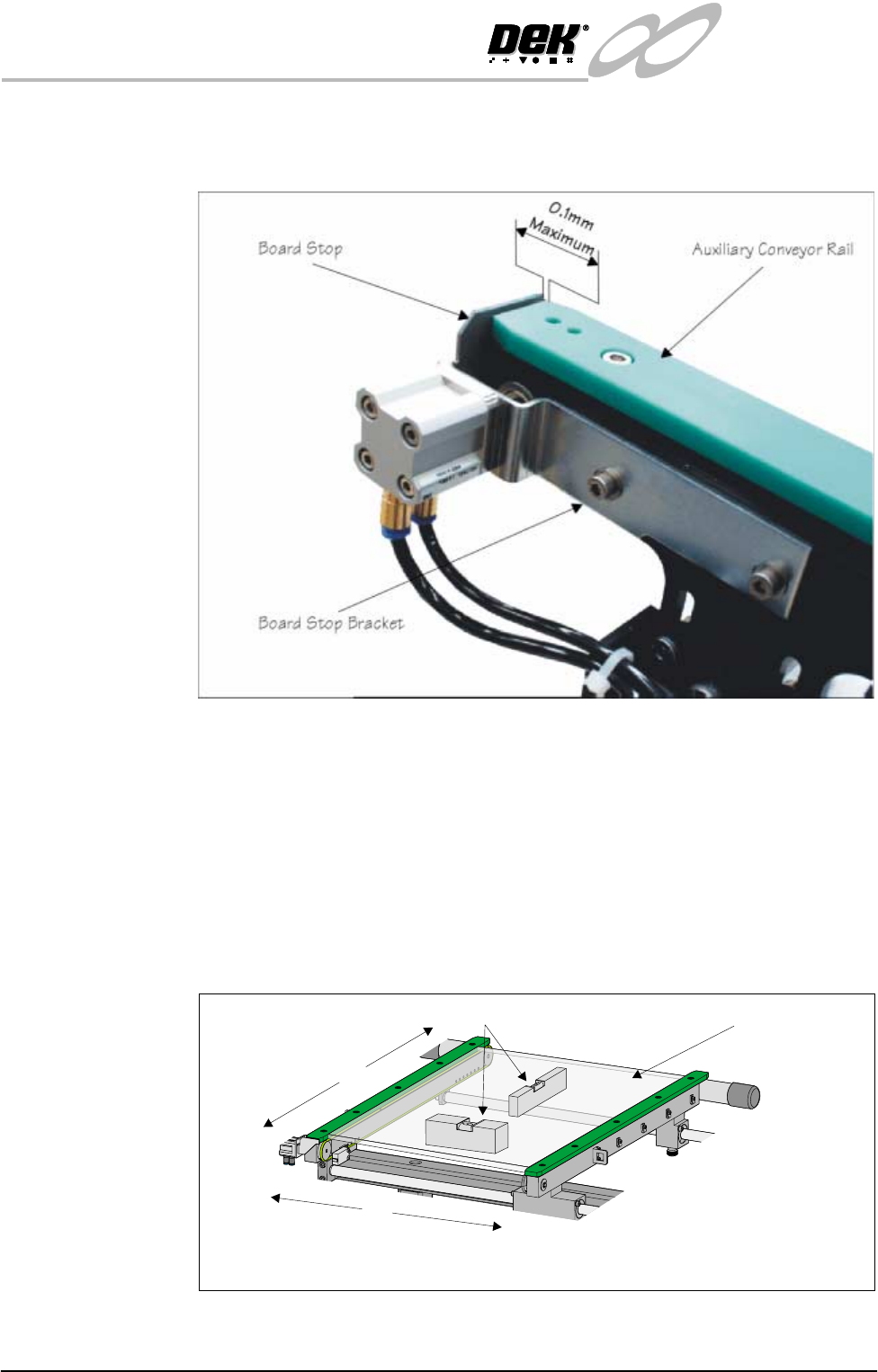

g. Using a feeler gauges check the gap between the auxiliary conveyor rail
and the inner face of board stop is a maximum of 0.1mm . Adjust the gap
as necessary by repositioning the board stop bracket.
h. Tighten the screws fitted 3f and recheck the gap.
4. Carry out the following procedure to check and if required adjust the left
hand auxiliary conveyor levelling:
a. Adjust the left hand auxiliary conveyor rail width to approximately
250mm.
b. Place a Board Clamp Setting Plate Pt No 140403 onto the auxiliary
conveyor transport belts.
c. Place a spirit level on top of the setting plate and check the levelness of
the conveyor in the X and Y planes.
d. If adjustment in the X plane is required, carry out Steps 4e - 4h.
X
Y
Board Clamp
Setting Plate
View on Auxiliary Conveyor
Spirit Level
INFINITY
EX
TRANSPORTATION
MAJOR RELOCATION
Chapter Issue 3 Jan 04 Technical Reference Manual 31.37
e. Loosen the three hexagonal headed bolts, two on the inner face and one on
the outer face of the front upright of the conveyor frame.
f. Using the two hexagonal headed bolts on the inner face of the rear upright
of the conveyor frame, carefully loosen or tighten the bolts to level the
conveyor.
NOTE
Tightening bolt A and loosening bolt B raises the inboard end of the
conveyor rails. Loosening bolt A and tightening bolt B lowers the inboard
end of the conveyor rails.
g. Carefully lock bolts A and B in position using the locknuts provided.
h. Tighten the three bolts on the front upright of the conveyor frame and
repeat the check.
i. If adjustment in the Y plane is required, carry out Steps 4j - 4l.
j. Loosen the bolt C on the outer face of the appropriate conveyor upright.
k. Adjust the height of the upright by loosening or tightening the height
adjustment grub screw fitted to the top of the upright.

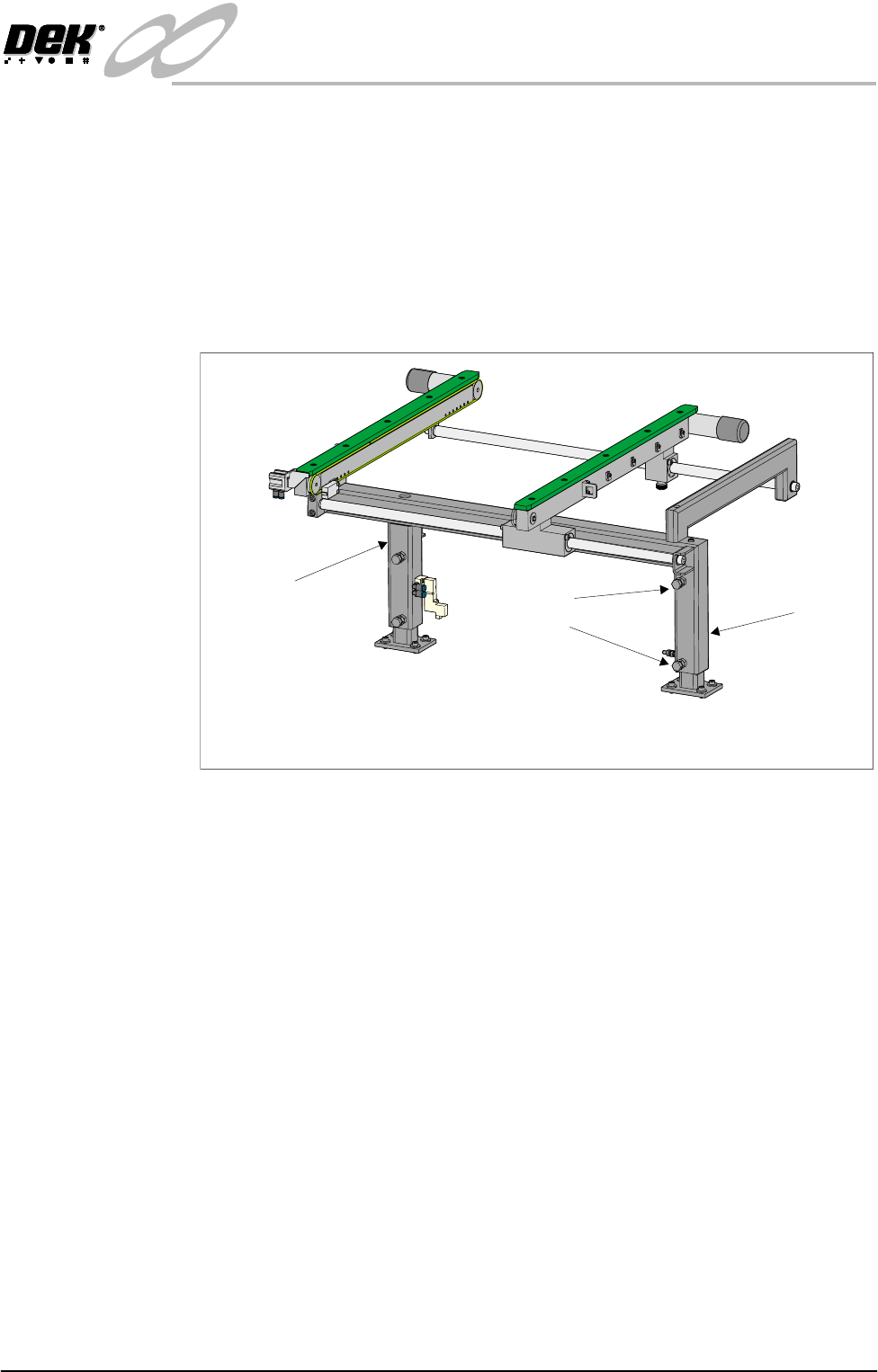

Rear View of Left Hand Auxiliary Conveyor
(Configured as Upline Conveyor)
Bolt A
Bolt B
Rear Upright of
Conveyor Frame
Front Upright of
Conveyor Frame
