Chapter Issue 3 Jan 04 Technical Reference Manual 31.31
• Touchscreen (14SK02) - 14PL02
15.The keyboard cable splits into two and terminates in two x 6 way mini din
plugs. Connect the keyboard plug to machine socket 14SK05 and connect
the mouse plug to machine socket 14SK06.
16.Connect the monitor power supply connector (14PL11) to machine connec-
tor 14SK11.
17.Lay the MMI cables in a neat order and cable tie in position, leaving enough
slack for the MMI to rotate freely.
18.Connect the System button loom to connector 8PL114. Refit the E Stop
connector to the E Stop and ESD cable to the capacitor fixing point.
19.Refit the right hand corner access panel to the machine and fasten using the
three quick release fasteners.
20.Fit the MMI arm earth cable to the machine upper frame earth point.
Fitting of 15″ MMI
Assembly
The following procedure details how to fit the MMI assembly to the machine.
NOTE
Ensure that the machine is switched OFF at the mains isolator.
1. Unfasten the machine front right corner access panel, by releasing the three
quick release fasteners. Unplug the E Stop connector from the back of the
corner panel and disconnect the System button at plug 8PL114. Release the
ESD cable by pulling the cable spade connector from the capacitor fixing
point. Remove the access panel from the machine.
2. Fit the large friction washer to the MMI support bracket so that the dowel
INFINITY
EX
TRANSPORTATION
MAJOR RELOCATION
31.32 Technical Reference Manual Chapter Issue 3 Jan 04
fits through the washer locating hole, (figure below refers).
3. Locate the MMI arm onto the pivot post of the machine MMI arm support
bracket. Ensure the MMI arm locates onto the bracket dowel correctly so
that arm travel is restricted to an approximate 90
o
arc of movement.
4. Fit the smaller friction washer, large stainless steel spacer, M12 plain washer
and M12 nyloc nut to the mounting bracket pivot post, (graphic below
refers). Tighten the nut until the MMI arm offers resistance when moved.
5. Slide the machine right hand corner access panel over the MMI arm.
6. Fit the MMI assembly, tube and keyboard tray to the MMI tube and secure

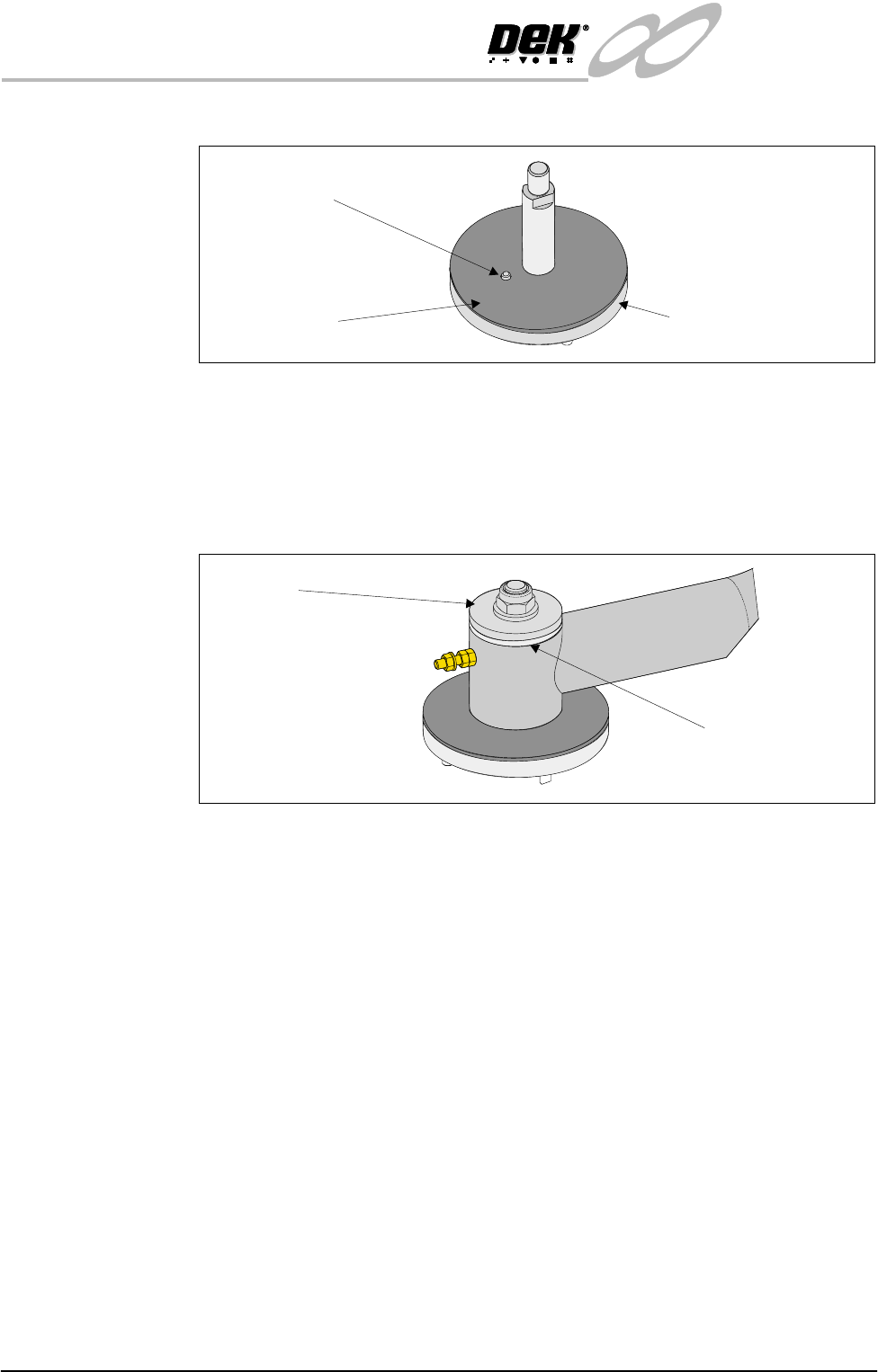

Friction Washer
Locating Dowel
MMI Mounting Pivot Post
Friction Washer
Spacer
INFINITY
EX
TRANSPORTATION
MAJOR RELOCATION
Chapter Issue 3 Jan 04 Technical Reference Manual 31.33
with the end stop pin.
7. Fit the keyboard to the keyboard tray, ensure the keyboard is secured to the
tray with the velcro hook and eye strips.
8. Utilizing the slot in the cable conduit, feed the following cables through the
conduit:
• Monitor Power Supply
• SVGA Cable (M16PL02)
• Touchscreen Cable (M16PL01)
• Keyboard Cable
9. Carefully feed the two button control cable from the rear of the MMI tube
through the cable conduit.
10.Utilizing the three pipe clamps, clip the cable conduit to the rear of the MMI
tube.
11.Connect the cables to the following connections on the rear of the monitor:
• Monitor Power Cable - Power DC-IN
• SVGA Cable - Display Input
End Stop Pin
