Chapter Issue 3 Jan 04 Technical Reference Manual 31.33
with the end stop pin.
7. Fit the keyboard to the keyboard tray, ensure the keyboard is secured to the
tray with the velcro hook and eye strips.

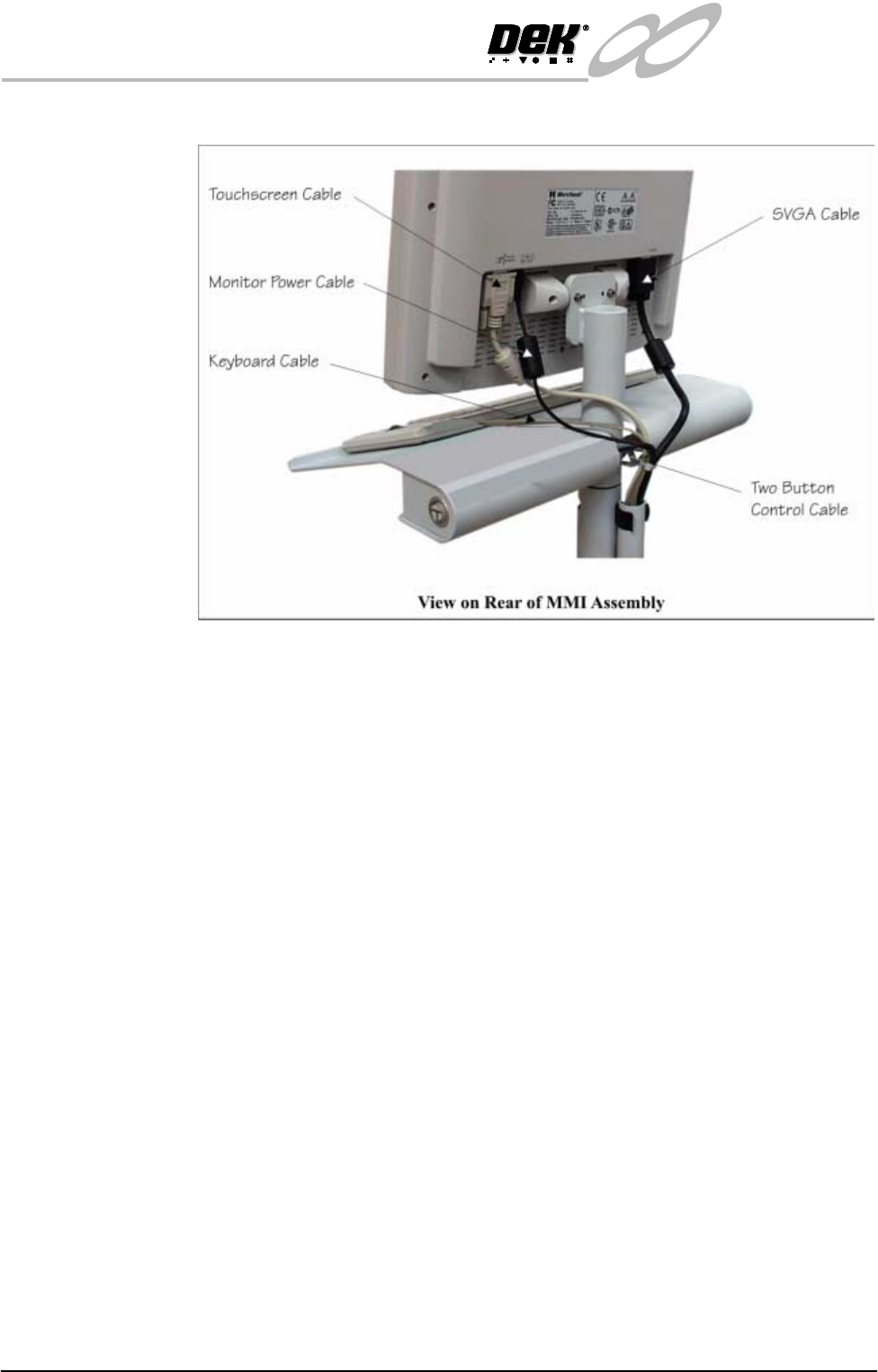

8. Utilizing the slot in the cable conduit, feed the following cables through the
conduit:
• Monitor Power Supply
• SVGA Cable (M16PL02)
• Touchscreen Cable (M16PL01)
• Keyboard Cable
9. Carefully feed the two button control cable from the rear of the MMI tube
through the cable conduit.
10.Utilizing the three pipe clamps, clip the cable conduit to the rear of the MMI
tube.
11.Connect the cables to the following connections on the rear of the monitor:
• Monitor Power Cable - Power DC-IN
• SVGA Cable - Display Input

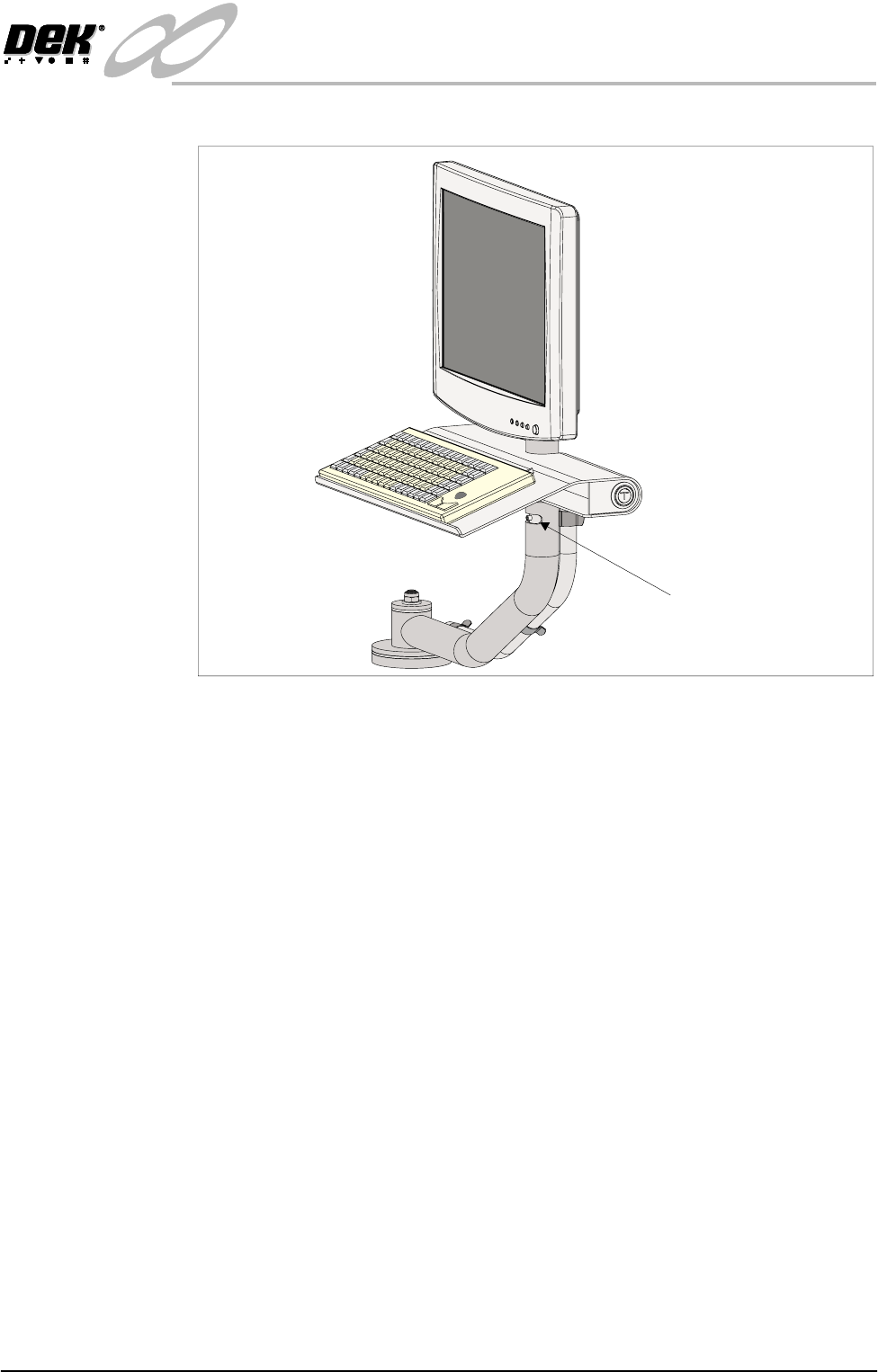

End Stop Pin
INFINITY
EX
TRANSPORTATION
MAJOR RELOCATION
31.34 Technical Reference Manual Chapter Issue 3 Jan 04
• Touchscreen Cable - Touch RS-232
12.Gain access to bracket (Pt No 156875) located on the right hand side of the
lower frame.
13.Connect the cables from the MMI to the following connectors fitted to the
bracket:
• Two Button Control (14PL08) - 14SK08
• SVGA Cable (14SK04) - 14PL04
• Touchscreen (14SK02) - 14PL02
• Keyboard Mouse (14PL06) - SK06
• Keyboard (14PL05) - 14SK05 (if Product Barcode Reader not fitted)
NOTE
For machines with the product barcode use the extension cable Pt No 0-
604027-01 to convert the scanner DIN plug to a mini-DIN socket and
connect to 14PL05 from the keyboard. Connect the scanner mini-DIN plug
to 14SK05 to the machine PC.
14.Lay the MMI cables in a neat order and cable tie in position, leaving enough
slack for the MMI to rotate freely.
15.Connect the System button loom to connector 8PL114. Refit the E Stop
connector to the E Stop and ESD cable to the capacitor fixing point.
16.Refit the right hand corner access panel to the machine and fasten using the
three quick release fasteners.
17.Fit the MMI arm earth cable to the machine upper frame earth point.
Fitting of Auxiliary
Conveyors (HTC
Option)
To fit the left hand auxiliary conveyor, carry out the following procedure:
1. Remove the left hand machine side covers.
INFINITY
EX
TRANSPORTATION
MAJOR RELOCATION
Chapter Issue 3 Jan 04 Technical Reference Manual 31.35
2. Whilst fully supporting the left hand auxiliary conveyor, attach the conveyor
to the machine lower frame attachment points using eight M5 bolts. DO
NOT fully tighten the bolts at this stage.
3. Carry out the following procedure to check the gap between the left hand
auxiliary conveyor rails and the print station rails:
a. Disconnect the two 4mm pneumatic pipe connections to the conveyor
board stop.
b. Loosen and remove the two M5 cap head screws securing the board stop
bracket to the conveyor and remove the bracket and board stop.
c. Using feeler gauges or a 3mm allen key, ensure that the gap between the
print station and the left hand auxiliary conveyor (in two positions) is 3.0
± 0.5mm.
d. If adjustment is required, carefully adjust the position of the conveyor to
obtain the 3.0±0.5mm gap.
e. Tighten the M5 securing bolts fitted in Step 2.
f. Refit the board stop and bracket to the auxiliary conveyor using the two
M5 caphead screws removed in Step 3b. DO NOT fully tighten the
screws.
Board Clamp
Board Transport Rail
Auxiliary Conveyor
Print Station

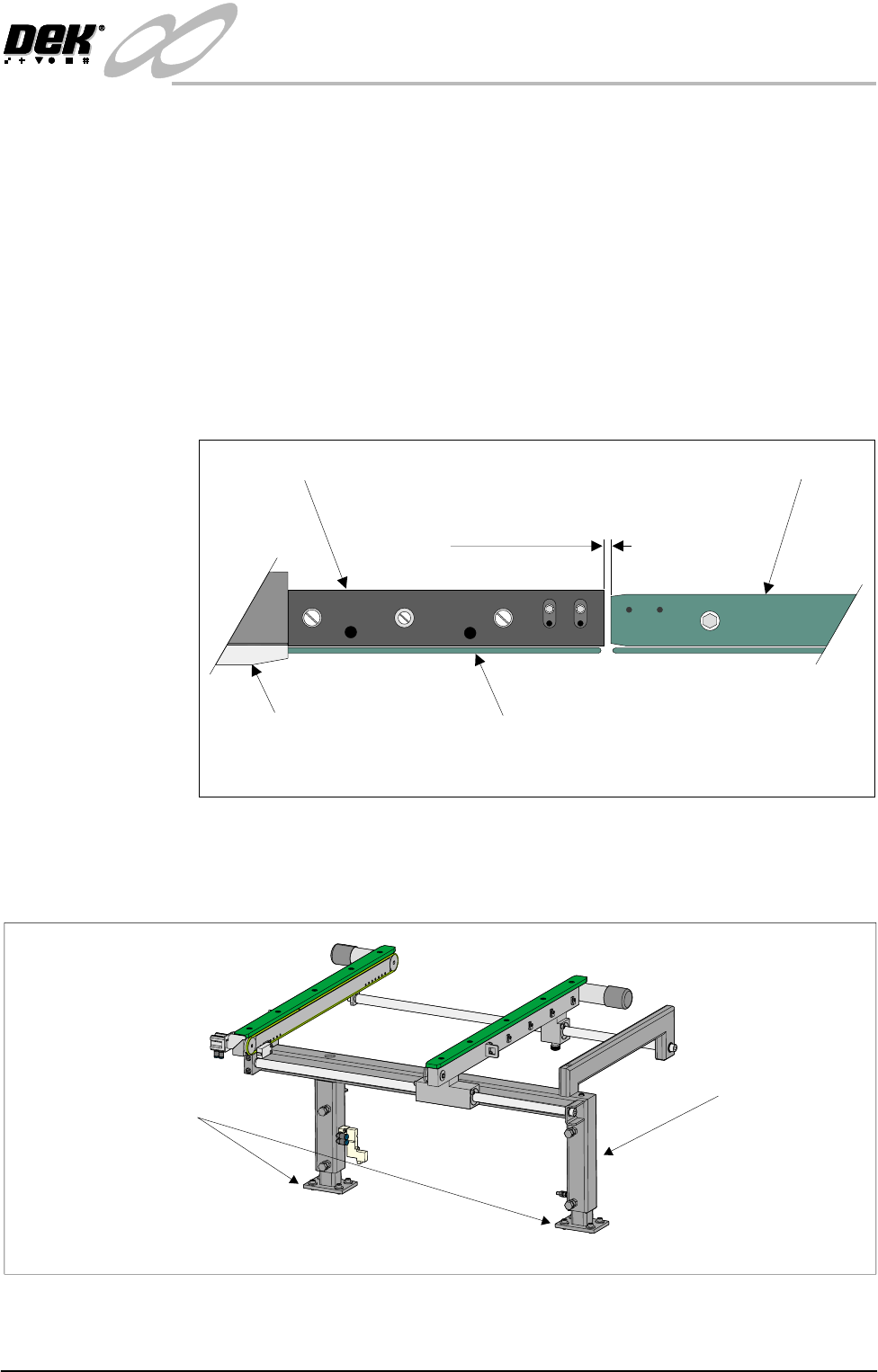

Plan View on Print Station and Auxiliary Rails
5157438
3.0mm +/- 0.5mm
Rear View of Left Auxiliary Conveyor
Left Hand Auxiliary
Conveyor Frame
Conveyor Frame to
Machine Main Frame
(4 bolts in 2 positions)
