4-4 1. Installation Procedure

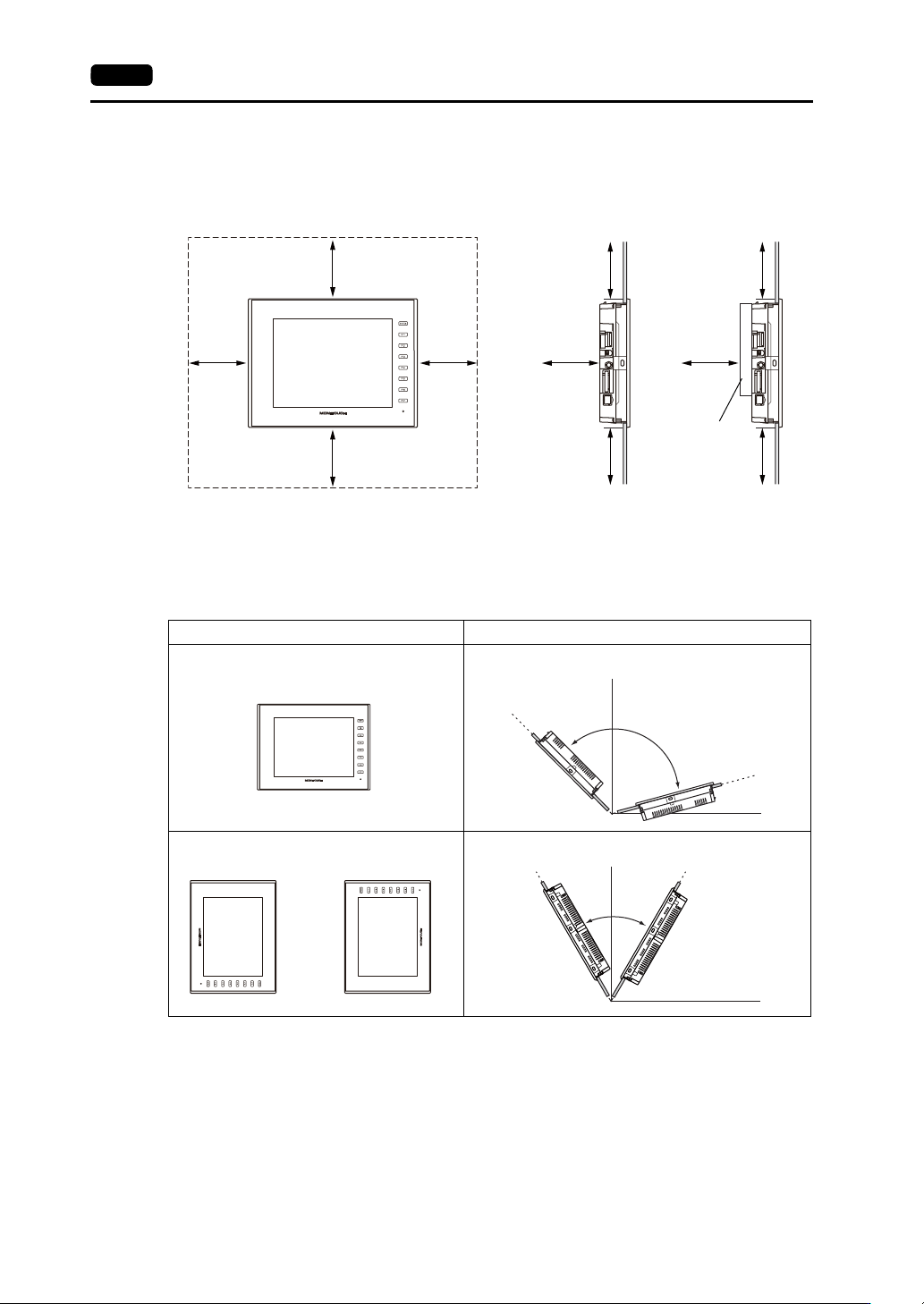

Mounting Spatial Restrictions
Mount the V9 series unit with approximately 100 mm of space around the periphery of the unit.
Mounting Angle
The mounting angle differs depending on the mounting orientation. Mount the unit within the angle
ranges shown in the table below.
* When supplying power externally from a modular jack (MJ1/MJ2) or USB-A, mount the V9 series
unit at an angle between 60 and 120.
Ambient Temperature
Use the V9150 series in an ambient temperature range of 0 °C to +40 °C (wet-bulb temperature of
39 °C or less).
Regarding other models, use in a range of 0 °C to +50 °C (wet-bulb temperature of 39 °C or less).
100 100
100
100 100
100 100
100
100 100
Front view Side view
With communication
I/F unit/optional
units installed
(Unit: mm)
Mounting Orientation Mounting Angle
Upright
0°
135°
90°
15°
D
i
s
p
l
a
y
D
i
s
p
l
a
y
90right
90 left
or
0°
90°
60°120°
D
i
s
p
l
a
y
D
i
s
p
l
a
y
2. Power Supply Cable and Grounding Connections 4-5
4
Installation
2. Power Supply Cable and Grounding
Connections
Power Supply Cable Connection
Connect the power supply cable to the terminal on the backside of the unit.
For information on the specifications of the power supply cable and the tightening torque of the
screws on the power supply terminal block, refer to the following table.
DANGER
There is a risk of electrical shock.
Shut the power off before connecting the power supply cable.
LNFG
＋−
24V DC
FG
＋−
24V DC
FG
100V-240VAC 24VDC 24VDC
＋
−
24V DC
FG
24VDC
Power supply
Grounding
Power supply
Grounding
V9150, V9120, V9100 V910xiW, V9080
Grounding
Power supply
V907xiW
Grounding
Power
supply
V9060iTD
Terminal Screw
Power Supply
Cable
Screw
Size
Tightening
Tor que
Crimp-style Terminal
M3.5
7.1 to 8.8
lbf-in
(0.8 to 1.0
N·m)
AWG16 to 14
3.7 mm
7.1 mm
or less
7.1 mm
or less
3.7 mm
4-6 2. Power Supply Cable and Grounding Connections
Notes on the Power Supply
The power supply must be used within allowable range of voltage fluctuation.
Use a power supply with low noise between cables and between the ground and cables.
Use the thickest power supply cable possible that is twisted to minimize drops in voltage.
Keep power supply cables away from high-voltage, large-current carrying cables.
When using models V9101iW or V9071iW (capacitive type touch panel), use a Class 2 power
supply for a 24-VDC input.
Notes on Usage of the 100 to 240 VAC Specification
The V9 series is an overvoltage category II product.
While the use of an isolating transformer generally improves noise resistance, if the V9 series unit
is a significant distance from the secondary port of the transformer or noise interference occurs
easily, an isolating transformer is ineffective.
If any power voltage fluctuation caused by noise is expected, the use of a voltage stabilizer
(effective for noise resistance) is recommended.
Grounding
An independent grounding must be used for the unit.
Use a grounding cable with a nominal cross section of more than 2 mm
2
.
Set the grounding point near the unit to shorten the distance of grounding cables.
The signal ground (SG) and frame ground (FG) are connected inside the V9150 series unit.
* For models V9101iW and V9071iW (capacitive type touch panel), use independent grounding.
Power supply
Insulation transformer or
stabilized transformer
To V9 series unit
1.25 mm
2
Twist the cables.
CAUTION
Always ground the V9 series.
(The level of grounding resistance should be less than 100 .)
V9 series
unit
Other
equipment
V9 series
unit
Other
equipment
V9 series
unit
Other
equipment
Independent grounding (best)
*
Shared grounding (good) Cross grounding (prohibited)
Grounding resistance:
less than 100
Grounding resistance:
less than 100
