3-14 2. Specifications of Components V907xiW , V9060iTD series *1 The MJ2 sliding switch is on the rear side of the V907xiW , V9060iTD. *2 When the mounting ang le is 15 to 60 , or 12 0 to 135 , the +5 V extern…
3
2. Specifications of Components 3-13
Names and Specifications of Components
Recommended Connector
The following connector is recommended for custom-made cables.
Applications

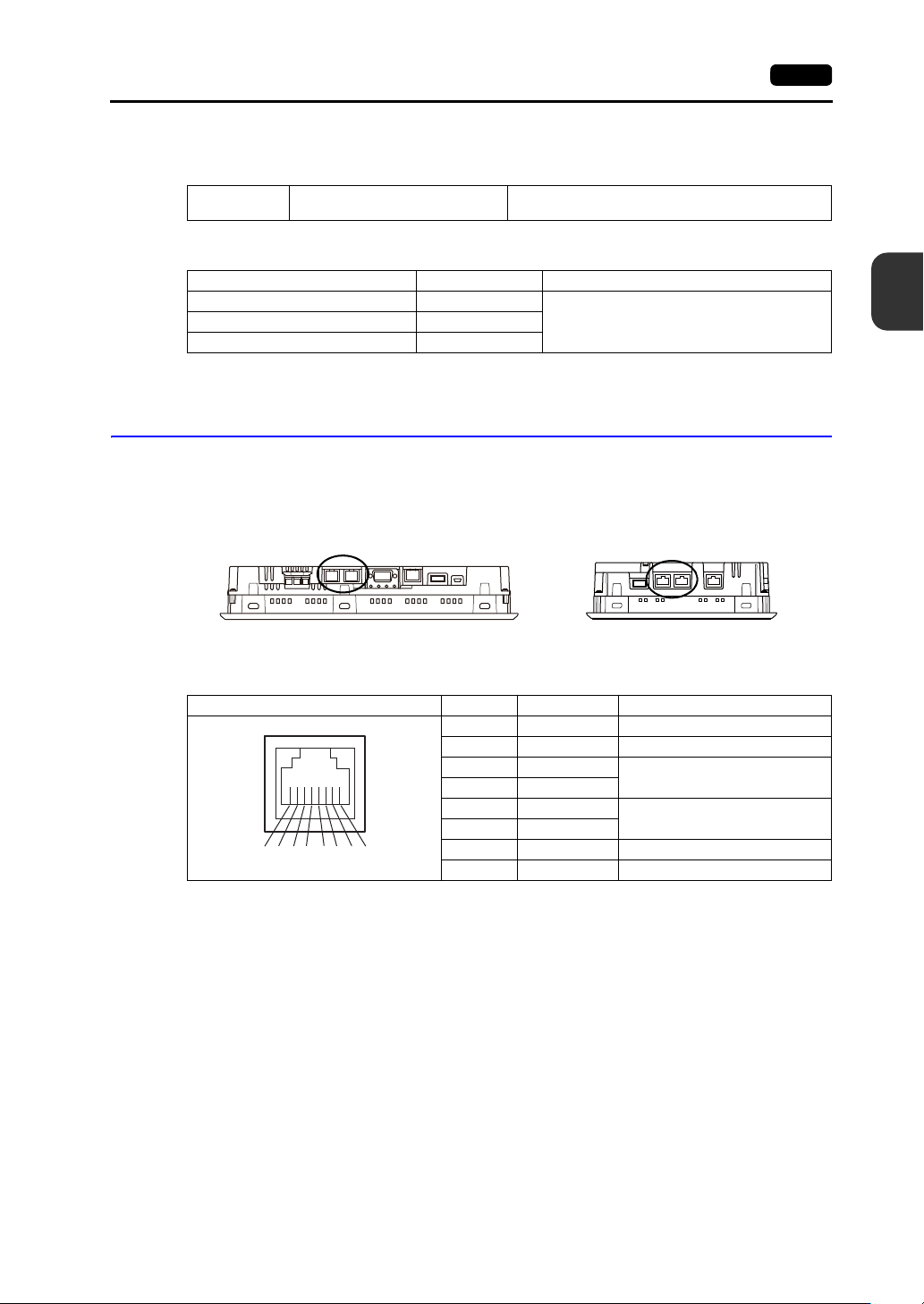

Modular Jack (MJ1/MJ2)
The modular jacks are used for connection to a screen program transfer cable (MJ1 only), temperature
controller, barcode reader, and other devices.
The pins of MJ1 and MJ2 correspond to the signals as shown below.
V9150, V9120, V9100, V910xiW, V9080 series
*1 When the mounting angle is 15 to 60, or 120 to 135, the +5 V external power supply at MJ1/MJ2 of the V9
series unit is impossible.
*2 Allowable current for the +5 V external power supply at MJ1/MJ2 of the V9 series unit
For MJ1 and MJ2, the maximum allowable current is 150 mA in total (only when the mounting angle is 60 to
120).
Recommended
Connector
17JE-23090-02(D8C)-CG
manufactured by DDK
D-sub 9-pin / male / inch screw thread (#4-40UNC) type
/ with hood / lead and cadmium free
Application V-SFT-6 Setting Refer to
PLC/temperature controller connection Required
V9 Series Connection ManualBarcode reader connection Required
Multi-link/Multi-link2 communication Required
Bottom view Bottom view
V9100 V907xiW
MJ1/2 Pin No. Signal Description
1 +SD/RD RS-485 + data
2 SD/RD RS-485 data
3+5 V
Externally supplied +5 V
*1
*2
4+5 V
5SG
Signal ground
6SG
7 RD RS-232C receive data
8 SD RS-232C send data
8 76 5 43 21
3-14 2. Specifications of Components
V907xiW, V9060iTD series
*1 The MJ2 sliding switch is on the rear side of the V907xiW, V9060iTD.
*2 When the mounting angle is 15 to 60, or 120 to 135, the +5 V external power supply at MJ1/MJ2 of the V9
series unit is impossible.
*3 Allowable current for the +5 V external power supply at MJ1/MJ2 of the V9 series unit
For MJ1 and MJ2, the maximum allowable current is 150 mA in total (only when the mounting angle is 60 to
120).
Applications
*1 The ladder transfer function cannot be used simultaneously with 1:n communication (multi-drop) or multi-link
communication.
MJ1/2
Pin No.
MJ1 MJ2
Signal Description
Sliding
Switch
*1
Signal Description
1 +SD/RD RS-485 + data
Up +SD/RD RS-485 + data
Down +SD RS-422 + send data
2 -SD/RD RS-485 - data
Up -SD/RD RS-485 - data
Down -SD RS-422 - send data
3+5V
Externally supplied
+5 V
*2
*3
-
+5V
Externally supplied
+5 V
*2
*3
4+5V +5V
5SG
Signal ground
SG
Signal ground
6SG SG
7 RD RS-232C receive data
Up RD RS-232C receive data
Down +RD RS-422 + receive data
8 SD RS-232C send data
Up SD RS-232C send data
Down -RD RS-422 - receive data
8 76 5 43 21
Rear view
Sliding switch (Upon delivery: Up)
Up: RS-232C, RS-485 (2-wire connection)
Down: RS-422 (4-wire connection)
Example: V907xiW
Application V-SFT-6 Setting Refer to
PLC/temperature controller connection Required
V9 Series Connection ManualBarcode reader connection Required
Multi-link/Multi-link2 communication Required
Ladder transfer function
*1
Required V9 Series Reference Manual 2
Screen program transfer Not required V9 Series Operation Manual
Printer connection Required V9 Series Reference Manual 1
3
2. Specifications of Components 3-15
Names and Specifications of Components
USB-A (Master Port)
This connector is used to connect a printer, USB flash drive, barcode reader, keyboard, mouse, or
USB hub. The USB-A port of the V9 unit complies with USB version 2.0.
Applications
USB Flash Drives
A USB flash drive can be connected to the V9 series unit to perform operations including screen
program transfers or saving of log data.
Connection Example
USB Flash Drive Specifications
The type of USB flash drives that can be used with the V9 series are shown below.
V-SFT-6 Setting
Required settings vary according to the application.
For more information, refer to V9 Series Reference Manual 2.
Bottom view Bottom view
V9100 V907xiW
Enlarged view
Application V-SFT-6 Setting Refer to
Printer connection Required V9 Series Reference Manual 1
USB flash drive connection Required See page 3-15.
Barcode reader connection Required V9 Series Connection Manual 3
Keyboard/numeric keypad connection Required See page 3-16.
Mouse connection Not required See page 3-17.
USB hub connection Not required See page 3-18.
Storage Capacity File System
USB flash drive 32 GB max. FAT, FAT32
USB-A
V9
USB flash drive
