3-10 1. Names and Functions of Components

1. Display

This is the display area.

2. Function switches

There are 6 function switches comprising the [SYSTEM] switch and [F1] to [F5] switches.

The [SYSTEM] switch is used to display or hide the system menu (for switching between the RUN

and Local modes, adjusting brightness, etc.).

Switches [F1] to [F5] can be used as user switches in RUN mode.

3. POWER lamp

This lamp illuminates green when the V9 series is powered ON and operating normally.

The lamp flashes when there is a failure (circuit board failure, power supply failure).

4. SD card access LED

This LED flashes when the unit is reading from or writing to an SD card.

5. SD card slot (SD)

This slot is where an SD card can be inserted.

6. Battery holder

This part contains the backup battery for the SRAM and clock.

When the battery voltage drops, replace the battery with a new one.

7. Communication interface unit connector (EXT1)

This connector is used to connect the optional “DUR-00” unit or any “CUR-xx” communication

interface unit (for SX-BUS, OPCN-1, T-Link, CC-Link, Ethernet, PROFIBUS-DP, DeviceNet, and

FL-net).

* The “DUR-00” and “CUR-xx” cannot be used at the same time.

14 15 16 17

V9060iTD

V9060iTD+DUR-00

19 20

1. Names and Functions of Components 3-11

Names and Specifications of Components

8. USB cable clamp hole

This clamp hole is used to attach a USB cable tie.

9. USB mini-B (U-B)

This port is used for transferring screen programs or connecting a PictBridge-compatible printer.

10. Fall prevention tabs

These tabs prevent the V9 series unit from falling off the mounting panel until the mounting fixtures

are tightened.

11. DIP switches

This 8-bit DIP switch is used for setting the terminating resistance of the MJ1/MJ2 RS-485 signal

line.

12. Sliding switch

This switch is for selecting the RS-232C/RS-485 signal (2-wire connection) or the RS-422 signal

(4-wire connection) for MJ2. The upper side is for the RS-232C/RS-485 signal (2-wire connection)

and the lower side is for the RS-422 signal (4-wire connection).

13. Power supply terminal block

This terminal block is for supplying power (24 VDC) to the V9 series unit.

14. USB-A (U-A)

This port is used to connect a printer, USB flash drive, keyboard, or mouse.

15. Modular jack 1 (MJ1)

This connector is used for screen program transfer and connection with PLCs or other peripheral

devices.

16. Modular jack 2 (MJ2)

This connector is used for connection with PLCs or other peripheral devices.

17. 100BASE-TX/10BASE-T connector (LAN)

This connector is used for Ethernet communication.

18. Mounting holes

The mounting holes are used for inserting fixtures when securing the V9 series unit to a mounting

panel.

19. DIP switches (optional “DUR-00” unit)

These switches are used for setting the terminating resistance of the CN1 signal line.

20. PLC communication connector (CN1) (optional “DUR-00” unit)

This connector is used for connection to a controller (PLC, temperature controller, inverter, etc.).

21. FG terminal (FG) (optional “DUR-00” unit)

This is used for connecting FG wire of the communication cable.

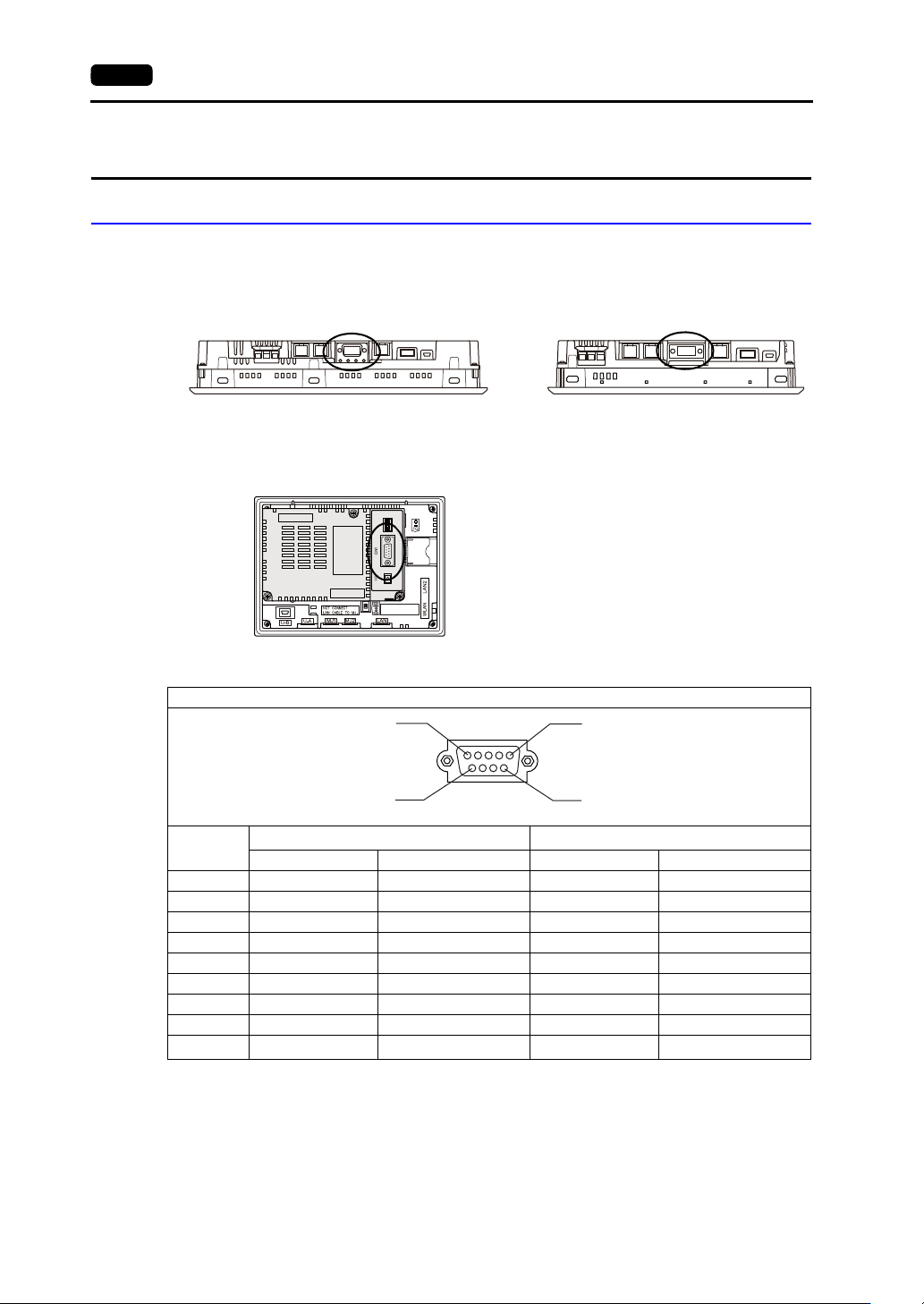

3-12 2. Specifications of Components

2. Specifications of Components

Serial Connector (CN1)

This connector is used to connect a controller or barcode reader via RS-232C, or connect a controller

via RS-422/485.

For the V907xiW/V9060iTD, attach the optional “DUR-00” unit to add this serial connector.

The serial connector pins correspond to the signals as shown below.

*1 The signal level can be changed between RS-232C and RS-422/485 in the configuration software.

When RS-232C is selected, set DIP switches 5 and 7 to the OFF position.

(For details on DIP switches, refer to “DIP Switches (DIPSW)” (page 3-30).)

*2 When RS-422/485 is selected, +5 V is output from pin No. 9.

This +5 V is used as the power supply for the external terminating resistance when performing RS-422/485

communication. It cannot be used as an external power supply.

Bottom view Bottom view

 V9100  V9080

Rear view

 V907xiW

CN1 (D-sub 9-pin, female)

Pin No.

RS-232C

RS-422 / RS-485

Signal Description Signal Description

1 NC Not used + RD Receive data (+)

2 RD Receive data  RD Receive data ()

3 SD Send data SD Send data ()

4 NC Not used + SD Send data (+)

5 SG Signal ground SG Signal ground

6 NC Not used + RTS Request to send (+)

7 RTS Request to send  RTS Request to send ()

8 CTS Clear to send NC Not used

9 NC Not used + 5 V

Use prohibited
