2. Models and Peripheral Equipment 1-7
Product Outline

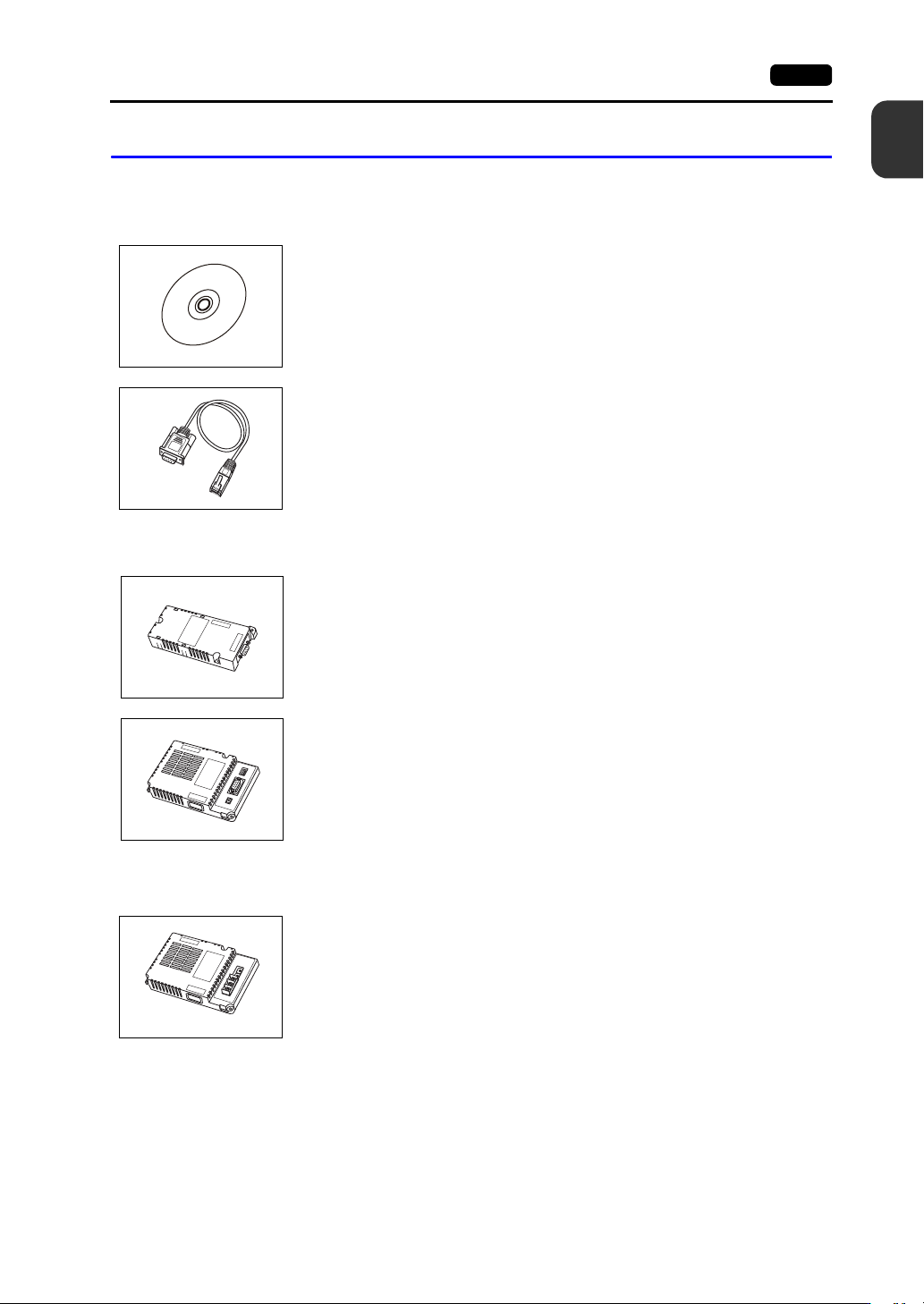

Peripheral Equipment
The following software and equipment are available as options for the V9 series.
Drawing Tool
V-SFT-6 (configuration software)
Application software for editing MONITOUCH screen programs.
Supported OS:
Windows XP, XP 64 Edition, Vista (32-bit, 64-bit), 7 (32-bit, 64-bit), 8 (32-bit, 64-bit),
8.1 (32-bit, 64-bit), 10 (32-bit, 64-bit)
V-CP (screen program transfer cable) 3 m
A cable used for connecting the V9 series unit to a computer.
Optional Units
GUR-xx
Optional units for the V910xiW and Standard models.
GUR-00 Video input 4CH
GUR-01 RGB input 1CH
GUR-02 RGB output 1CH
GUR-04 Video input 1CH
GUR-10 Video input 2CH and RGB input 1CH
GUR-11 RGB input 2CH
DUR-00
Optional unit for the V907xiW/V9060iTD.
Supports D-sub 9-pin connectors.
* This unit cannot be used together with a “CUR-xx” communication interface unit.
FG
CN1
Communication Interface Unit
CUR-xx
Communication units used for connecting to networks.
* These units cannot be used together with the optional “DUR-00” unit.
CUR-00 OPCN-1
CUR-01 T-Link
CUR-02 CC-Link
CUR-03 Ethernet
CUR-04 PROFIBUS-DP
CUR-06 SX-BUS
CUR-07 DeviceNet
CUR-08 FL-net
T1
T2
SD
x10
x1
1-8 2. Models and Peripheral Equipment

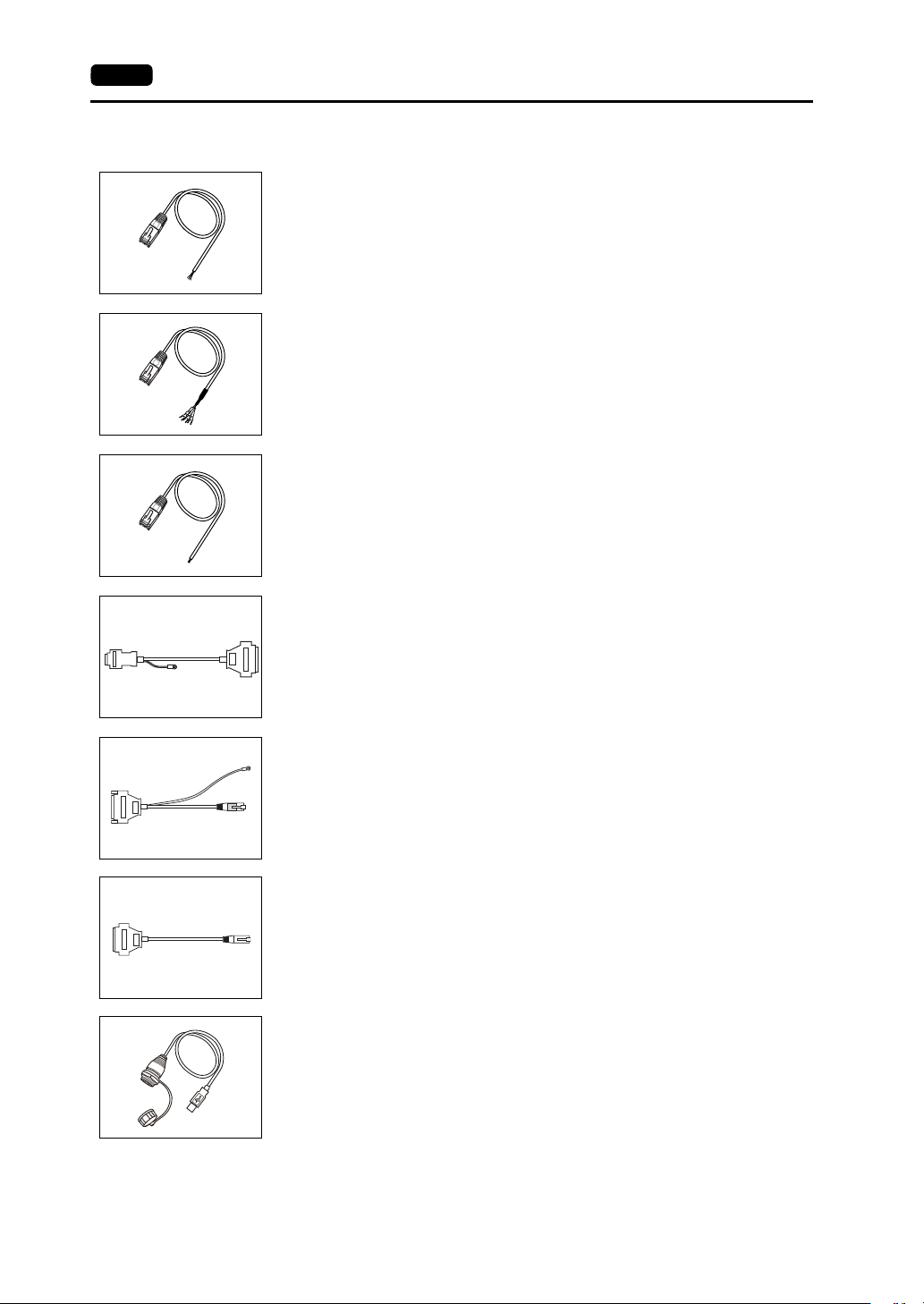

Cables
V6-BCD (barcode reader connection cable) 3 m
A cable used for connecting a barcode reader unit to the V9 series.
V6-MLT (multi-link2 master cable) 3 m
A cable used for multi-link2 connection between a V9 master station and V9 slave station.
V6-TMP (connection cable for controllers)
A cable used for connecting the V9 series unit to a controller.
V6-TMP: 3 m
V6-TMP-5M: 5 m
V6-TMP-10M: 10 m
D9-D25 (D-sub 9-pin-to-25-pin conversion cable) 0.3 m
A conversion cable used for connecting the communication cable for the CN1 (D-sub 25-pin)
of the V6/V7 series to the CN1 (D-sub 9-pin) of the V9 series.
MJ2-PLC (MJ2-to-D-sub conversion cable) 0.3 m
Used for connection with V9 series (MJ1/MJ2) on RS-232C, or V907xiW/V9060iTD (MJ2) on
RS-422 (4-wire).
The cable is used with the communication cable for CN1 (D-sub 25 pin) of the V6/V7 series.
* When connecting between V9 series (MJ1/MJ2) and a PLC on RS-485 (2-wire),
you can use MJ-D25. (See the following item.)
MJ-D25 (MJ-to-D-subconversion cable) 0.3 m
Used for connection with V9 series (MJ1/MJ2) on RS-232C or RS-485 (2-wire).
The cable is used with the communication cable for CN1 (D-sub 25 pin) of the V6/V7 series.
UA-FR (for USB-A port) 1 m
A cable for USB-A (master) that allows connection from the front of the control cabinet.
1
2. Models and Peripheral Equipment 1-9
Product Outline

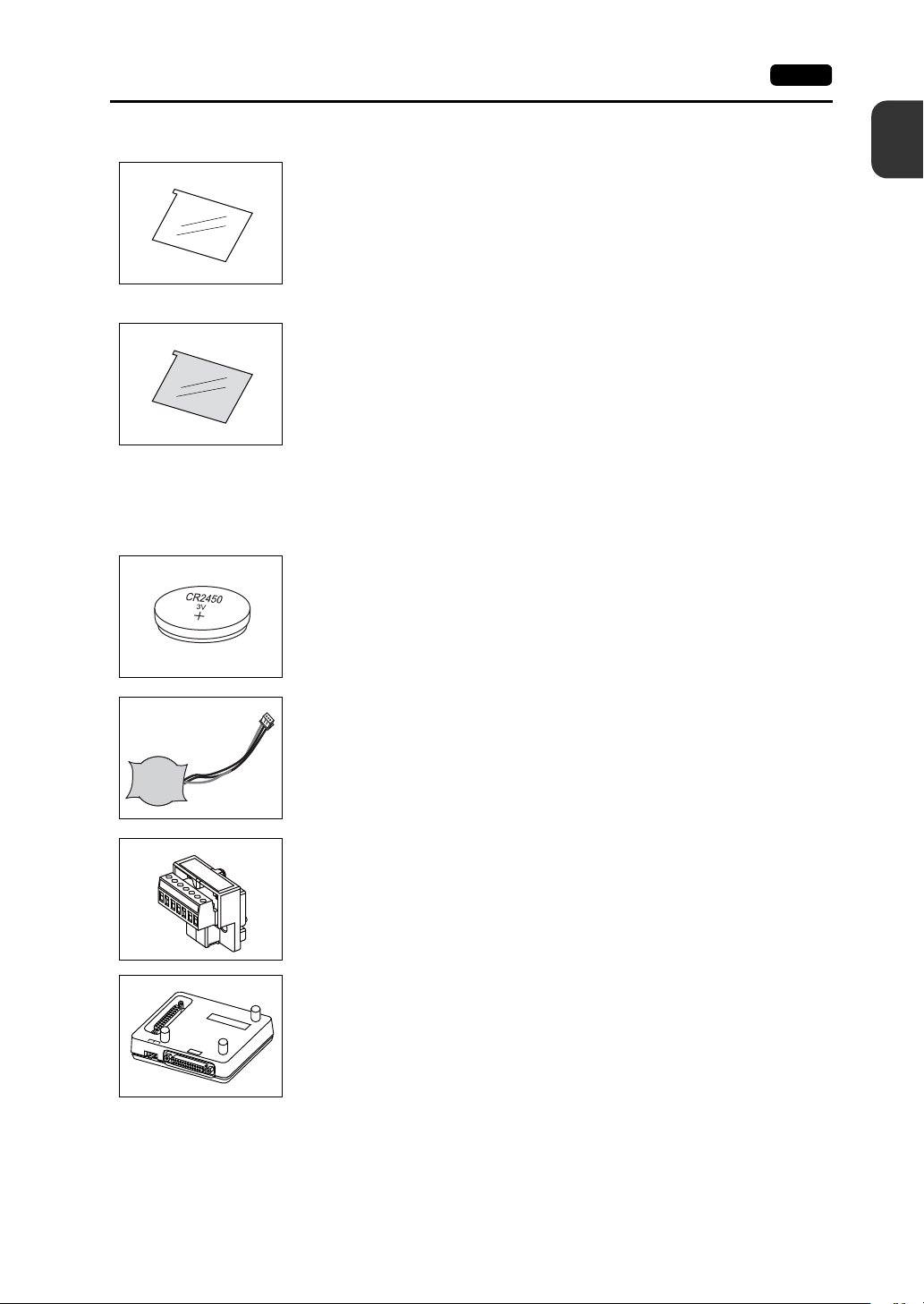

Protective Sheets
V9xxx-GS
A sheet used for protecting the operation panel surface (5 pcs./set).
V715-GS V9150, V815, V715 series
V912S-GS V9120 series
V910S-GS V9100 series
V910W-GS V9100iW (analog resistive film type touch panel)
*
V908S-GS V9080 series
V907W-GS V9070iW (analog resistive film type touch panel)
*
V906T-GS V9060iTD
* This sheet cannot be used for the V9101iW/V9071iW (capacitive type touch panel).
V9xxx-GSN10
A sheet used for protecting the operation panel surface (5 pcs./set, anti-glare treatment).
The sheet is colored light gray and the graininess on its surface prevents light reflection.
V715-GSN10 V9150, V815, V715 series
V912S-GSN10 V9120 series
V910S-GSN10 V9100 series
V910W-GSN10 V9100iW (analog resistive film type touch panel)
*
V908S-GSN10 V9080 series
V907W-GSN10 V9070iW (analog resistive film type touch panel)
*
V906T-GSN10 V9060iTD
* This sheet cannot be used for the V9101iW/V9071iW (capacitive type touch panel).
Other Options
V9-BT (replacement battery)
A replacement lithium battery for the V9150/V9120/V9100/V910xiW/V9080 series.
V7-BT (replacement battery)
A replacement lithium battery for V907xiW and V9060iTD.
TC-D9 (terminal converter)
This converter is used for connection between the V9 series unit and a controller at the
RS-422/485 terminal block via CN1 (D-sub 9-pin).
V-MDD (ACPU/QnACPU/FXCPU dual port interface)
An add-on connector with two ports and specifically designed for the connector on
MITSUBISHI ACPU/QnACPU/FXCPU controllers. It is convenient to use this connector
when directly connecting the V9 series unit to a ACPU/QnACPU/FXCPU controller.
+5V
SG
+SD
-SD
+RD
-RD
FG
GD
GPP
V
-
M
D
D
1 2 3
