3-30 2. Specifications of Components
DIP Switches (DIPSW)
V9150, V9120, V9100, V910xiW, V9080 Series
The V9 series unit is equipped with DIP switches 1 to 8. Turn OFF power to the unit before changing
any DIP switches.
Upon delivery, all DIP switches are set to OFF.
* Only for V910xiW
DIPSW1 (Storage Automatic Upload)
Set DIPSW1 to ON to automatically upload screen programs from a storage device such as an SD
card or USB flash drive.
Procedure
1. Preparation of storage
Use the V-SFT-6 editor to load a screen program onto a storage device.
(For the loading procedure, refer to the V9 Series Reference Manual 2.)
2. Connection of storage
Turn OFF power to the V9 series unit and connect the storage device (insert an SD card or
connect a USB flash drive to the USB-A port).
3. DIP switch settings
Slide DIPSW1 upward to the ON position.
4. Automatic upload start
Turn ON power to the V9 series unit. The screen program is automatically loaded into the flash
memory of the V9 series unit.
* When not using automatic upload, always set DIPSW1 to OFF.

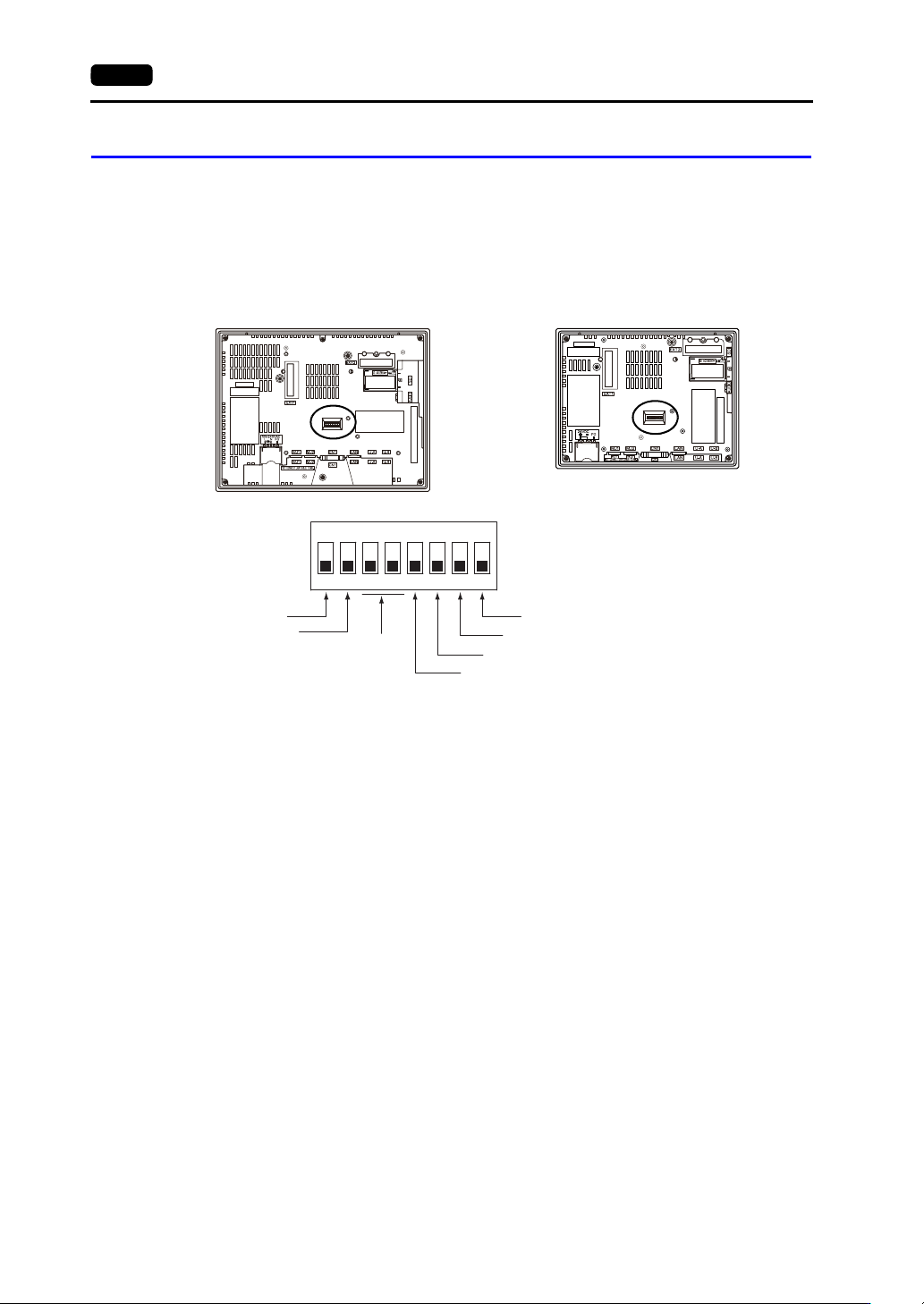

Rear view Rear view
V9100 V9080
ON
12345678
CN1: +RD/-RD terminating resistance at pins 1 and 2
MJ1 (modular jack 1): terminal resistance
MJ2 (modular jack 2): terminal resistance
Not used
CN1: +SD/-SD terminating resistance at pins 3 and 4
Storage
automatic upload
Display of touch
switch test screen
*
3
2. Specifications of Components 3-31
Names and Specifications of Components
DIPSW2 (Display of Touch Switch Test Screen) For V910xiW Only
Set DIPSW2 to ON to check if touch switches are functioning properly.
* Touch switch adjustment is available for the V9100iw (analog resistive film type)
For more information on touch switch adjustment, refer to the V9 Series Troubleshooting/Maintenance Manual.
Procedure
1. DIP switch settings
Slide DIPSW2 upward to the ON position.
2. Display of initial touch switch adjustment screen
Turn ON power to the V9 series unit. The touch switch test screen is displayed.
Check if touch switches are functioning properly.
* When not using the test, always set DIPSW2 to OFF.
DIPSW3, 4 (Not Used)
Set these DIP switches to OFF.
DIPSW5, 6, 7, 8 (Terminating Resistance Setting)
When connecting a controller to CN1 via RS-422/485 (2-wire connection), set DIPSW7 to the ON
position.
When connecting a controller to CN1 via RS-422/485 (4-wire connection), set DIPSW5 and 7 to
the ON position.
For the following connections to modular jack 1 or 2, set DIPSW6 or 8 to the ON position.
- Connection to a controller (PLC, temperature controller, etc.) via RS-485
- Connection to the V9 series unit at the termination of V-link connection via RS-485
CAUTION
When connecting a controller to CN1 via RS-232C, set DIPSW5 and 7 to the OFF
position.
3-32 2. Specifications of Components
V907xiW, V9060iTD Series
The V9 series unit is equipped with DIP switches 1 to 8. Turn OFF power to the unit before changing
any DIP switches.
Upon delivery, all DIP switches are set to OFF.
* Only for V907xiW
DIPSW1 (Storage Automatic Upload)
Set DIPSW1 to ON to automatically upload screen programs from a storage device such as an SD
card or USB flash drive.
Refer to “DIP Switches (DIPSW)” (page 3-30) for the procedure.
DIPSW2 (Display of Touch Switch Test Screen) Only for V907xiW.
Set DIPSW2 to ON to check if touch switches are functioning properly.
Refer to “DIPSW2 (Display of Touch Switch Test Screen) For V910xiW Only” (page 3-31) for the
procedure.
* Touch switch adjustment is available for the V9070iW (analog resistive film type).
For details on touch switch adjustment, refer to the V9 Series Troubleshooting/Maintenance Manual.
DIPSW 3, 4, 5 (Not Used)
Set these DIP switches to OFF.
DIPSW 6, 7, 8 (Terminating Resistance Setting)
Connection at MJ1 via RS-232C and RS-485 (2-wire connection) is possible. Turn DIPSW6 to ON
for the following situations.
- Master station for multi-link2 connection
- Connection to a controller (PLC, temperature controller, etc.) via RS-485
- At the termination of V-link connection via RS-485
Connection at MJ2 via RS-232C, RS-422 (4-wire connection), or RS-485 (2-wire connection) is
possible.
When connecting via RS-485 (2-wire connection), set DIPSW8 to ON. When connecting via
RS-422 (4-wire connection), set DIPSW7 and 8 to ON.
Rear view
V907xiW
Rear view
V9060iTD
ON
12345678
Storage automatic upload
MJ2 (modular jack 2):
+SD/-SD terminating resistance
MJ1 (modular jack 1): terminal resistance
MJ2 (modular jack 2):
+RD/-RD terminating resistance
Not used
Display of touch switch test screen
*
